Automatic Winged Snowplow
- Blade Width: 8'7"-9'8"
- Fits: Truck Class 2-5 & Skid-Steers
- Moldboard: Powder-Coated Steel
SMART PLOWING. SIMPLE OPERATION.

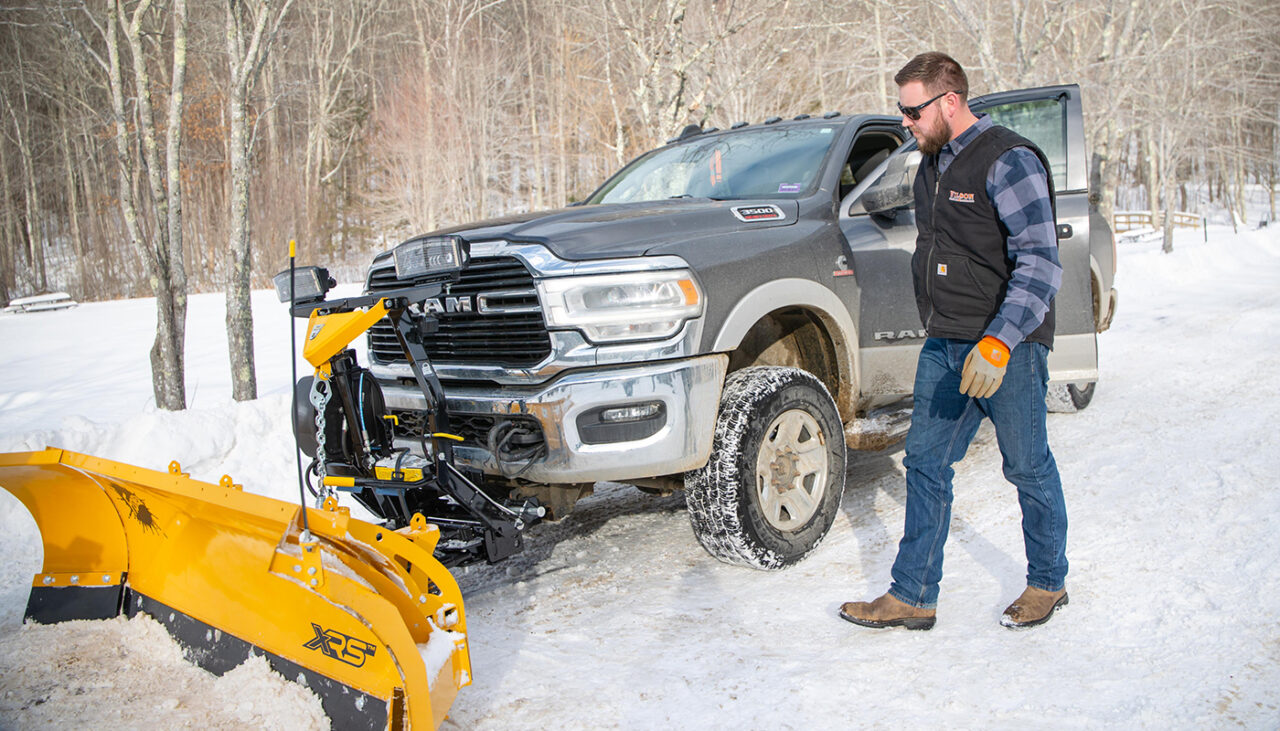

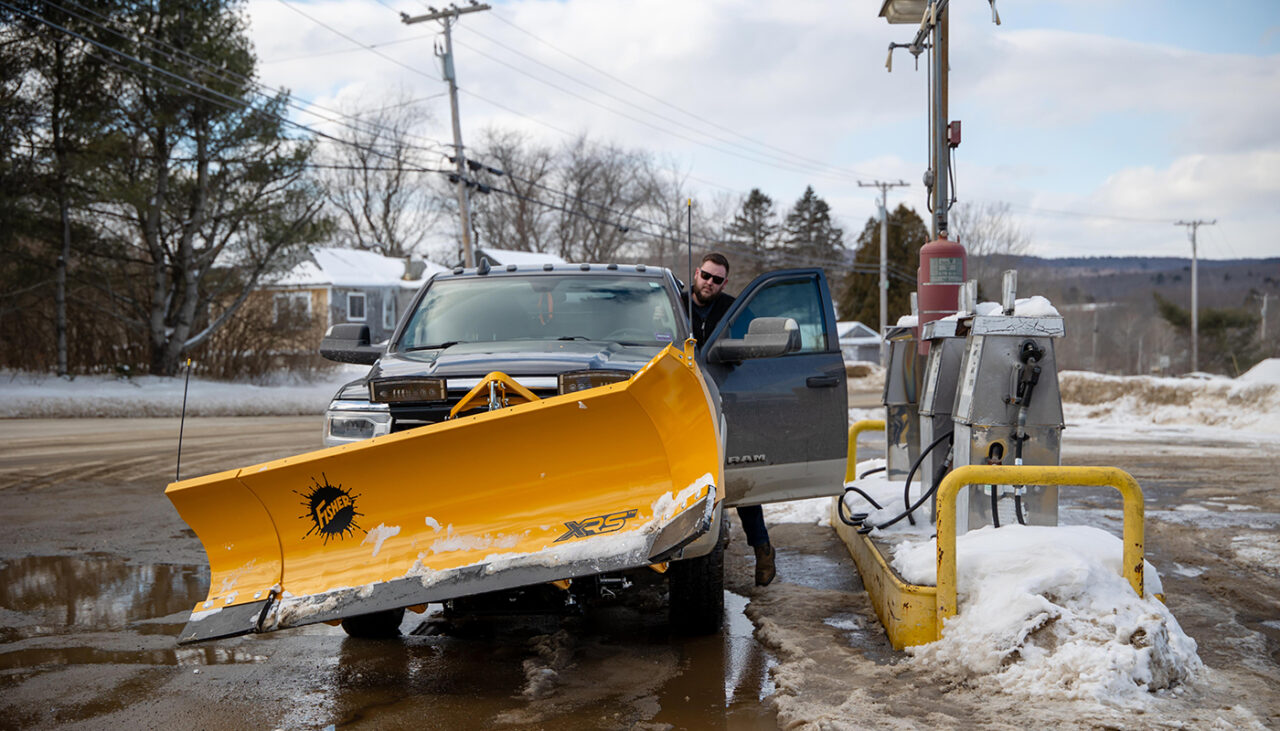

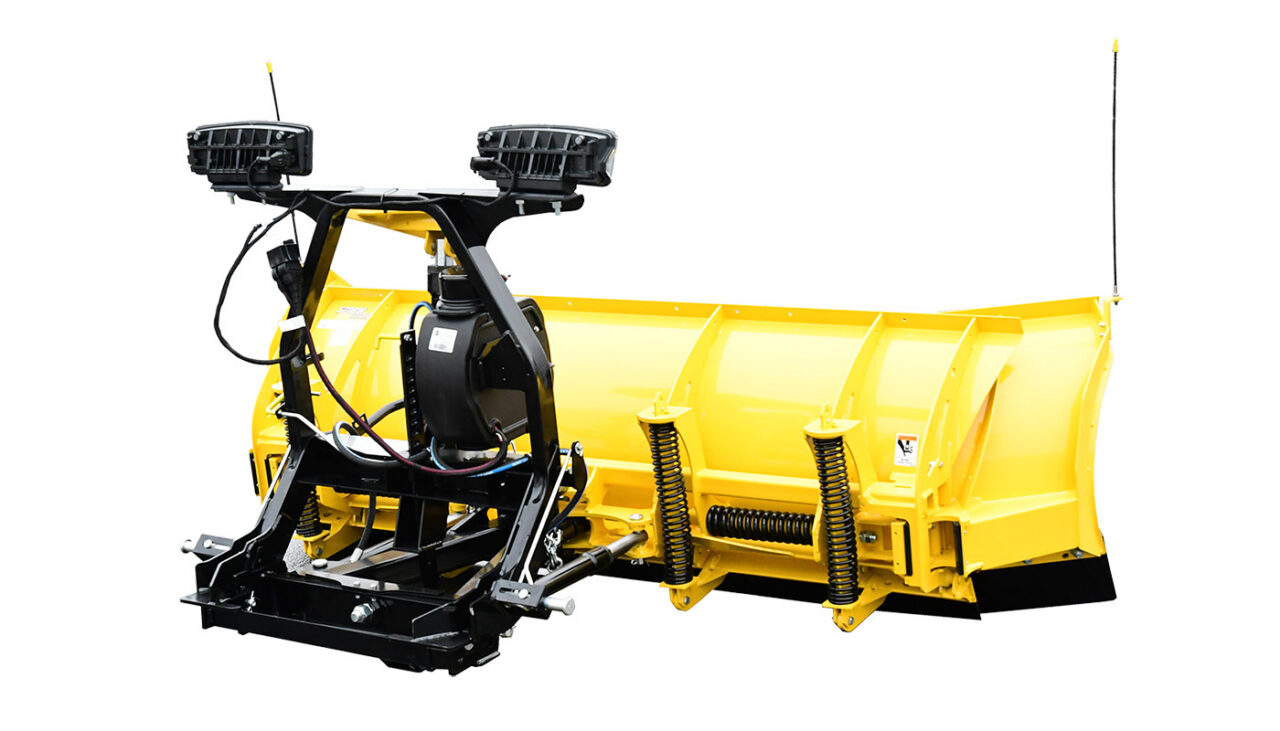

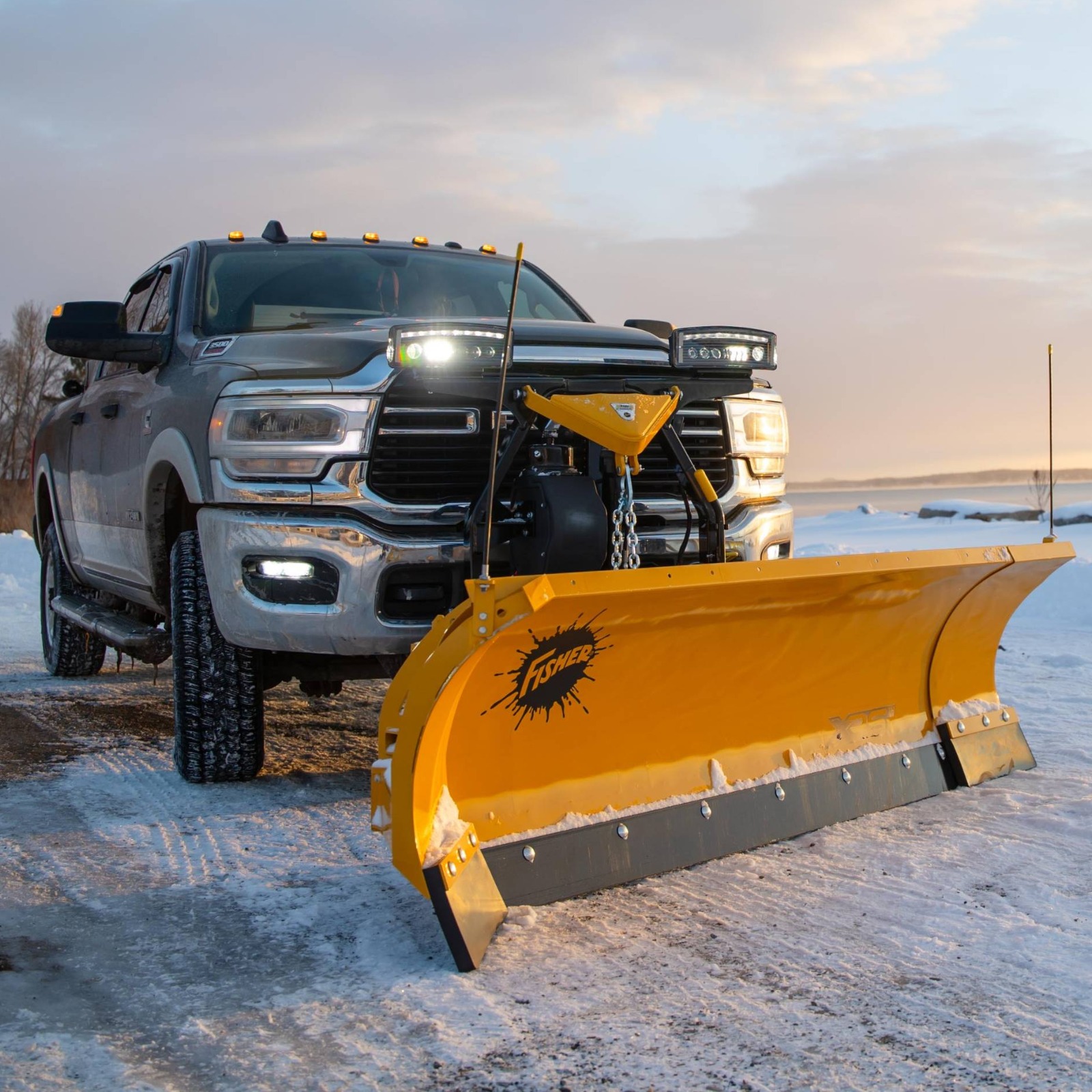

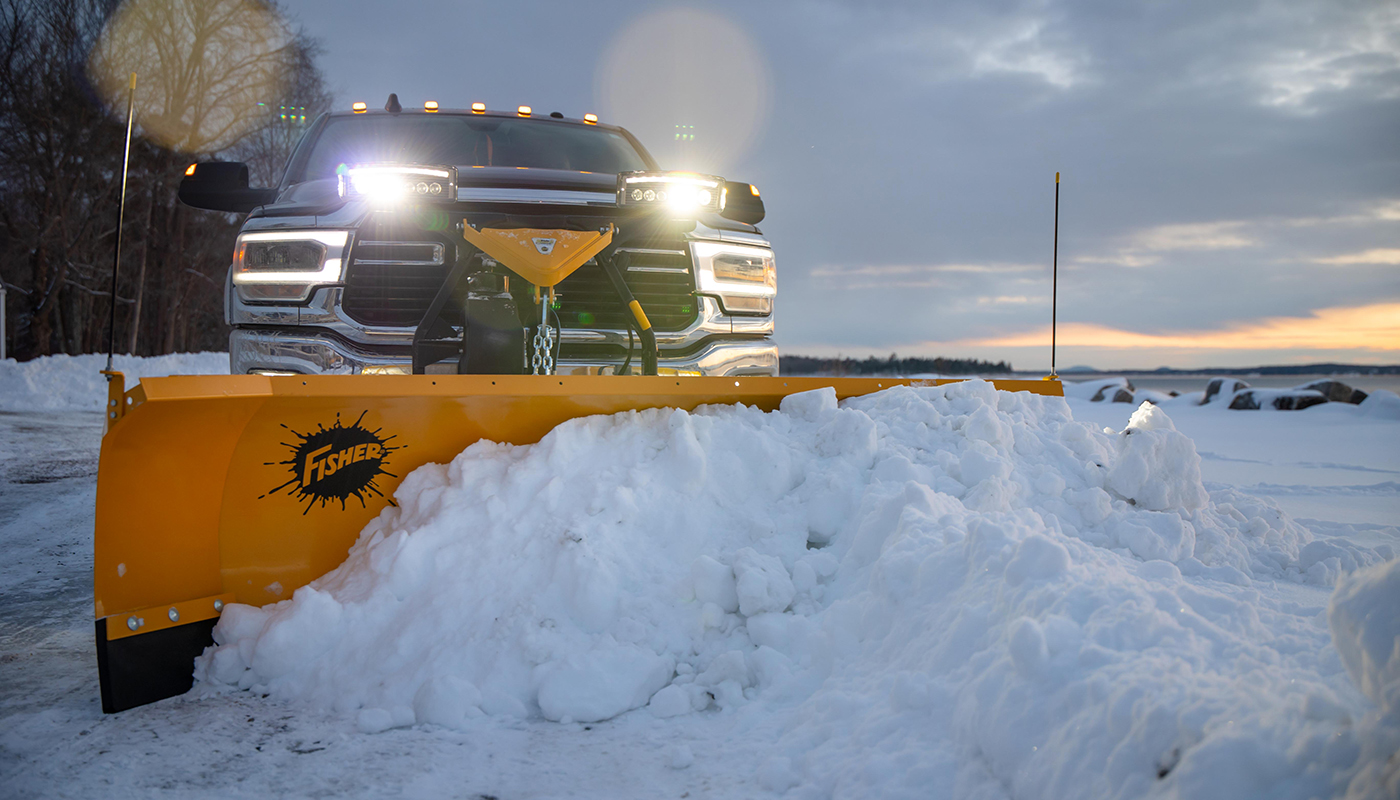

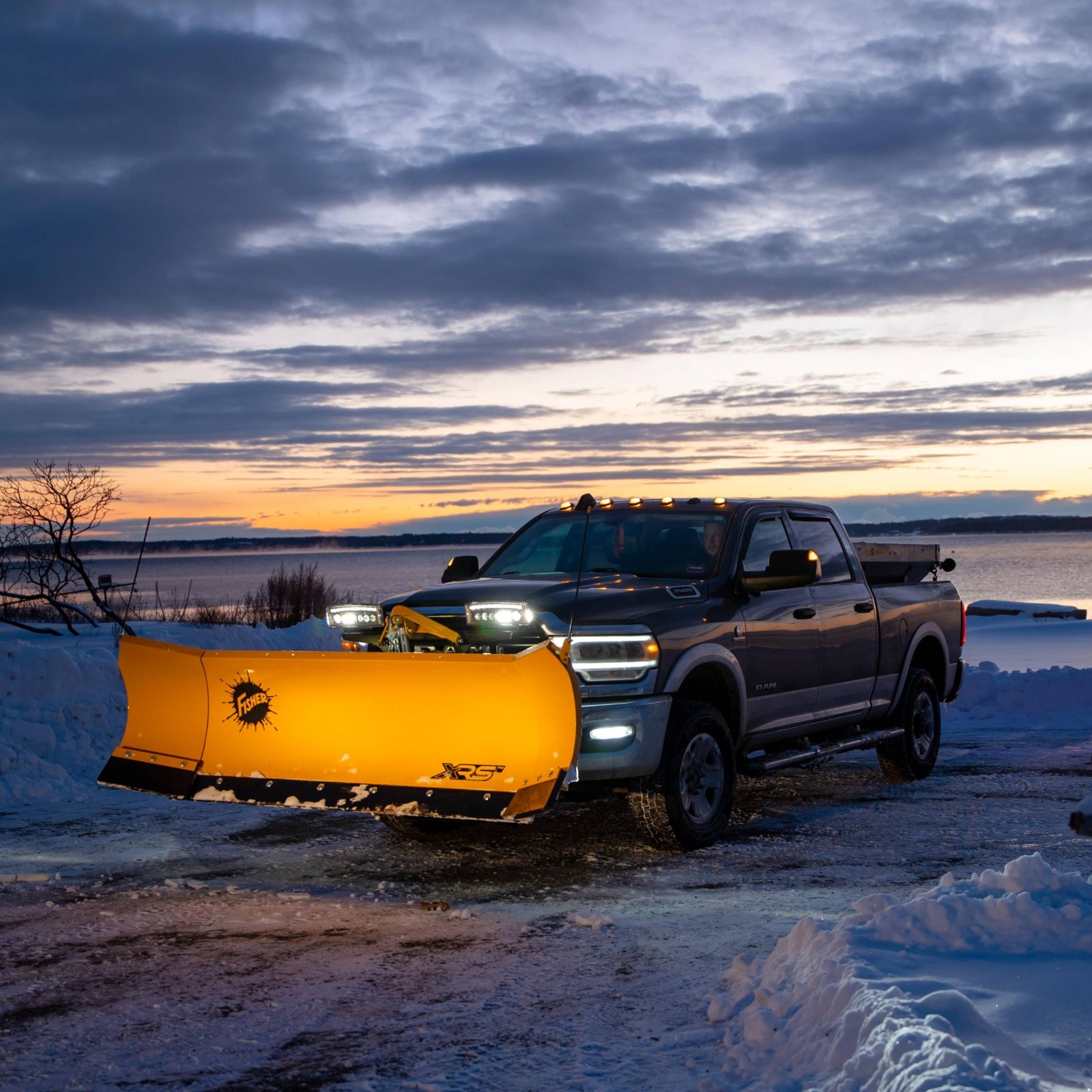

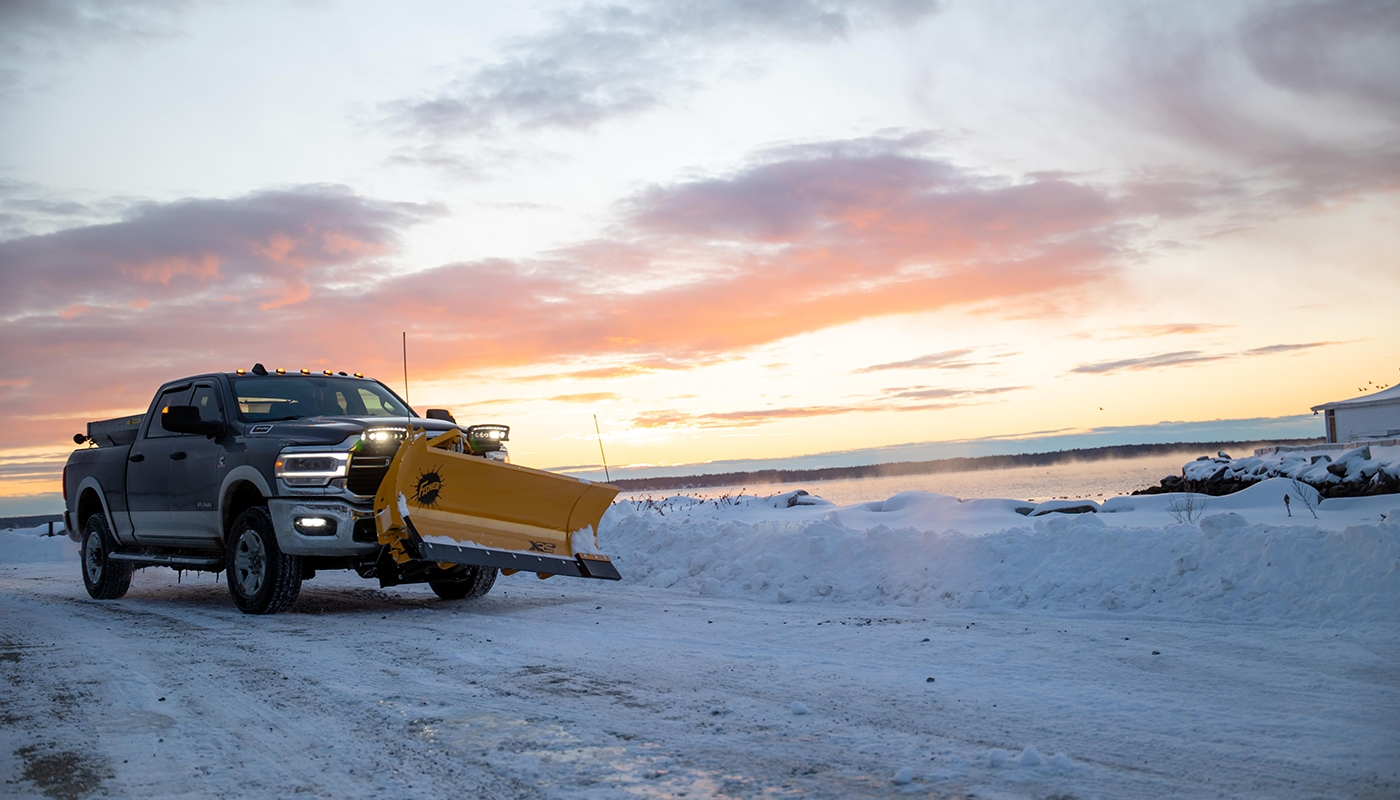

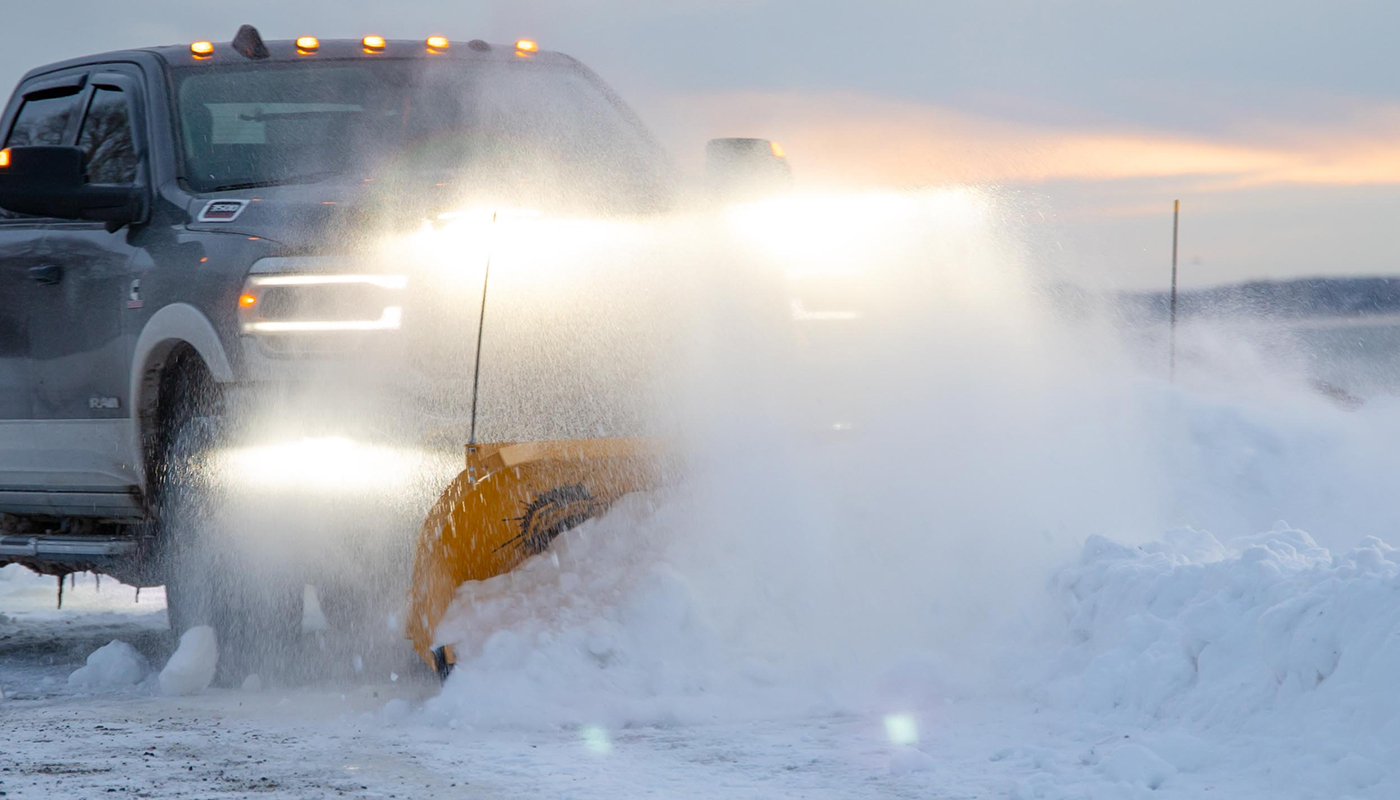

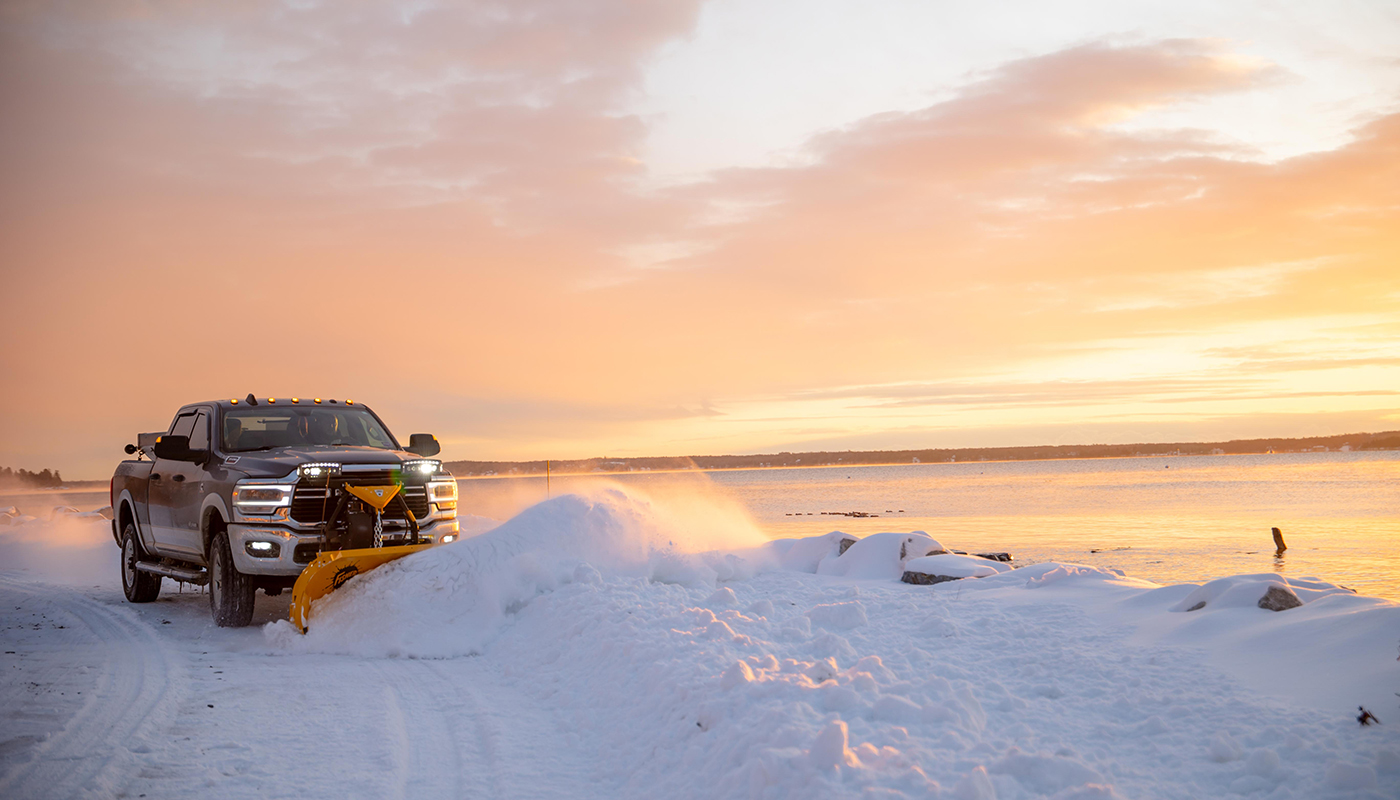

The FISHER® XRS™ automatic wing plow delivers adaptable snow removal power through both truck-mounted and skid-steer configurations, emphasizing user-friendly operation. The truck-mounted automatic wing plow simplifies complex maneuvers with automated wing placement and oscillation, allowing even novice operators to achieve optimal performance. Automatically retracting the inside wing when fully angled and then returning to scoop position once straight, the plow ensures the wings are in the optimal position for the task at hand.

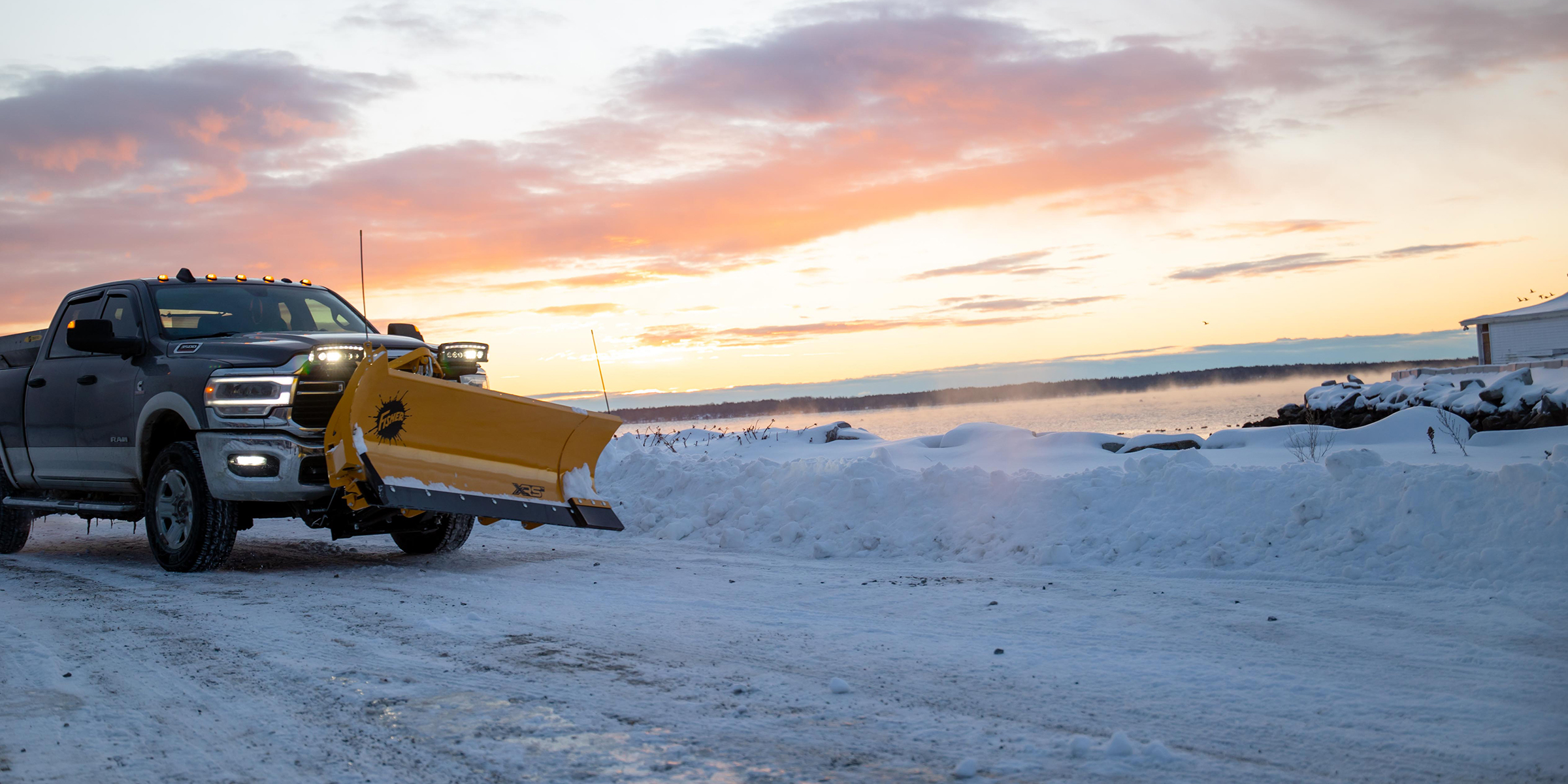

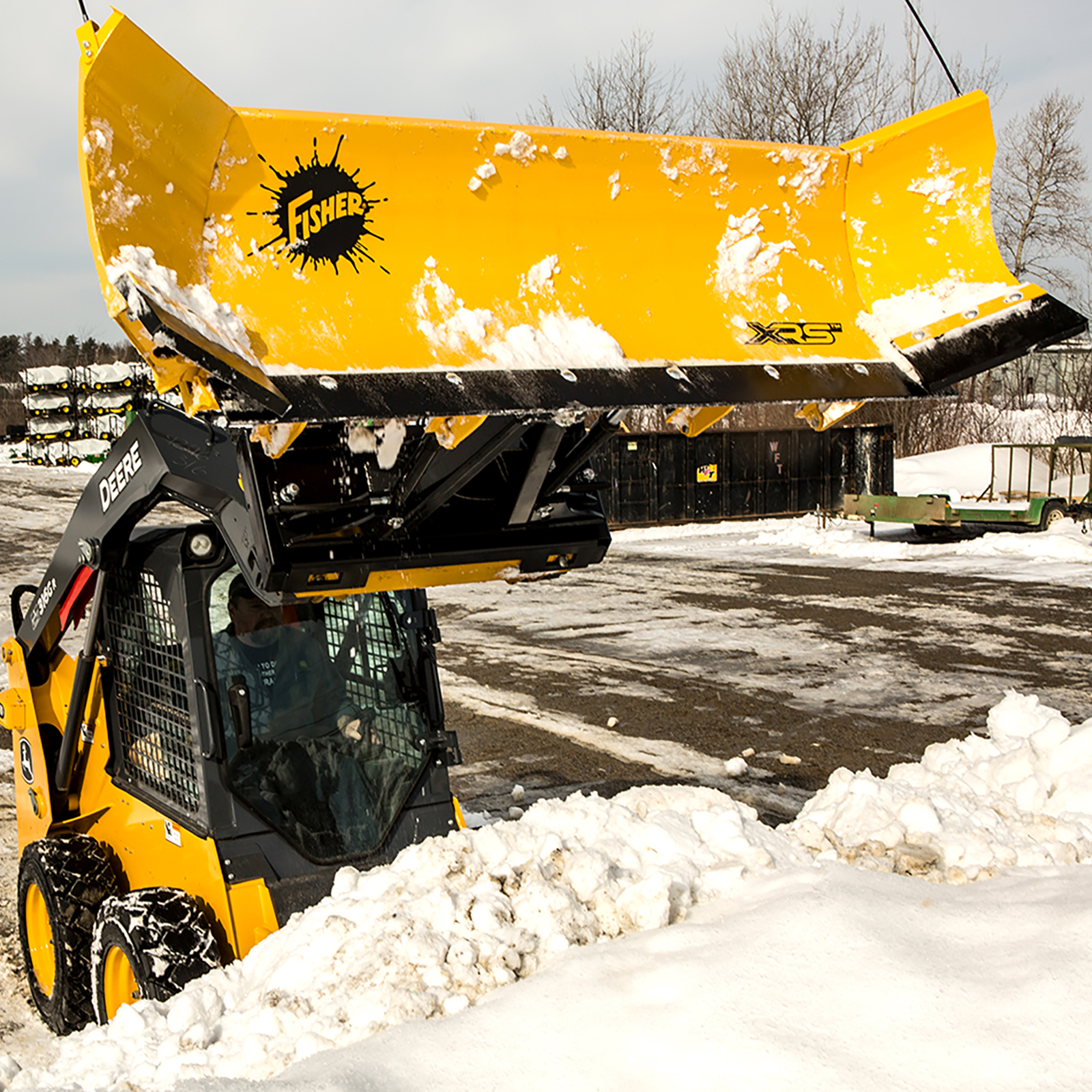

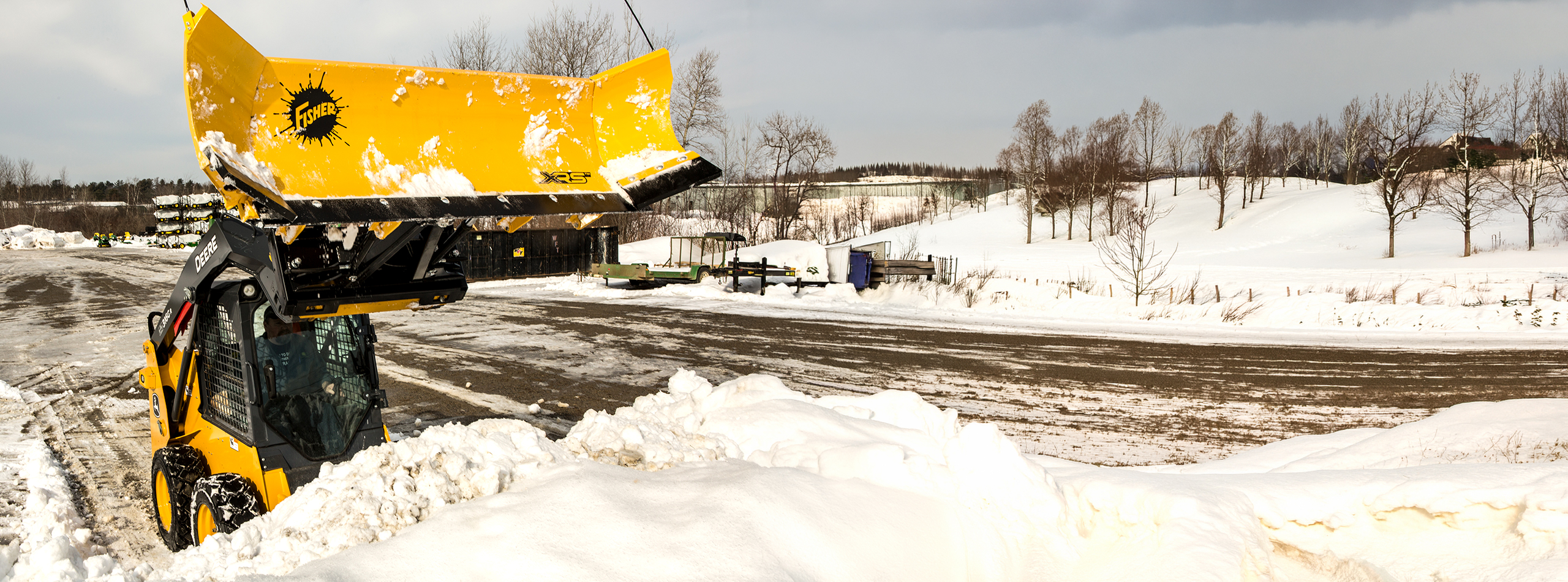

Compatible with Trucks & Skid-Steers
Standard Plow Features
Showing 3 out of 10
Featured Accessories
10" RUBBER DEFLECTOR
Dress up your blade and improve functionality with a genuine FISHER® rubber deflector. Made from 2-ply heavy-duty rubber, this easy-to-install Rubber Deflector Kit will provide improved visibility by deflecting snow forward instead of onto your windshield.
Part Number

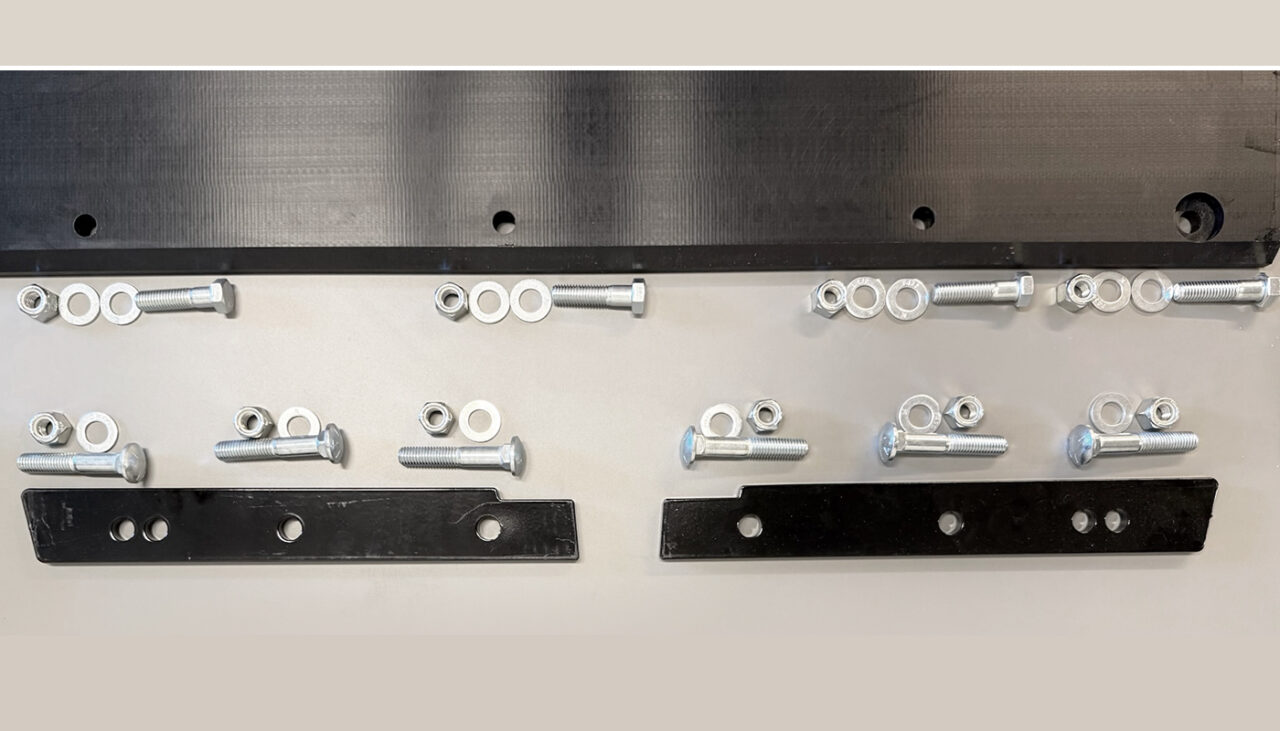

Poly Cutting Edge
The 1” resilient compound poly edges on the XRS snow plow moldboard help protect decorative concrete, driveways, and other delicate surfaces.
Part Number
SHOE KIT
Ideal for dirt or crushed stone road surfaces, a shoe kit will provide you with the ability to adjust the scraping height of the blade. Genuine FISHER® shoes are made of cast iron for maximum longevity and durability. Shoe kits include two shoes and all mounting hardware for easy installation.
Part Number
Product Specifications
| Models | 77500 |
|---|---|
| Blade Size | 8'7" |
| Blade Size | 8'7" |
| Moldboard Options | Powder-Coated Steel |
| Moldboard Options | Powder-Coated Steel |
| Blade Type | Automatic Winged Blade |
| Blade Type | Automatic Winged Blade |
| Vehicle Compatibility | Truck Class 2-5 & Skid-Steers (50 to 70 HP) |
| Vehicle Compatibility | Truck Class 2-5 & Skid-Steers (50 to 70 HP) |
| Approx. Weight* (Without Mount) | 950 lb |
| Approx. Weight* (Without Mount) | 430.91 kg |
| Plowing Width (Full Angle) | 7'10" |
| Plowing Width (Full Angle) | 2.4 m |
| Blade Width | 8'7" Scoop 9'8" Wings Pinned |
| Blade Width | 2.6 m Scoop 2.9 m Wings Pinned |
| Blade Height | 29.5" |
| Blade Height | 75 cm |
| Blade Gauge | 12 ga |
| Blade Gauge | 2.66 mm |
| Trip Springs | 4 |
| Trip Springs | 4 |
| Ribs | 6 (Blade) 2 (Wings) |
| Ribs | 6 (Blade) 2 (Wings) |
| Angling Rams | 1.5" x 10" |
| Angling Rams | 3.81 cm x 25 cm |
| Cutting Edge | ½" x 6" Steel (Standard) |
| Cutting Edge | 1.27 cm x 15.24 cm Steel (Standard) |
| Mount Type | Oscillating Skid-Steer Mounting Plate OR Minute Mount 2 |
| Mount Type | Oscillating Skid-Steer Mounting Plate OR Minute Mount 2 |
Product Literature & Support Manuals
eMatch
Does This Plow Fit my vehicle?

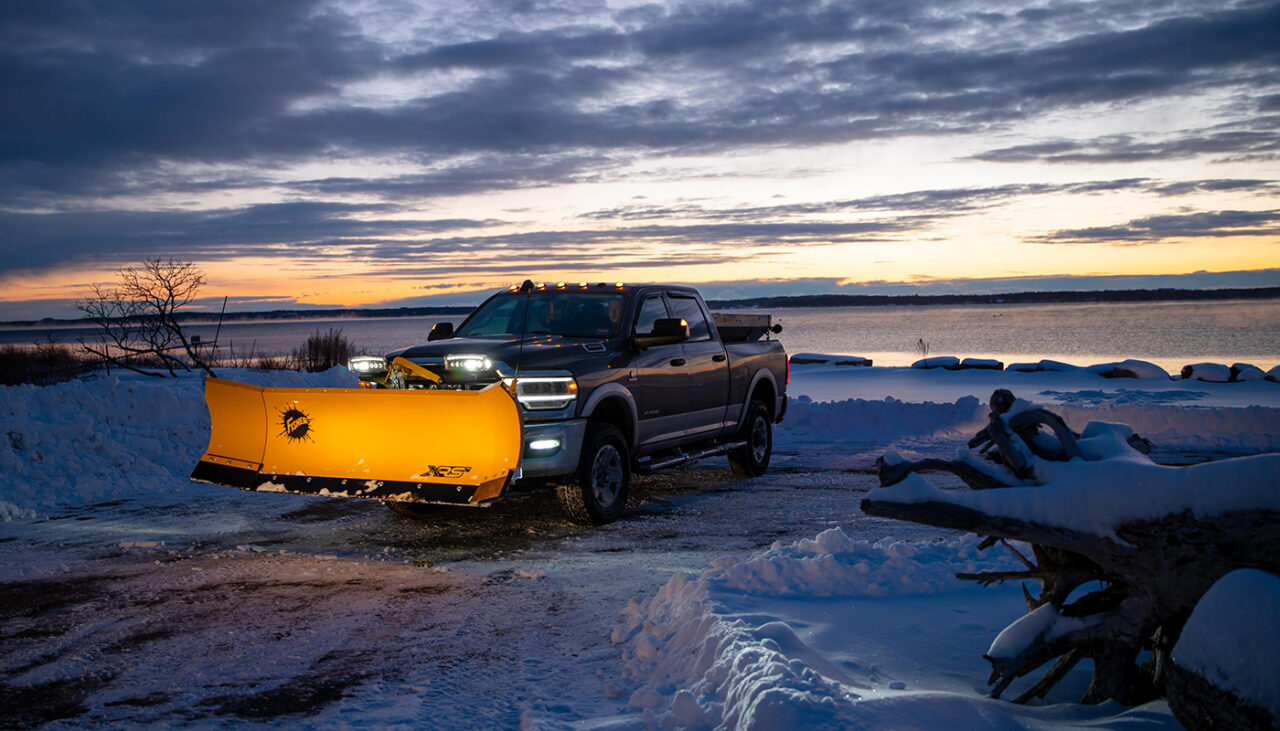

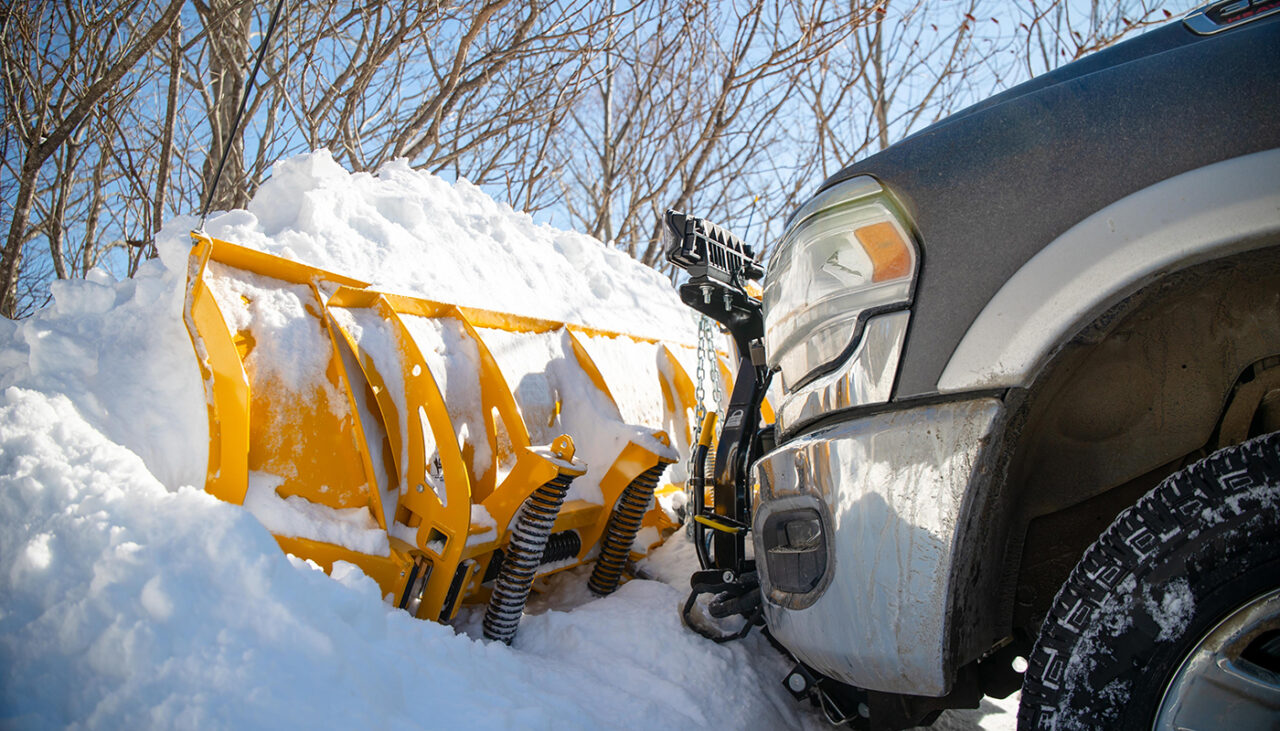

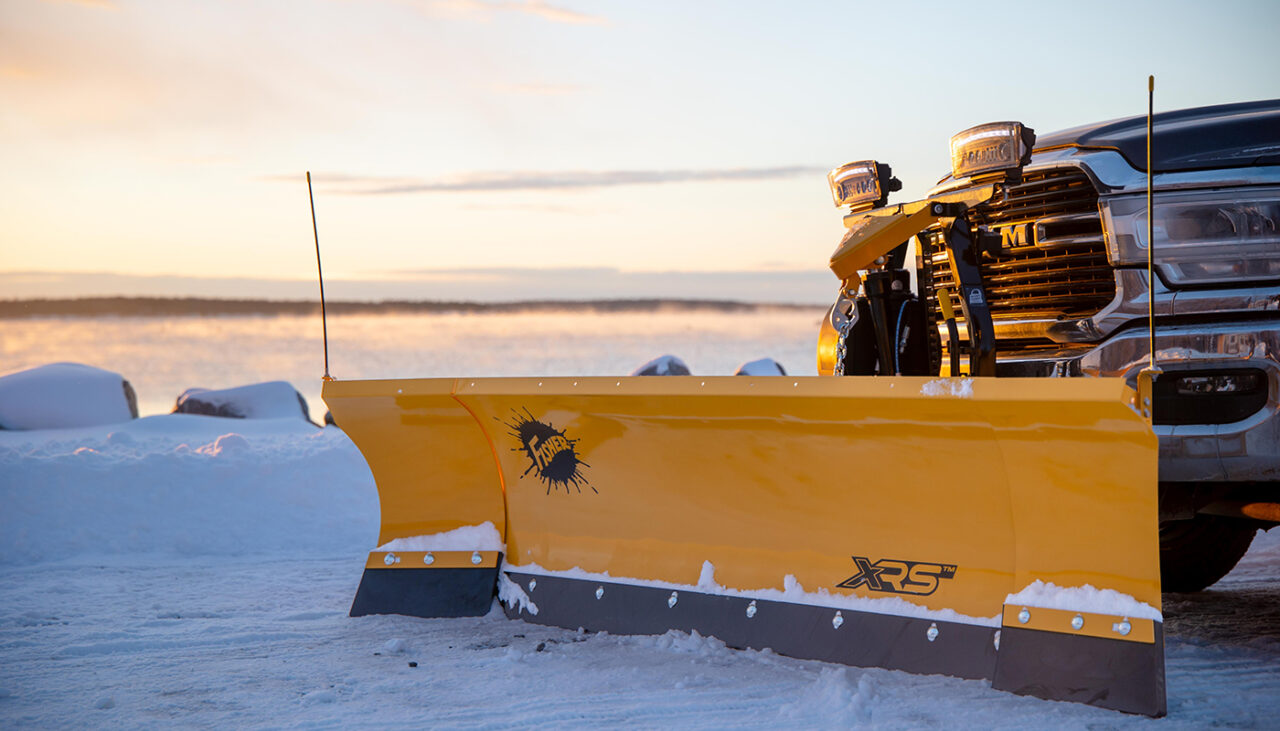

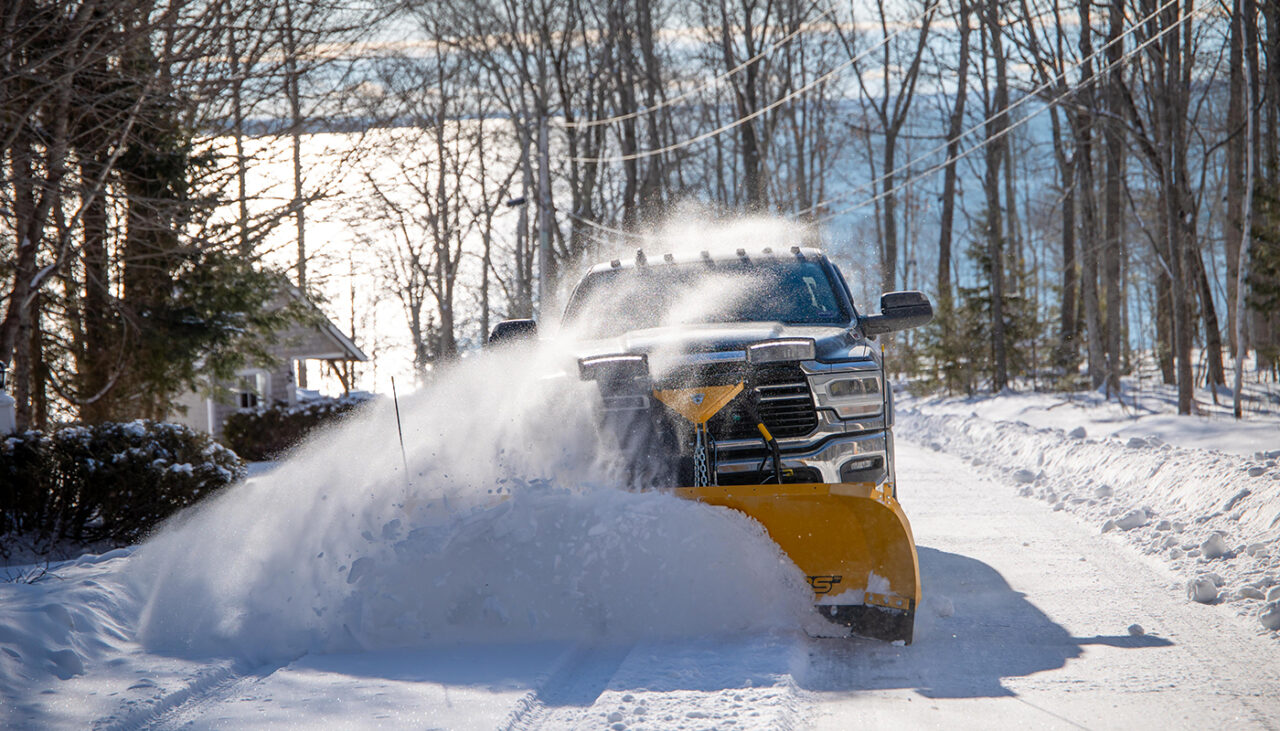

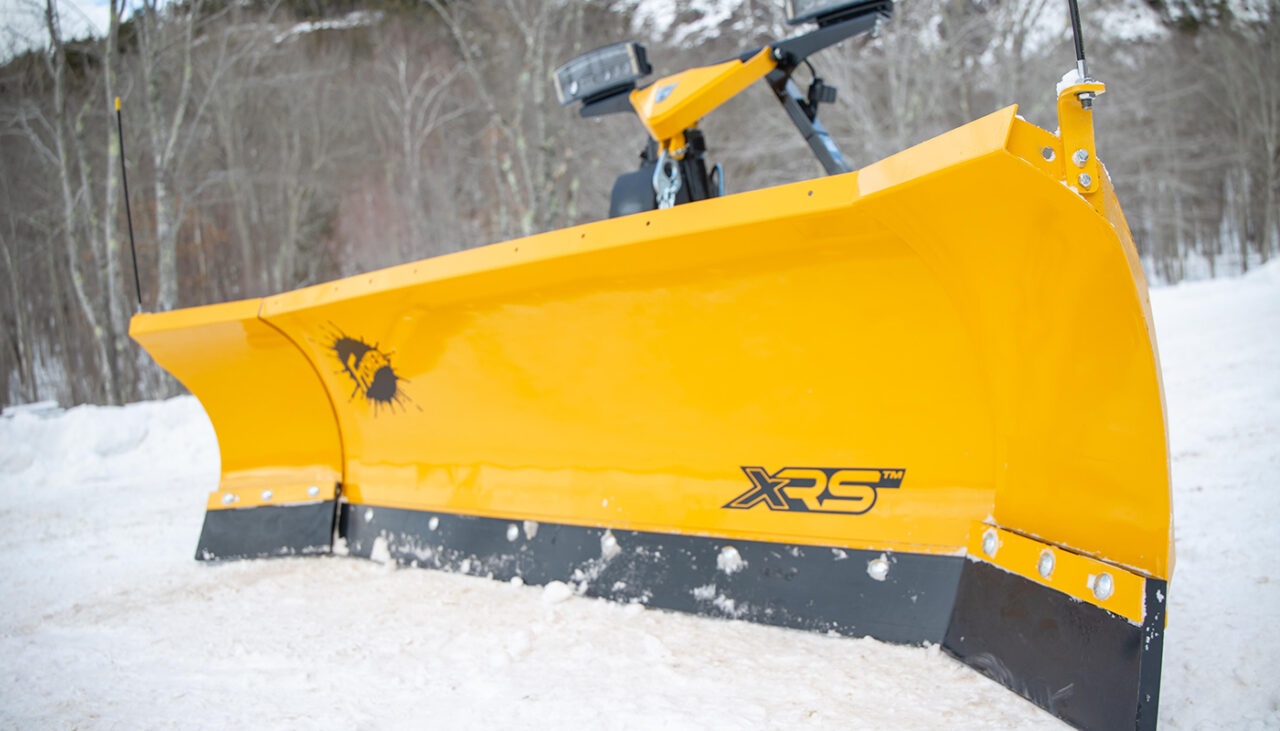

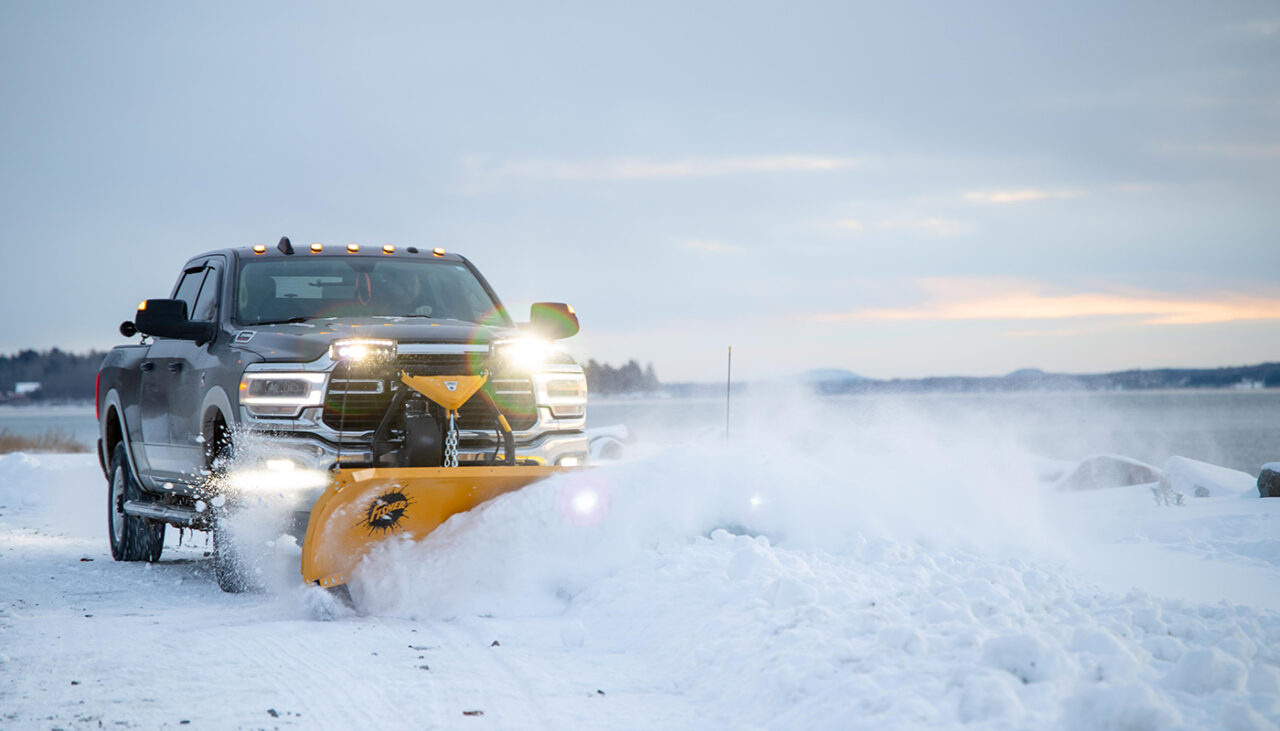

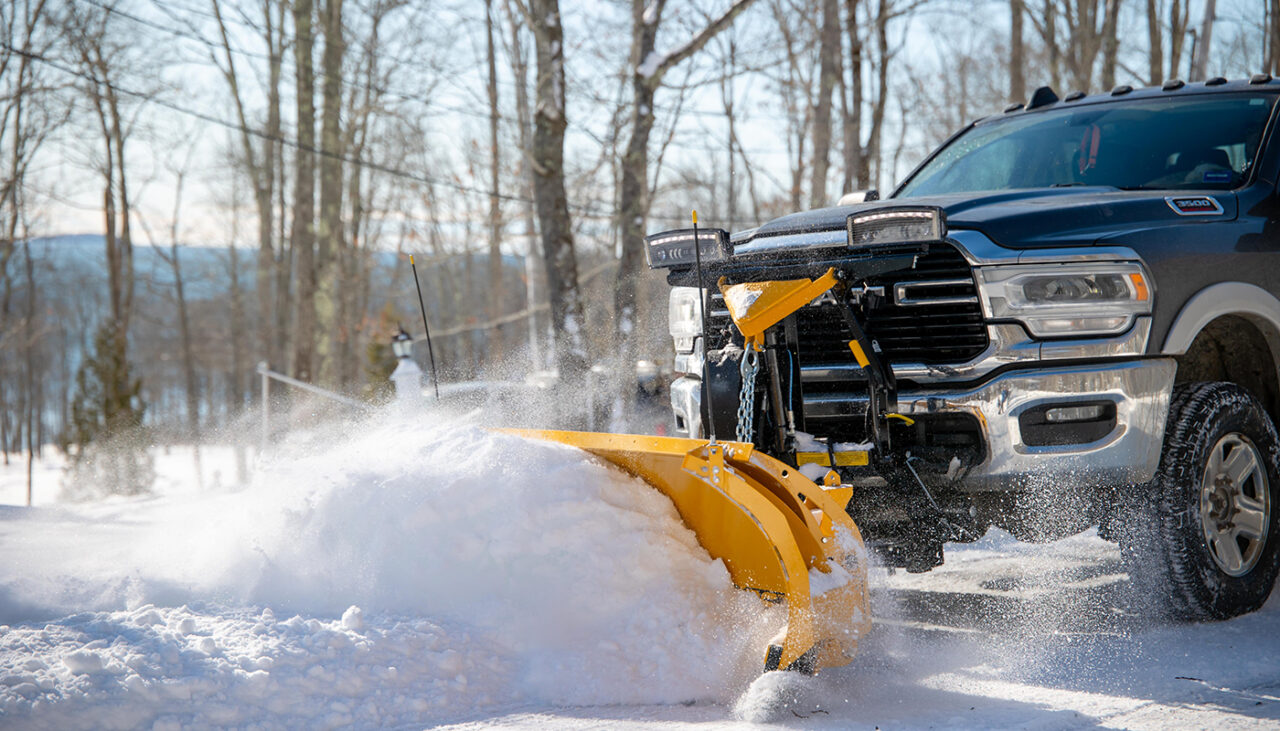

XRS™ Photo Gallery
