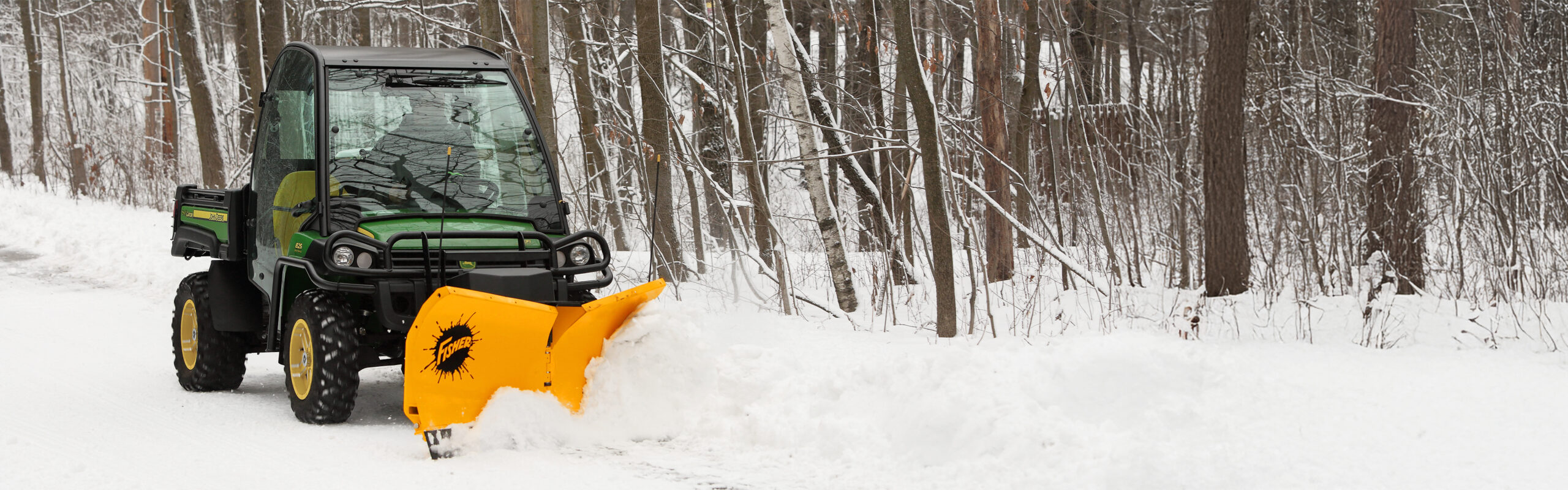

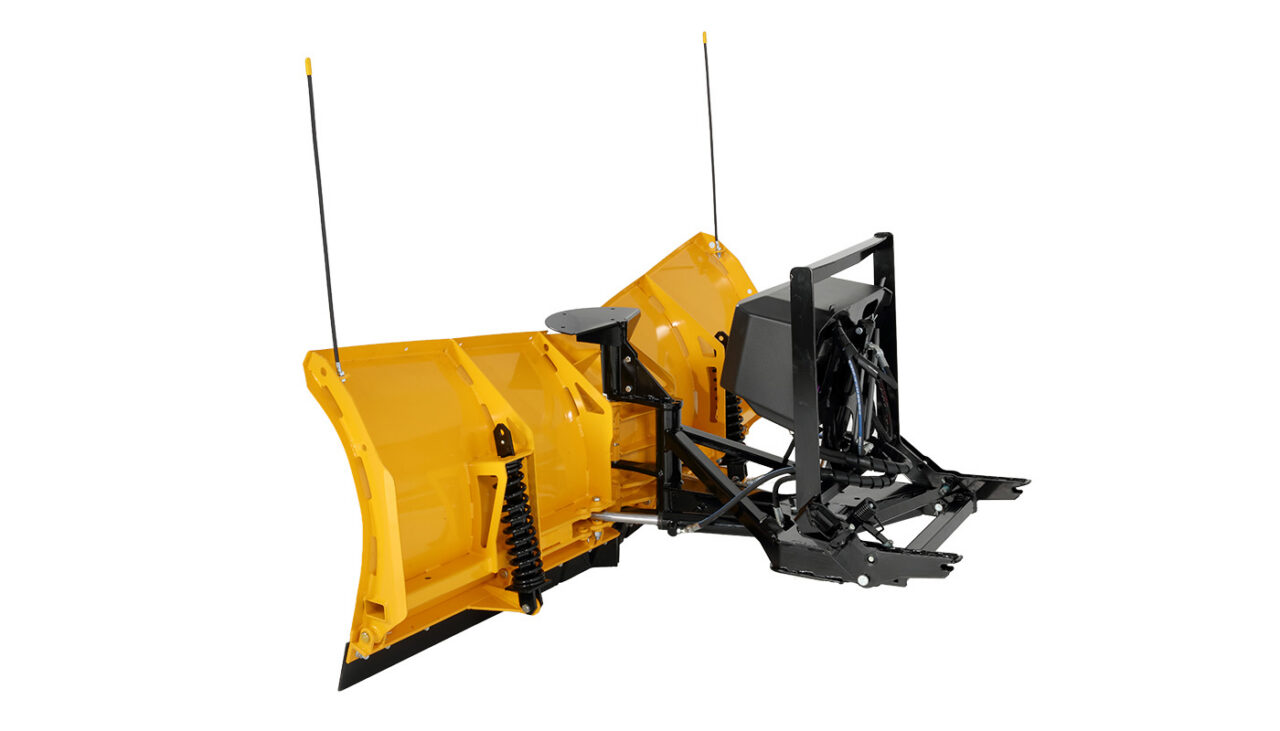

TRAILBLAZER™ Heavy-Duty
V-PLOW SNOWPLOWS
Quick Specs
- 6' Blade Width
- 354 lb Approx. Weight
- 4'7" - 5'0" Plowing Width
- Fits: Full Sized UTVs & Tractors
Verify compatibility and part number information

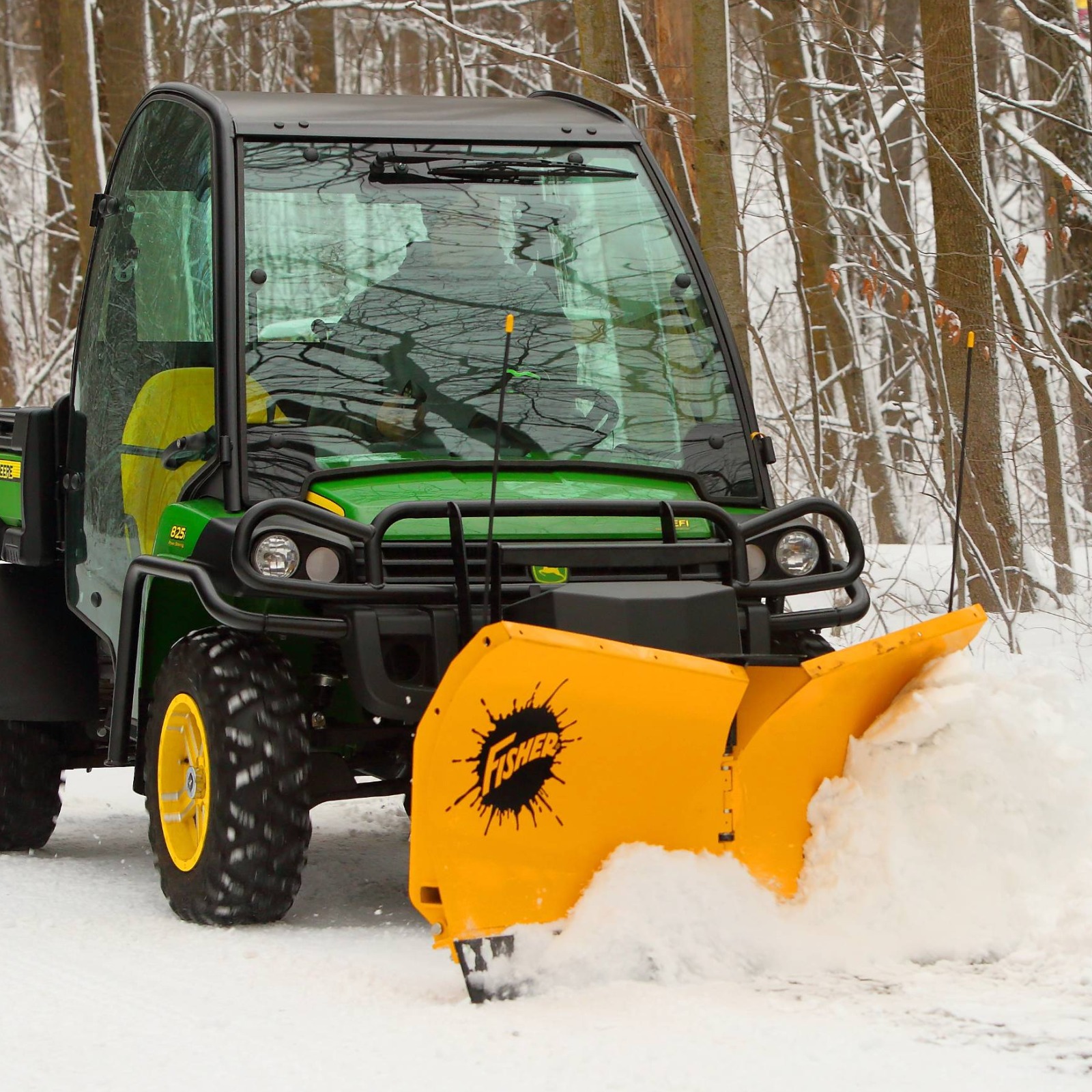

FULL-SIZE PLOWING POWER. COMPACT PACKAGE.
With the FISHER® TRAILBLAZER™ Heavy-Duty snowplows, you get full-sized plowing power in a compact package. Engineered with the same heavy-duty components as our commercial work truck plows, this straight blade or v-plow can handle the most demanding winter jobs. Its high-strength, low-alloy steel construction means it’s tough, yet lightweight to effortlessly clear sidewalks, walking paths, and parking lots like a pro.

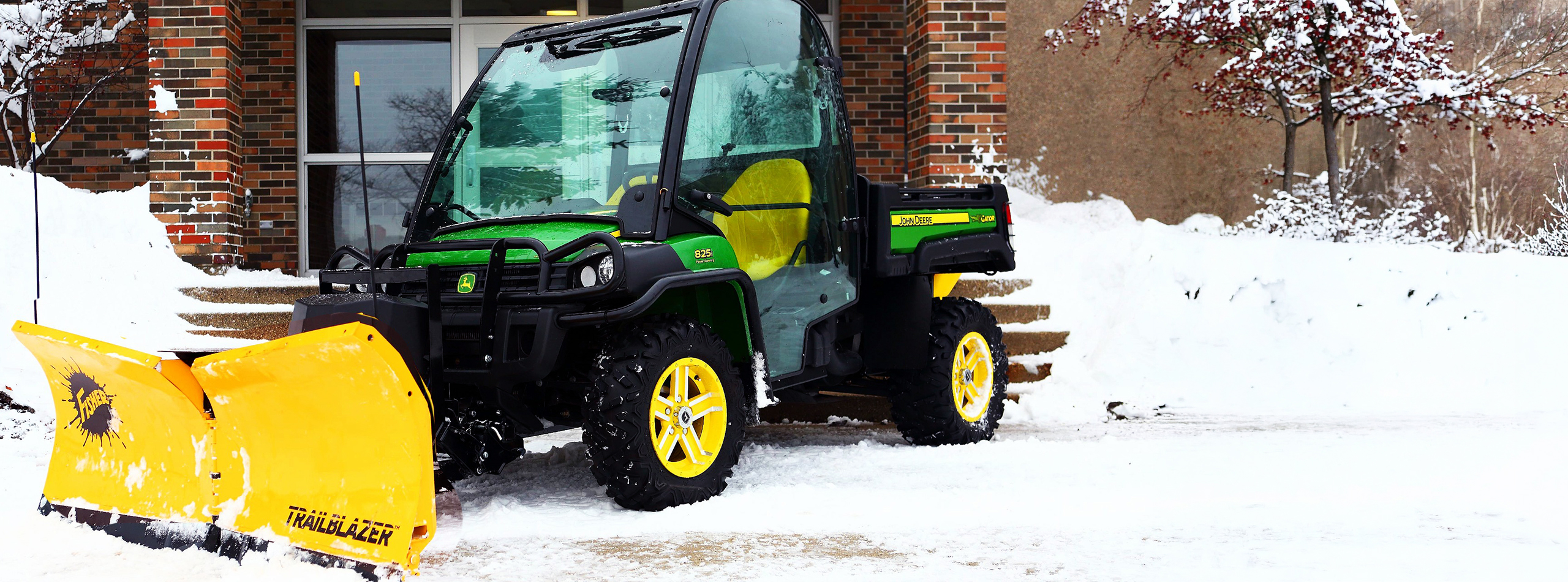

Compatible with UTVs & Tractors
Straight Blade Models Also Available
Unique Features
Blade Construction
- 25¾” (center) to 29¼” (outer edge) tall, flared moldboard available in 6’ width
- 14-gauge, powder coated steel
- ¼” x 5″ high-carbon steel cutting edge comes standard to increase the wear resistance of your blade
- 70-degree attack angle ensures a clean scrape and back drag
- Easy accessory installation with pre-punched blade
Structural Reinforcement
- 6 vertical ribs eliminate blade twisting and provide exceptional torsional strength
- ¾” diameter pivot bushing secures the plow in place for proper alignment and reduces stress on the plow assembly
The FISHER® Scrape Lock system locks the plow in any position you put it in to give you a cleaner scrape, especially while back dragging. With the plow locked in place, Scrape Lock gives you the performance of a larger plow without the extra weight and without the need to push any extra buttons.

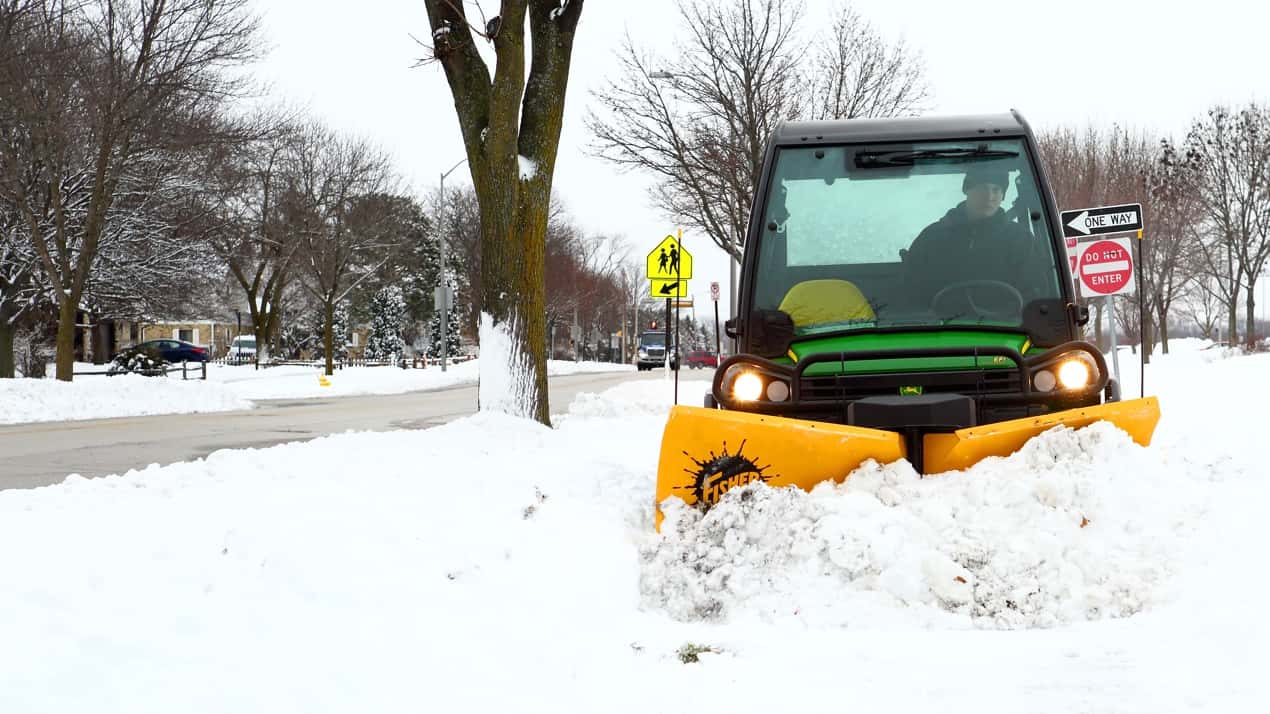

Double-acting cylinders allow the operator to lock the wings together to use the v-plow in straight blade mode with single button control. Double-acting cylinders also hold the wings firmly in place for clean, efficient back dragging.

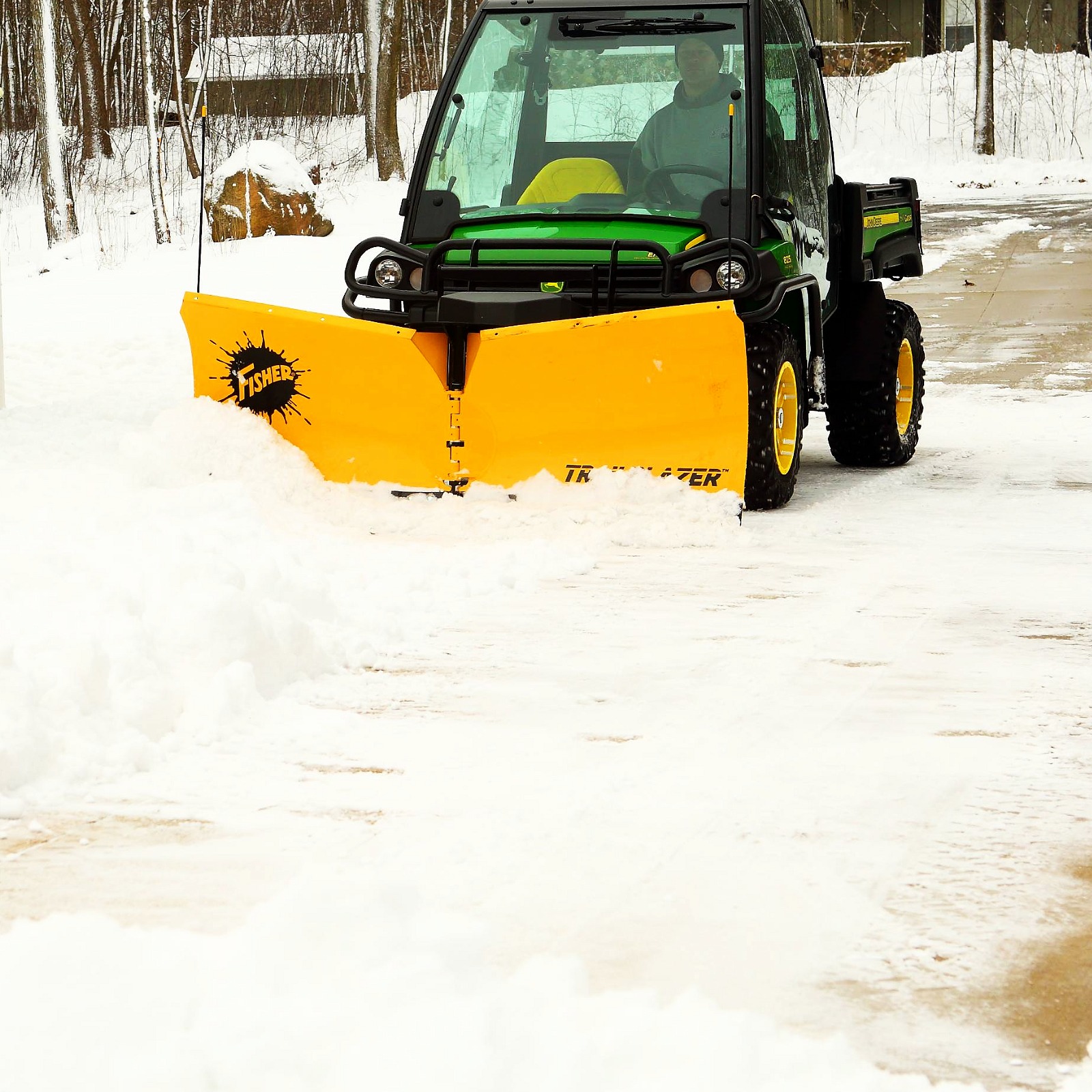

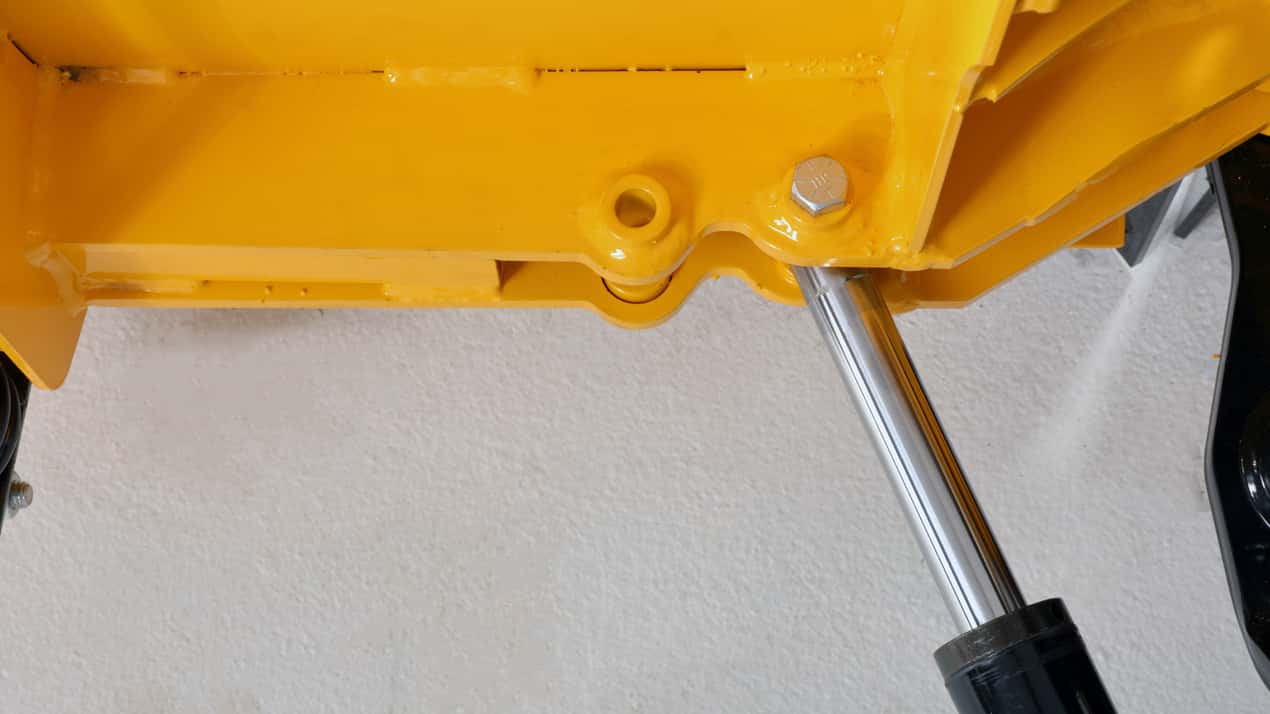

When fully angled or in V mode, the TRAILBLAZER™ UTV v-plow plowing path is 5′ wide, and 4′ 7″ in scoop. For UTVs with a wider wheel base, a width-adjustment setting is available to make your plowing path wider in these positions. Using the alternate setting, the plowing width is 5′ 6″ when fully angled or in V, and 5′ 1″ in scoop.

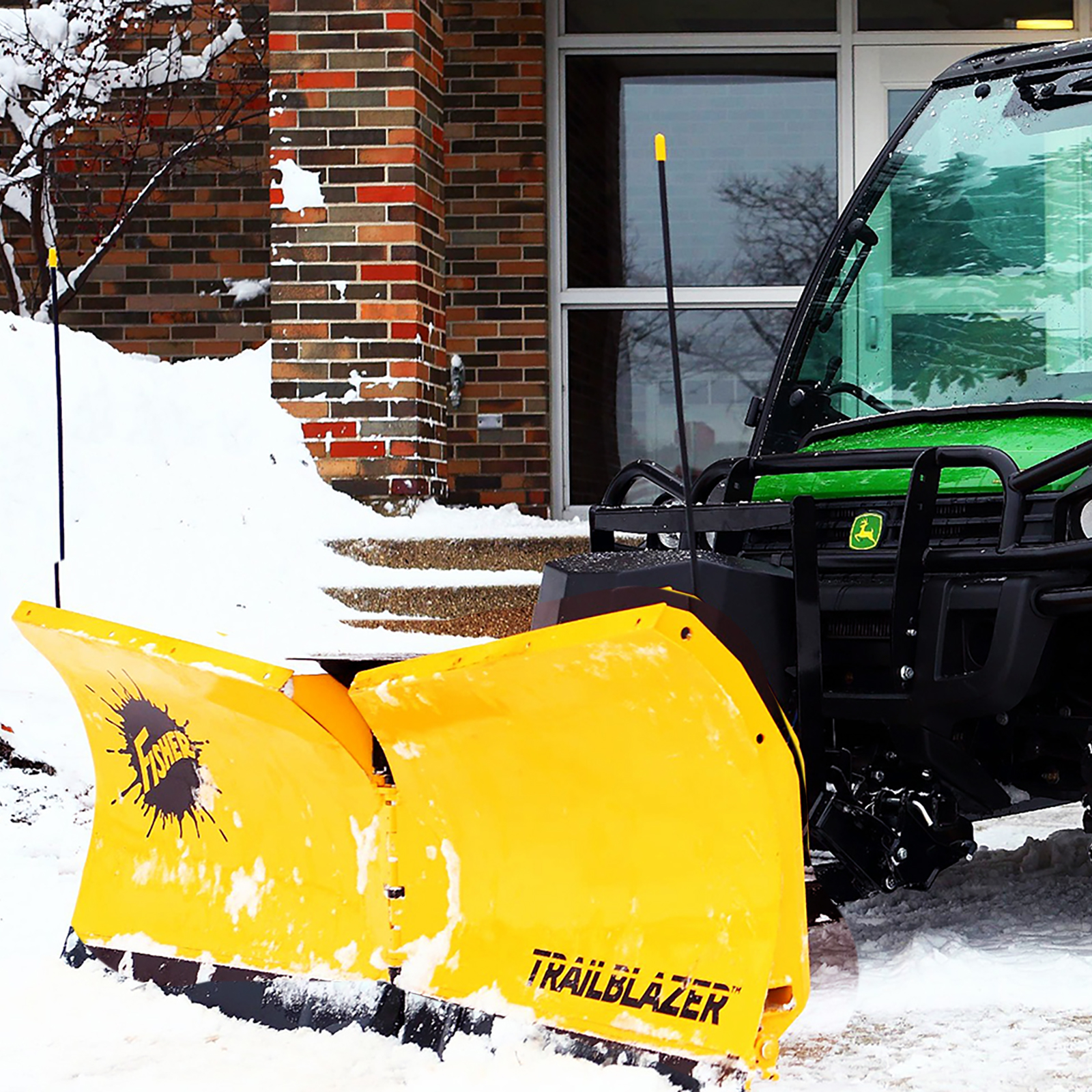

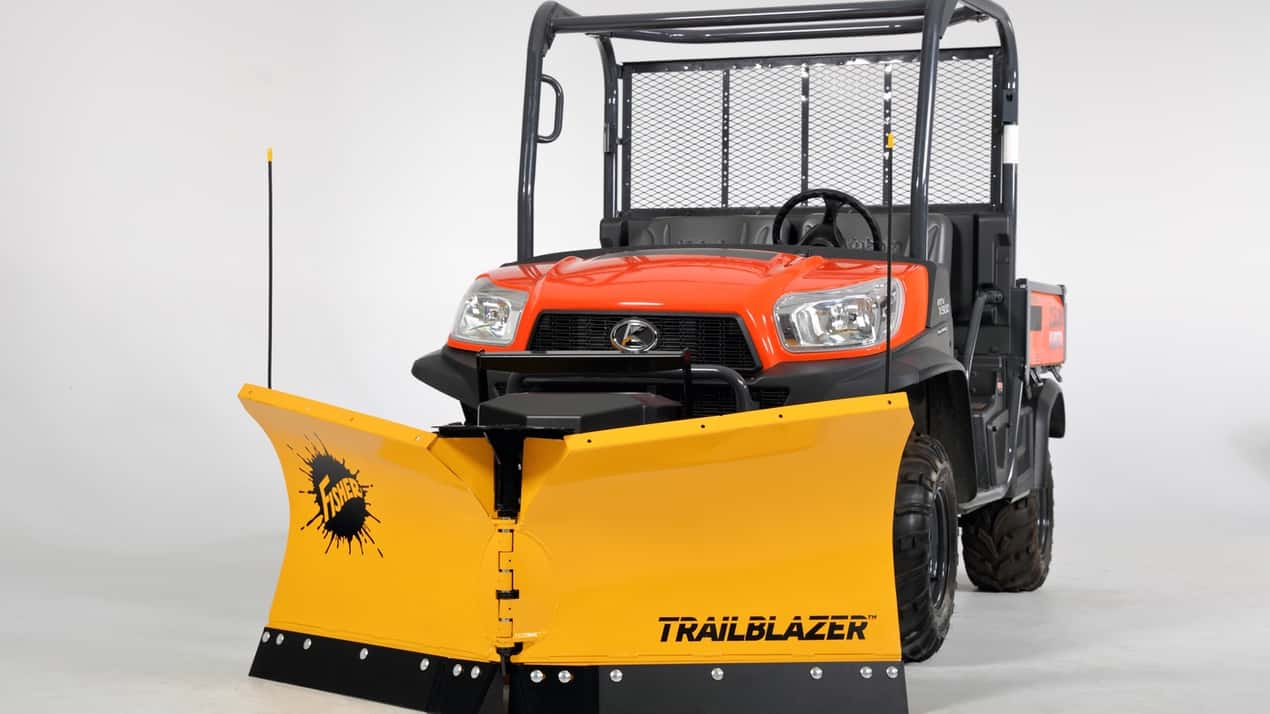

For exceptional snow containment in all positions, the TRAILBLAZER™ UTV v-plow has a center deflector designed to prevent snow from going over the top of the blade and the formed cutting edges reduce trailing snow.
Receiver brackets can be easily removed, restoring your vehicle back to its original ground clearance when the plow is not in use.
Universal Features
Standard Options
Accessories
WING EXTENSIONS
Part NumbersPart Number
Expand the carrying capacity of your TRAILBLAZER™ UTV v-plow by adding a pair of genuine FISHER® Wing Extensions. These wing extensions feature durable poly cutting edges which also function as a trip mechanism in the event that an obstruction is encountered. Wings extend at a 60° angle, increasing the effective plowing width by 14″.

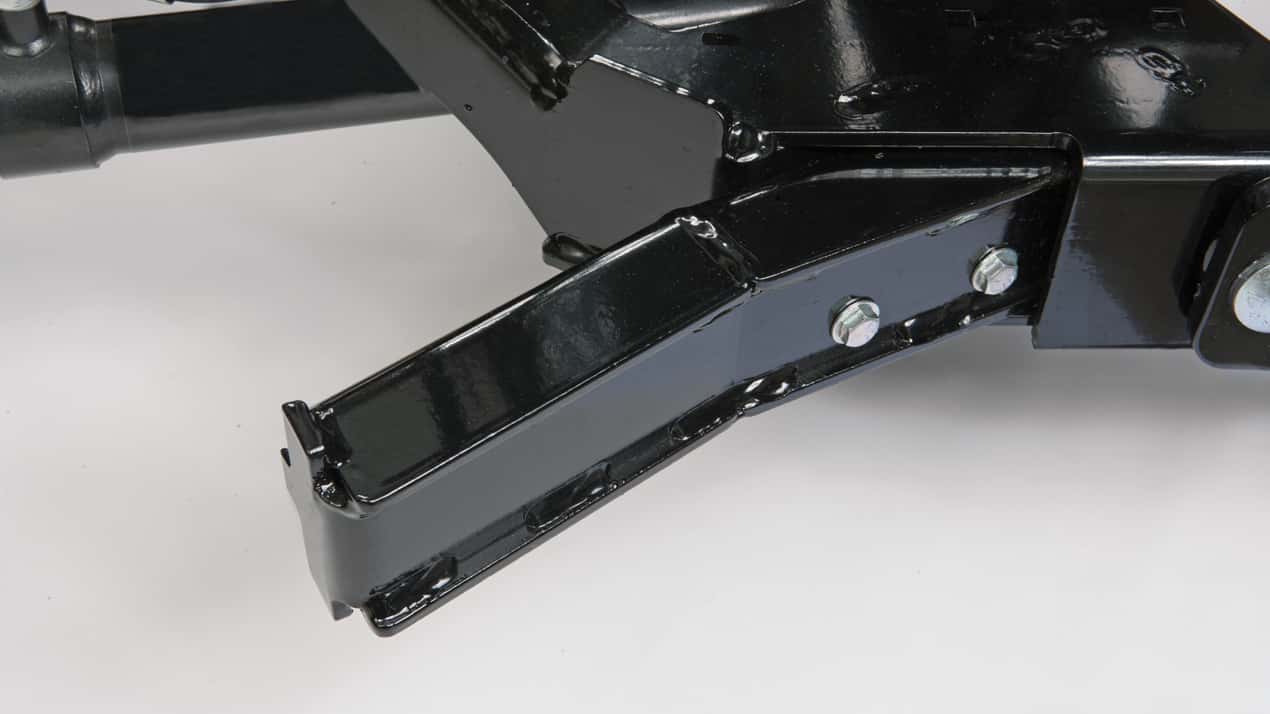

BLADE ANGLE STOPS
Part NumbersPart Number
Beef up your blade and prepare for extreme plowing conditions with genuine FISHER® Blade Angle Stops. Designed to transfer extreme impacts throughout the blade’s structure and reduce stress on the hydraulic rams, this kit comes with all of the necessary hardware and instructions for easy installation.
CUTTING EDGE - POLY
Part NumbersPart Number
If the job requires a more gentle approach, we have you covered. Designed to be light weight yet extremely durable, this high-density polymer cutting edge is ideal for sensitive road surfaces such as pea stone and cobblestone.
LIGHT BAR KIT
Part NumbersPart Number
Light up the path in front of your TRAILBLAZER™ UTV plow with the all-new light bar accessory. The stylish LED headlamps brighten your way as you plow through the night.
Specifications
| Specification | 87500 |
|---|---|
| Blade Width | 6' |
| Approx. Weight | 354 lb |
| Plowing Width | 4'7" - 5'0" |
| Blade Height |
29.25" at End 25.75" at Hinge |
| Blade Gauge | 14 ga |
| Angling Rams | 1" x 8 ¾" |
| Cutting Edge | ¼" x 5" (Standard) |
| Specification | 87500 |
|---|---|
| Moldboard Options | High Strength or Powder-Coated Steel |
| Blade Type | V-Plow |
| Vehicle Compatibility | Full Sized UTVs & Tractors |
| Trip Springs | 2 |
| Vertical Ribs | 6 |
| Mount Type | UTV Mounting System or Tractor Mount Kit |
