V-Plow Snowplow

Operate at a Higher Level

With the ability to position the plow in V, straight or scoop mode, plowing snow with the XtremeV™ v-plow takes you to the next level. Whether busting through a long driveway or clearing a parking lot full of cars, the XtremeV v-plow makes quick work of brutal winter conditions.

Type of Snowplow

V-Plow

Unique Features

Center Snow Control
Double-Acting Cylinders
Plow Blade Construction
Reliable Hydraulics
Structural Reinforcement
Tractor Compatible Mount
Trip Protection

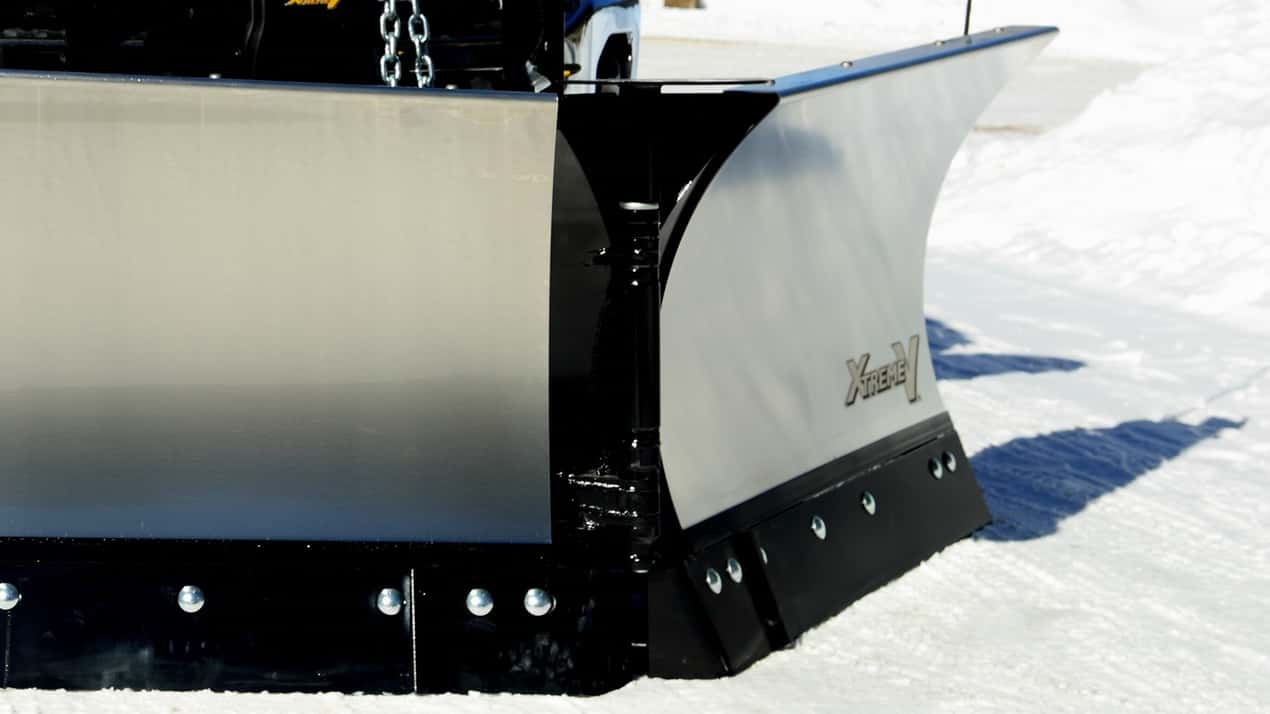

Center Snow Control

For exceptional snow containment in all positions, the XtremeV™ v-plow has a center deflector designed to prevent snow from going over the top of the blade and the formed cutting edges reduce trailing snow.

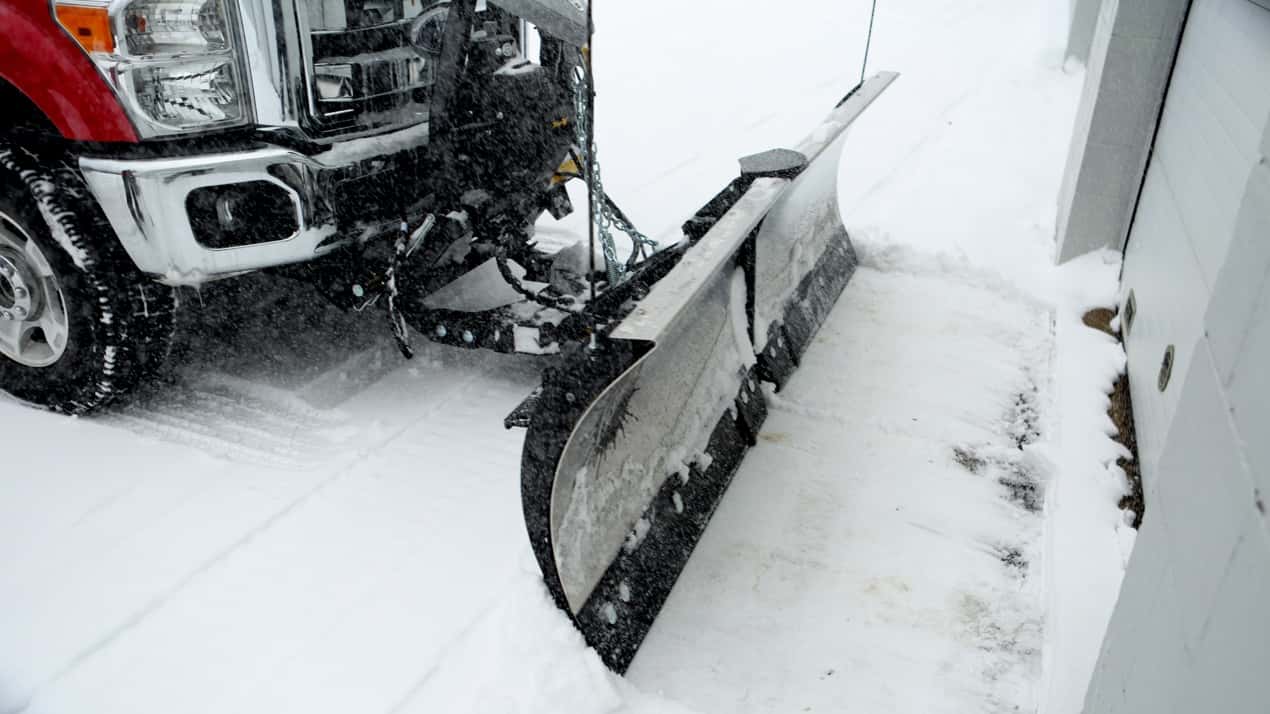

Double-Acting Cylinders

InstaLock double-acting cylinders allow the operator to lock the wings together to use the v-plow in straight blade mode with single button control. Double-acting cylinders also hold the wings firmly in place for clean, efficient back dragging.

Plow Blade Construction

Available in stainless steel or powder coated steel, the XtremeV™ snow plow blade is available in 8' 6" and 9' 6" widths*. The blade comes standard with a high-carbon steel cutting edge, increasing wear resistance, and features a 70-degree attack angle for enhanced scraping and back dragging.

Reliable Hydraulics

We design and manufacture our own hydraulics to ensure the highest standards of performance, quality, and durability—giving you a plow that is fast, responsive, and built to last. This allows plow drivers to change the blade position quickly and easily for efficient plowing.

All critical hydraulic components are fully enclosed for protection from the elements.

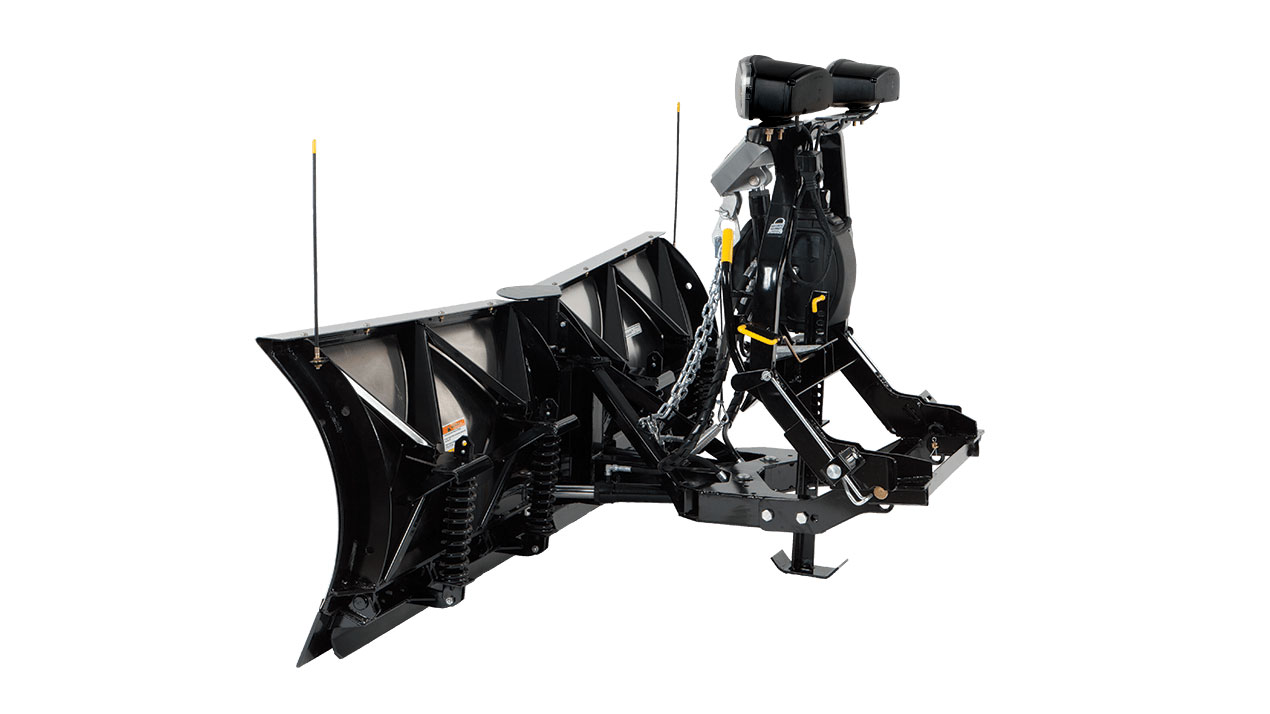

Structural Reinforcement

The XtremeV™ v-plow features our rugged x-bracing design which is constructed from four vertical ribs and eight x-bracing ribs. The ribs reinforce the blade for structural integrity and exceptional torsional strength, even under the punishing stress of commercial plowing.

Tractor Compatible Mount

Designed for easy installation onto a wide range of tractor models, these mount kits make it possible for the XtremeV™ v-plows to fit on a compact tractor. They are flared both vertically and horizontally to ensure proper alignment and make the drive-in connection easier. The push beam, which makes up the front portion of the mount, can be quickly detached to allow for a loader attachment.

*XV2 featured in image.

Trip Protection

Each v-plow blade features independent trip-edge protection to get over bumps and hidden obstacles, whether in V, scoop, or straight-blade configuration, helping to protect the plow, the truck and the operator. Since only the bottom edge trips, snow stays in front of the blade, so you can keep on going without dumping the entire load of snow.

The FISHER^® trip edge uses compression-type springs that never require adjustment and will not wear out like extension springs.

Universal Features

Featured Accessories

BACK DRAG EDGE KIT

Achieve cleaner results and increased efficiency with a genuine back drag edge from FISHER^®. Made from 1/4 inch abrasion-resistant steel and custom fit to your blade, this back drag edge will improve results by providing a clean scrape while back dragging. (The back drag edge is not compatible with the use of a shoe kit.)

CURB GUARD KIT - CAST IRON

Curbing can seemingly come out of nowhere sometimes; protect your blade with a pair of genuine curb guards from FISHER^®. These simple-to-install curb guards are made of cast iron for ultimate wear-resistance, and also feature a rounded profile which reduces damage to curbing as well as the blade.

BLADE STOP KIT

Beef up your blade and prepare for extreme plowing conditions with genuine FISHER^® Blade Stops, designed to transfer extreme impacts throughout the blade's structure and reduce stress on the hydraulic rams. This kit comes with all of the necessary hardware and instructions for easy installation.

10" RUBBER DEFLECTOR

Dress up your blade and improve functionality with a genuine FISHER^® rubber deflector. Made from 2-ply heavy-duty rubber and accented with the FISHER logo, this easy-to-install Rubber Deflector Kit will provide improved visibility by deflecting snow forward instead of onto your windshield.

WING EXTENSIONS

Expand the carrying capacity of your XtremeV™ snow plow while cleaning up by adding a pair of genuine FISHER^® extension wings. These extension wings feature durable poly cutting edges which also function as a trip mechanism in the event that an obstruction is encountered. Wings extend at a 35° angle, increasing the effective plowing width by 12". (Not available for 7' 6" blades)

CUTTING EDGE - CARBIDE

Abrasive surfaces and increased plowing speeds, often found in municipal and commercial applications, can increase the wear rate of standard steel cutting edges. Combat high replacement cycles with FISHER Carbide Accessory Cutting Edge Kits for the 8' 6" and 9' 6" XtremeV.

CUTTING EDGE - POLY

Sensitive surfaces found in many residential and commercial applications require a more forgiving approach. Reduce the risk of property damage with Poly Cutting Edge Kits for the 8' 6" and 9' 6" XtremeV.

CUTTING EDGE - 1/2" STEEL

Keep your blade at the top of its game by installing a genuine FISHER^® cutting edge. Made of tough high carbon steel, a cutting edge will increase wear resistance and restore your worn base angle to the proper geometry which is vital to protect you and your equipment. Hardware and center edges included.

CUTTING EDGE - 3/8" STEEL

Keep your blade at the top of its game by installing a genuine FISHER^® cutting edge. Made of tough high carbon steel, a cutting edge will increase wear resistance and restore your worn base angle to the proper geometry which is vital to protect you and your equipment. Hardware and center edges included.

SHOE KIT

Ideal for dirt or crushed stone road surfaces, a shoe kit will provide you with the ability to adjust the scraping height of the blade. Genuine FISHER^® shoes are made of cast iron for maximum longevity and durability. Shoe kits include two shoes and all mounting hardware for easy installation. (The shoe kit is not compatible with the use of a back drag edge.)

HIGH WEAR SHOE KIT

Improve blade float or reduce cutting edge wear rates with the new High Wear Shoe Kit. Composed of wear resistant AR400 material, these kits are less brittle, offer better wear rates than cast iron and are designed with aggressive municipal and commercial plowing applications in mind.

COMMERCIAL BLADE GUIDE KITS

Commercial Blade Guides are made from durable and highly visible fluorescent orange material and feature FISHER^® branded reflective tape. Available in 24" or 36" lengths, these blade guides provide improved visibility and enhance your ability see the position of your blade.

GRILLE PLATE

Create clean and professional looking snowplow installations using the new stainless steel grille plate kits. Customizable 11-pin and 14-pin kits create harness storage locations for any application.

LED SECURITY KIT

Thwart opportunistic theft of LED plow lights with the Security Kit featuring tamper-resistant hardware, mounting bracket, and installation tool.

PLOW PARKA

This heavy-duty FISHER^® branded nylon cover protects electrical and hydraulic systems and includes elastic sewn into the bottom for a tight, weather-resistant fit.

CONTROL CUP HOLDER MOUNT

The Control Cup Holder Mount is designed to fit firmly in most vehicle cup holders. It's a genuine, factory-tough accessory specifically engineered to securely hold FISHER^® hand-held or joystick controls and all types of smart phone devices (not included with mount). This flexible gooseneck mount has a 360-degree rotation and ensures optimal, customizable positioning.

FREEZE GUARD™ GREASE

Specially formulated to protect moving components in arctic mining conditions, this grease is ideal for bearings, hinges and pivot bolts on snow and ice control equipment. The custom formula maintains viscosity from -40 up to 300 degrees, and military-grade, corrosion-prevention additives protect equipment from corrosion without harmful environmental impact. FREEZE GUARD^™ Grease is available in cartridges, pails, totes and drums.

Specifications

Models	8' 6" PC or SS	9' 6" PC or SS
Blade Width	8' 6"	9' 6"
Blade Width	2.59 m	2.90 m
Blade Height	29" at Center 31" at End	31" at Center 33" at End
Blade Height	73.66 cm at Center 78.74 cm at End	78.74 cm at Center 83.82 cm at End
Blade Gauge	14	14
Blade Gauge	2.66 mm	2.66 mm
Trip Springs	4	6
Trip Springs	4	6
Ribs	12	12
Ribs	12	12
Lift Cylinder	1 ½" x 10"	1 ½" x 10"
Lift Cylinder	3.81 cm x 25.40 cm	3.81 cm x 25.40 cm
Angling Rams	1 ¾" x 11"	1 ¾" x 11"
Angling Rams	4.45 cm x 27.94 cm	4.45 cm x 27.94 cm
Plowing Width	7' 5" Full Angle 7' 1" Scoop 7' 7" Full V	8' 3" Full Angle 7' 11" Scoop 8' 7" Full V
Plowing Width	2.26 m Full Angle 2.16 m Scoop 2.31 m Full V	2.51 m Full Angle 2.41 m Scoop 2.62 m Full V
Approx. Weight*	899 lb	1,013 lb
Approx. Weight*	407 kg	459 kg
Cutting Edge	⅜" x 6" ½" x 6"**	½" x 6"
Cutting Edge	0.95 cm x 15.24 cm 1.27 cm x 15.24 cm**	1.27 cm x 15.24 cm
Mount Type	Minute Mount^® 2	Minute Mount^® 2
Mount Type	Minute Mount^® 2	Minute Mount^® 2

PC = Powder Coated Steel
SS = Stainless Steel
*Does not include vehicle mount. Please refer to the eMatch program for specific vehicle applications.
**Optional accessory
