V-Plow Snowplow

A Classic Reincarnated

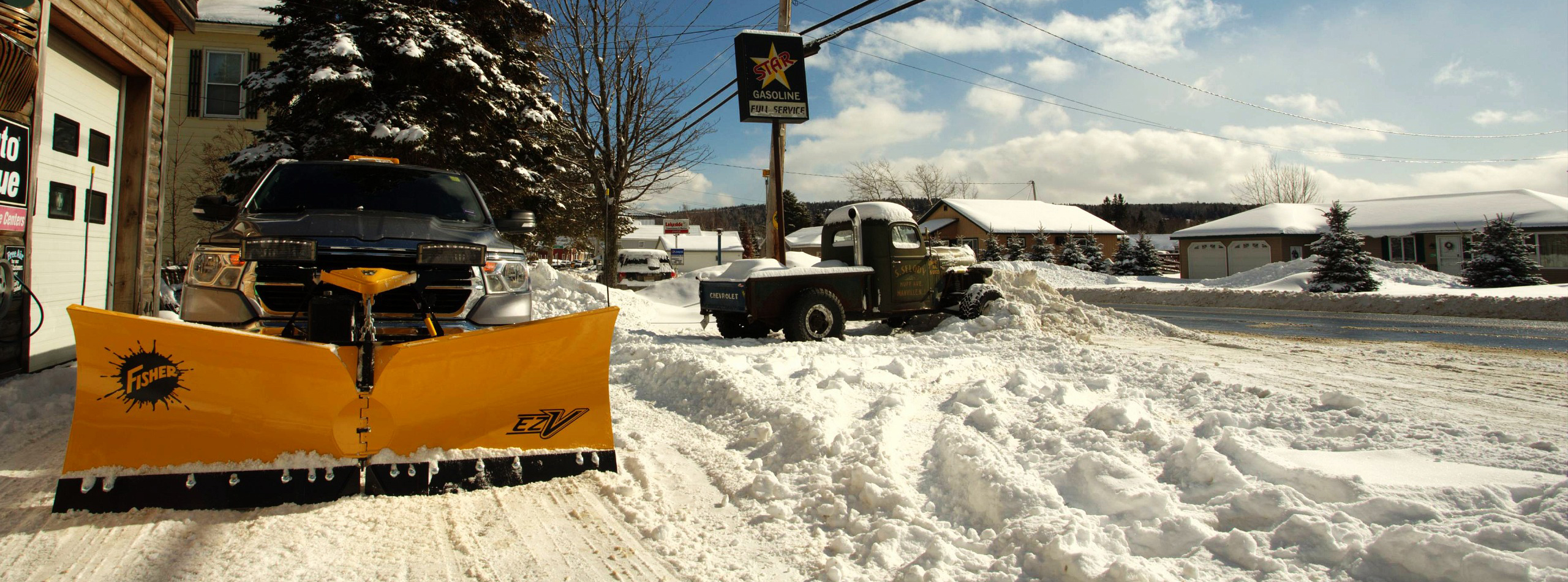

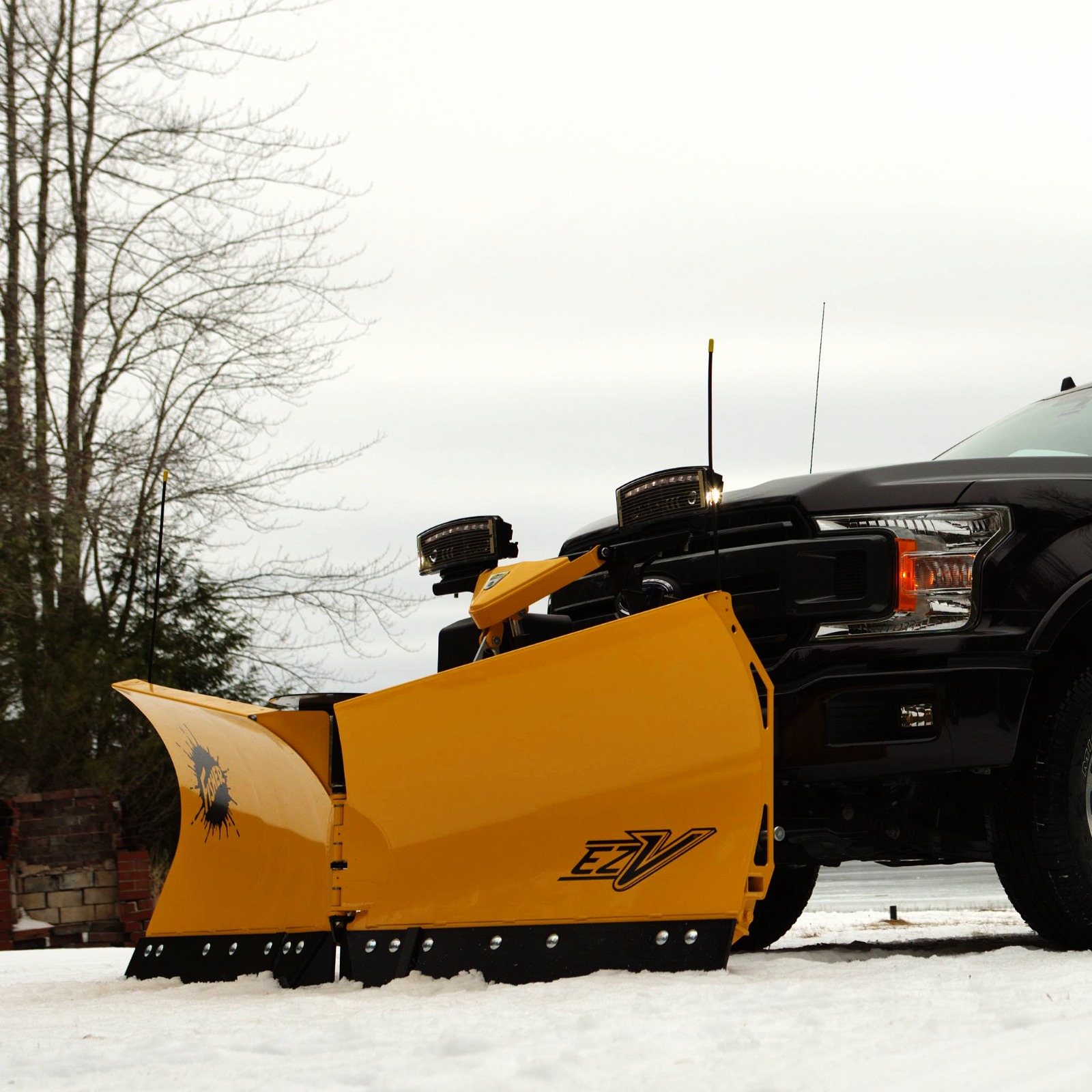

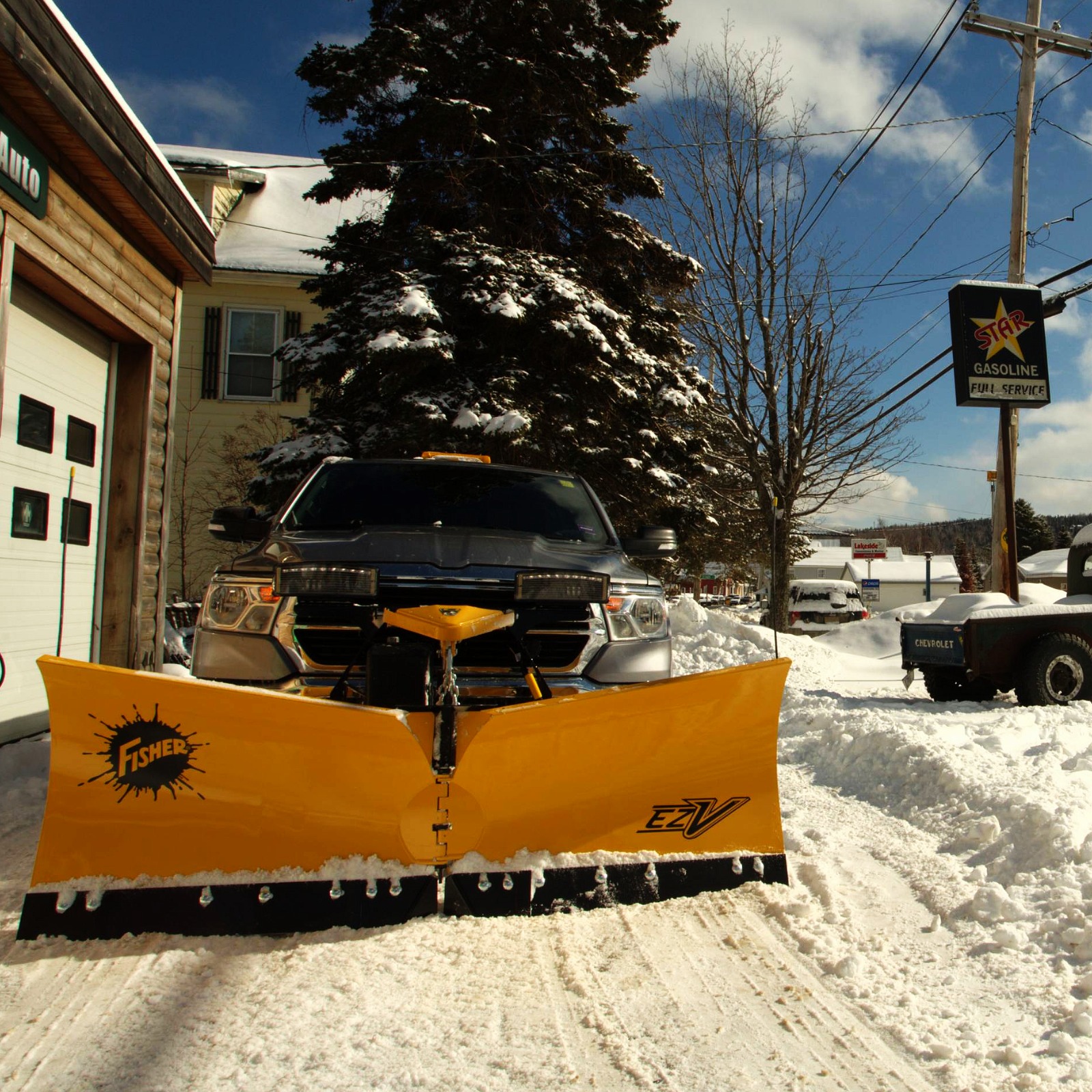

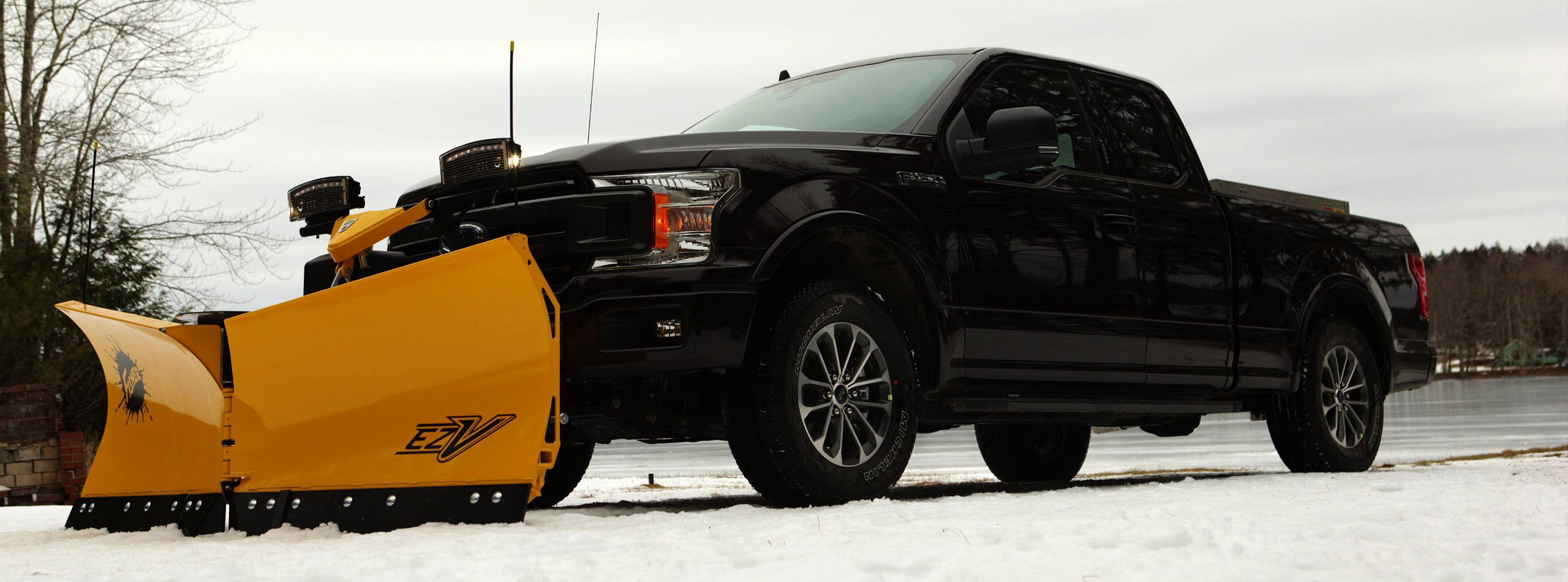

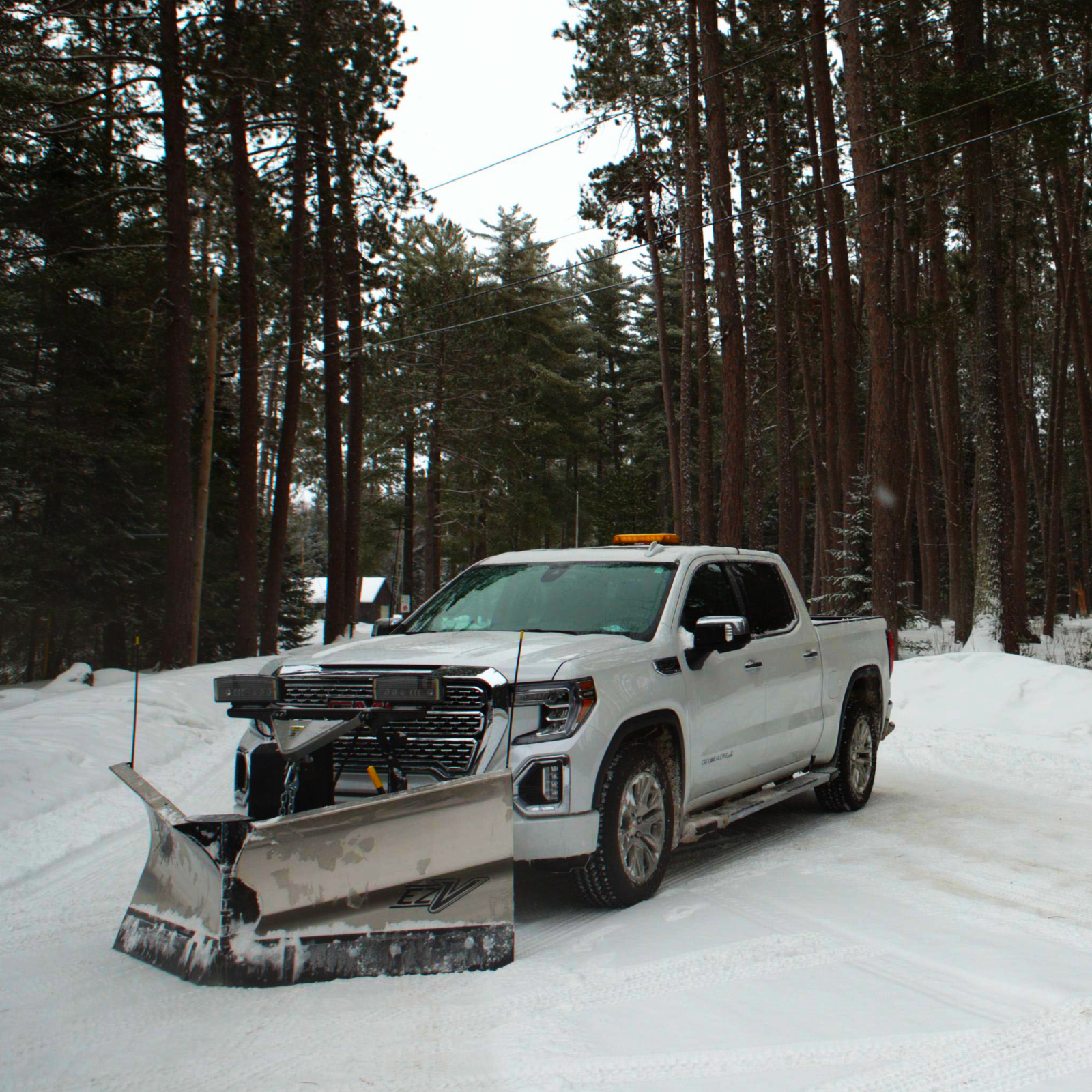

The FISHER^® EZ-V^® v-plow, with trip-edge design, is purpose-built to provide industry-leading features, performance and efficiency, just like the other v-plows in our lineup. The EZ-V blade’s lightweight design is ideal for businesses and homeowners using half-ton trucks such as the GMC^® Sierra 1500, Chevrolet^® Silverado 1500, Ford^® F-150, RAM^® 1500, Toyota^® Tundra and Nissan^® Titan.

Type of Snowplow

V-Plow

Unique Features

Plow Blade Construction
Structural Reinforcement
Reliable Hydraulics
Trip Protection
Double-Acting Cylinders
Center Snow Control
Adjustable Width Configuration
Hydraulic Cover

Plow Blade Construction

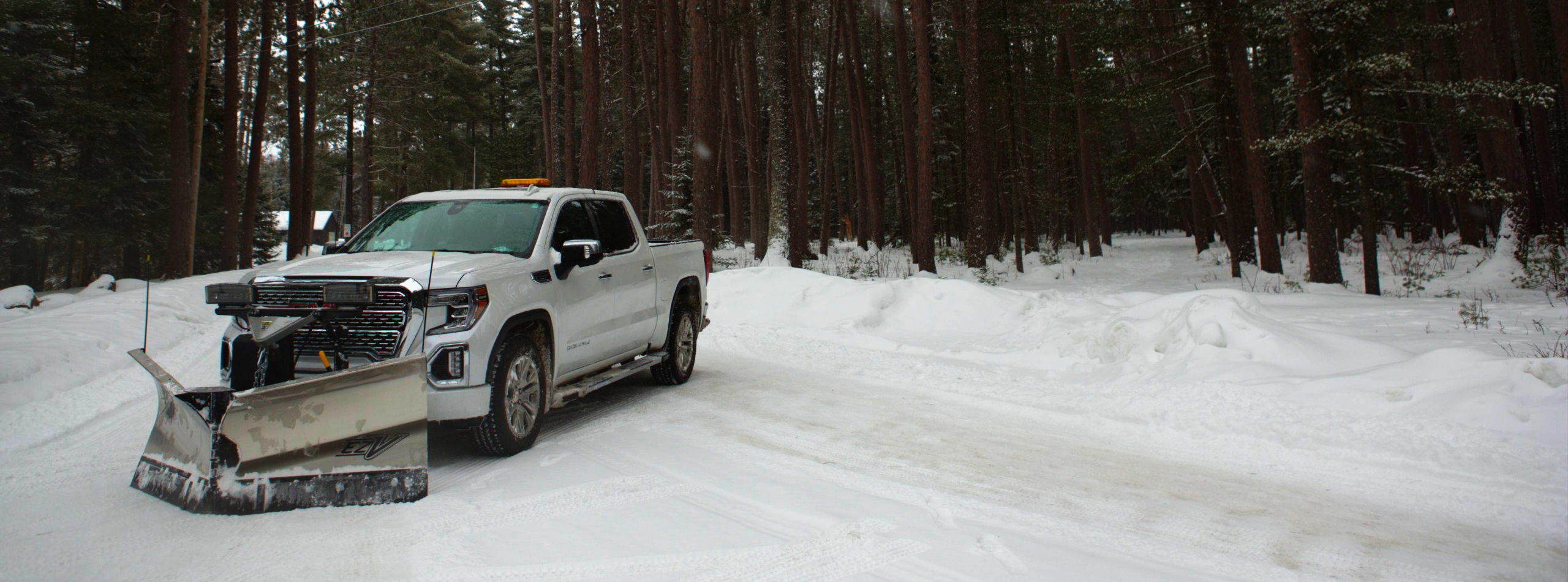

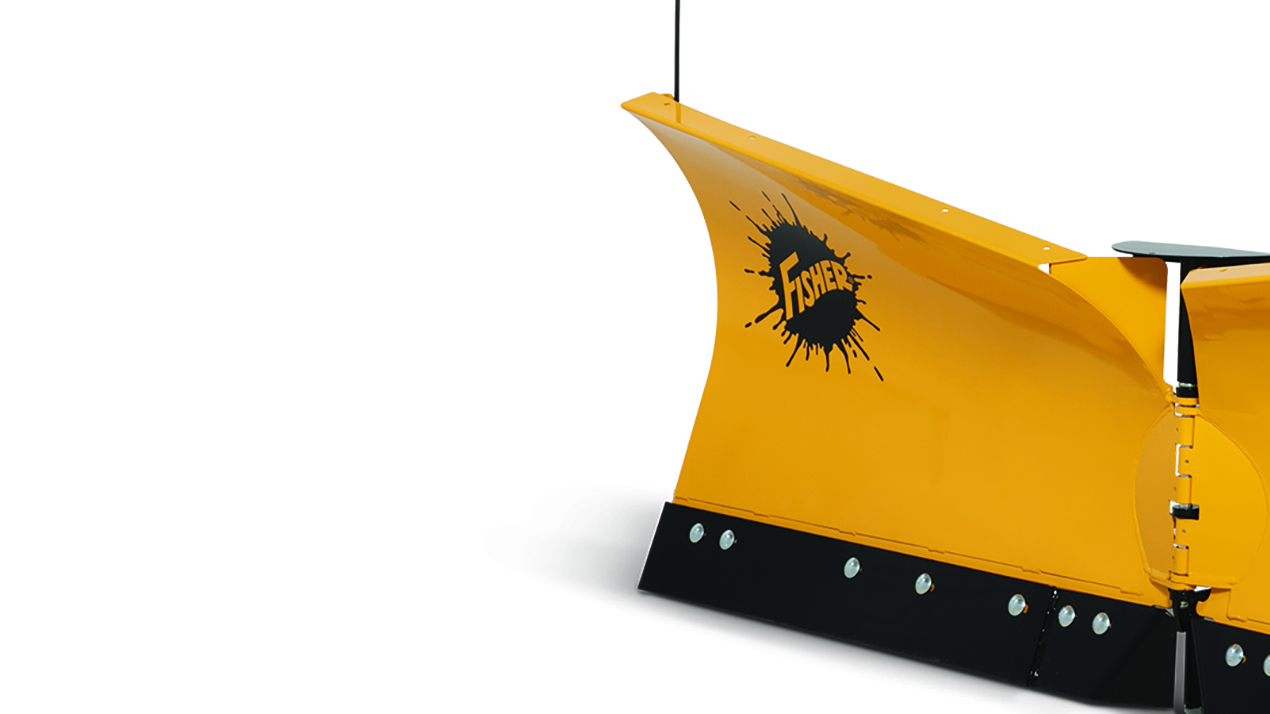

The EZ-V^® v-plow is constructed of high-strength, low alloy steel that makes it stronger and lighter than conventional steel, and the ideal weight for half-ton trucks. Available in premium, corrosion-resistant stainless steel or powder coated steel, the 7'6" wide v-plow features wings that soar from a 27" center height up to 33" at the outer edge.

The blade comes standard with a 6", high carbon steel cutting edge, providing increased wear resistance and a clean scrape.

An aggressive, 70-degree attack angle enhances scraping and back dragging, making it ideal for asphalt and paved surfaces, and for scraping up ice and hard-packed snow.

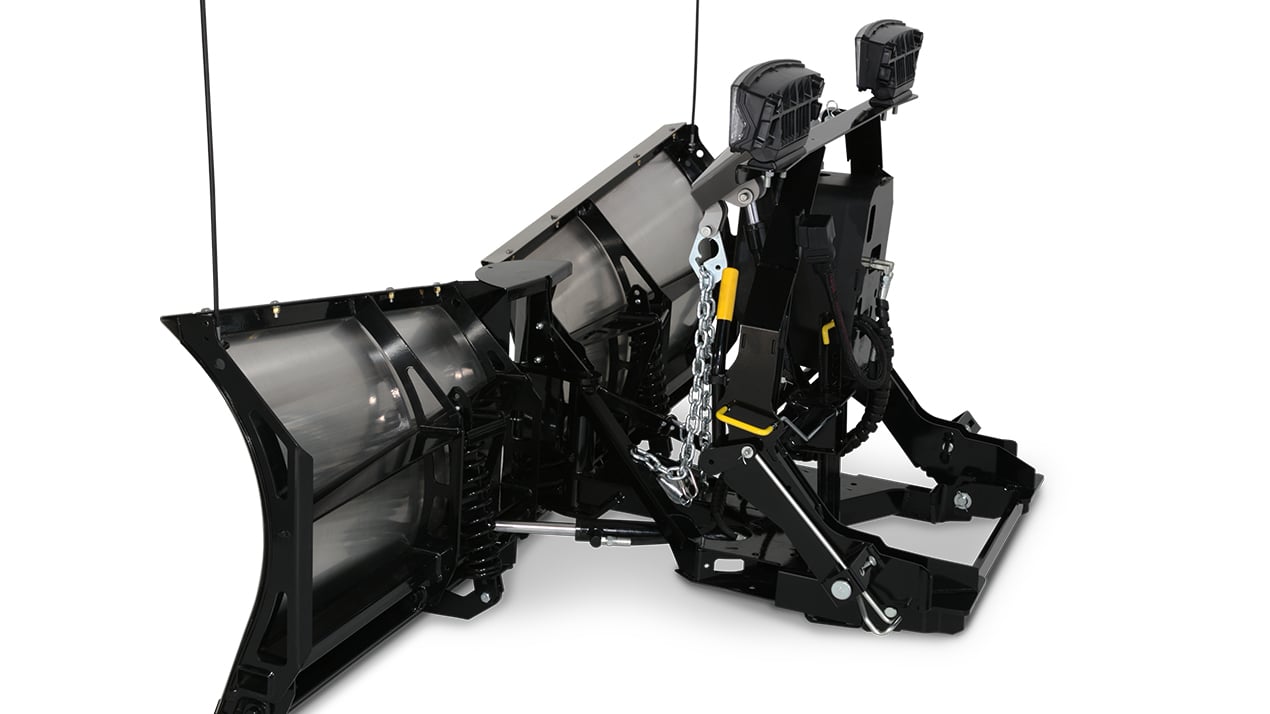

Structural Reinforcement

The EZ-V^® v-plow features six vertical ribs, plus two additional horizontal ribs on the stainless steel model, which reinforce the blade for structural integrity and exceptional torsional strength.

A ¾"-diameter, heat-treated steel center pin resides within a three-connection-point hinge for added strength and rigidity.

Reliable Hydraulics

We design and manufacture our own hydraulics to ensure the highest standards of performance, quality, and durability—giving you a plow that is fast, responsive, and built to last. This allows plow drivers to change the blade position quickly and easily for efficient plowing.

All critical hydraulic components are fully enclosed for protection from the elements.

Trip Protection

Each v-plow blade features independent trip-edge protection to get over bumps and hidden obstacles, whether in V, scoop, or straight-blade configuration, helping to protect the plow, the truck and the operator. Since only the bottom edge trips, snow stays in front of the blade, so you can keep on going without dumping the entire load of snow.

The FISHER^® trip edge uses compression-type springs that never require adjustment and will not wear out like extension springs.

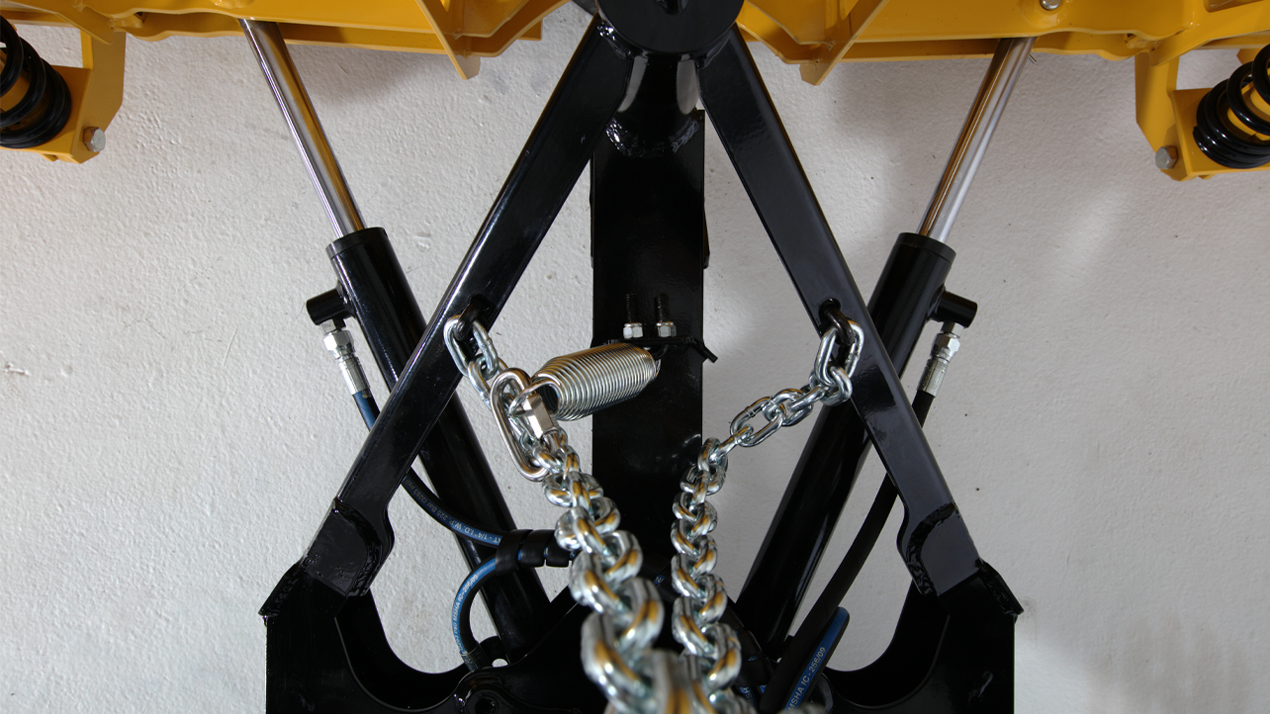

Double-Acting Cylinders

InstaLock double-acting cylinders allow the operator to lock the wings together to use the v-plow in straight blade mode with single button control. Double-acting cylinders also hold the wings firmly in place for clean, efficient back dragging.

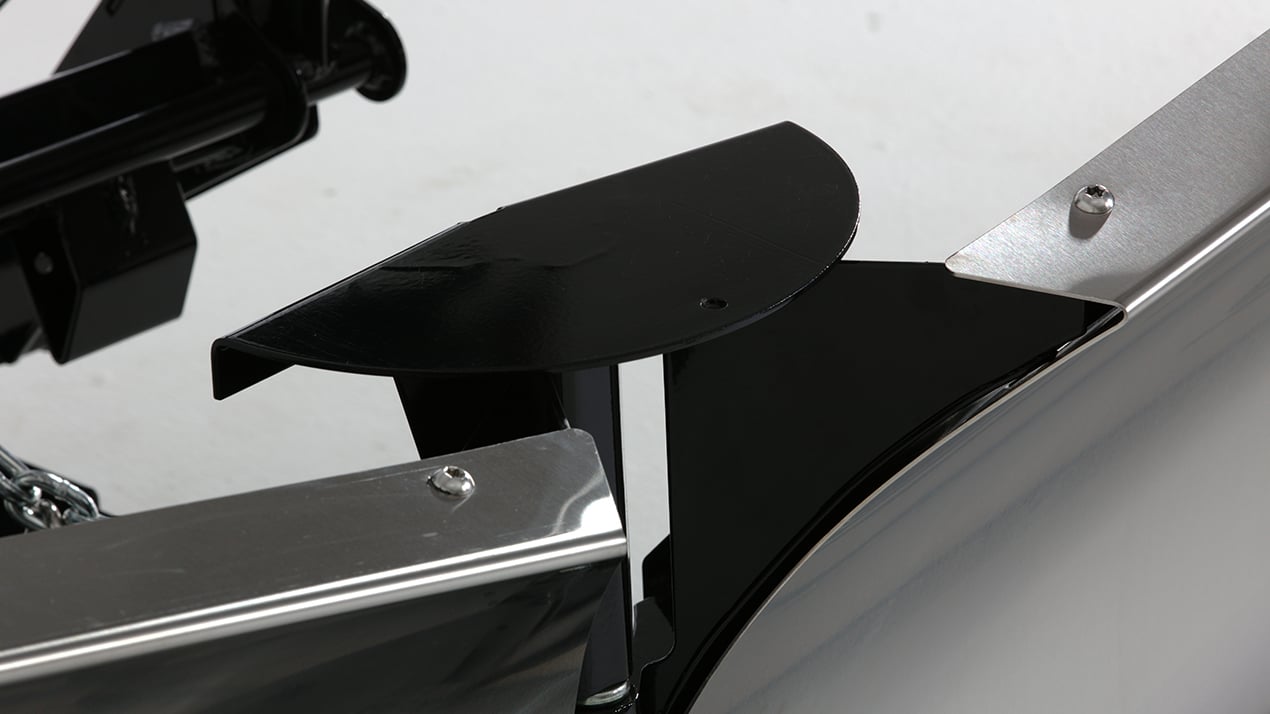

Center Snow Control

For exceptional snow containment in all positions, the EZ-V^® v-plow has a center deflector designed to prevent snow from going over the top of the blade and the formed cutting edges reduce trailing snow.

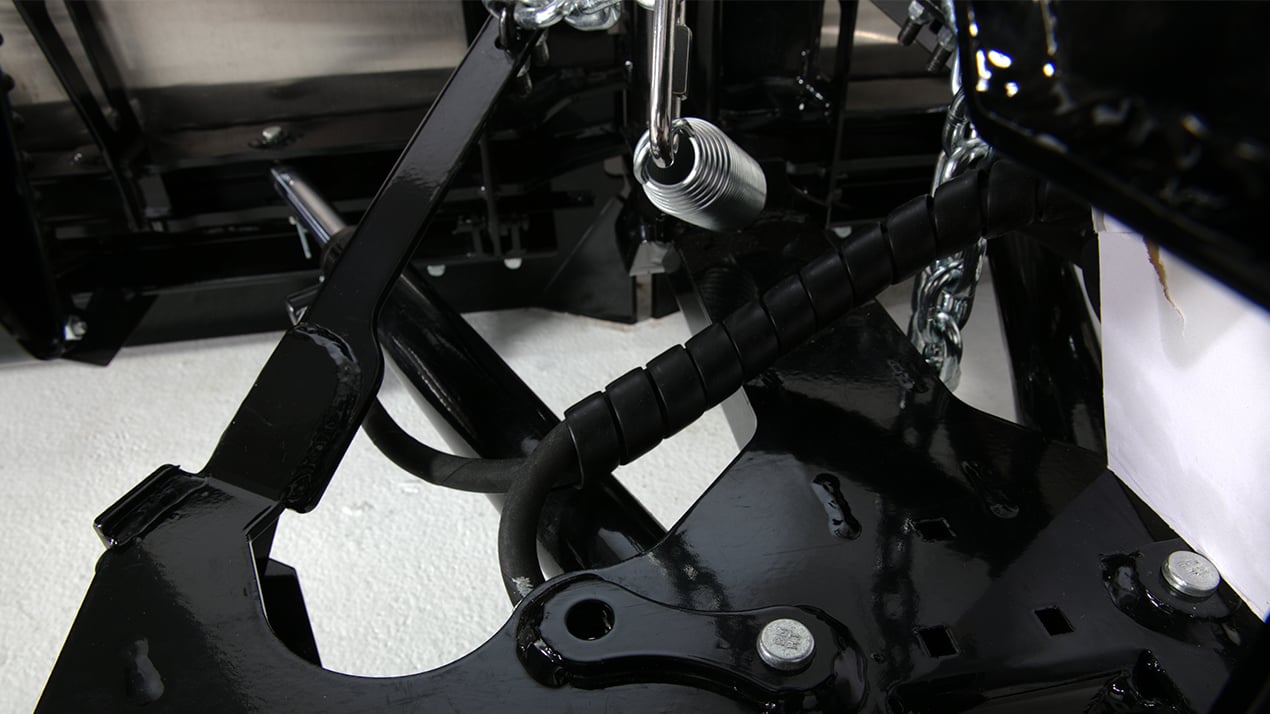

Adjustable Width Configuration

Configures to varying vehicle heights and widths in order to maintain optimum performance.

Hydraulic Cover

The fully enclosed hydraulic cover protects the hydraulic unit from the elements and does not require any tools to remove.

Universal Features

Featured Accessories

RUBBER DEFLECTOR

Dress up your blade and improve functionality with a genuine FISHER^® rubber deflector. Made from 2-ply heavy-duty rubber and accented with the FISHER logo, this easy-to-install Rubber Deflector Kit will provide improved visibility by deflecting snow forward instead of onto your windshield.

CURB WEAR KIT

Curbing can come out of nowhere sometimes. Protect your blade with a pair of genuine FISHER^® curb guards. Constructed of abrasion-resistant material and designed to fit tight to the blade, these curb guards will allow you to plow along curbs with confidence and precision, without damaging your blade.

CURB GUARD - CAST IRON KIT

Protect the outer edge of your plow with these simple-to-install curb guards, made out of cast iron for robust wear-resistance. The rounded profile also helps to reduce damage to curbing and the blade. Sold individually, not as a set.

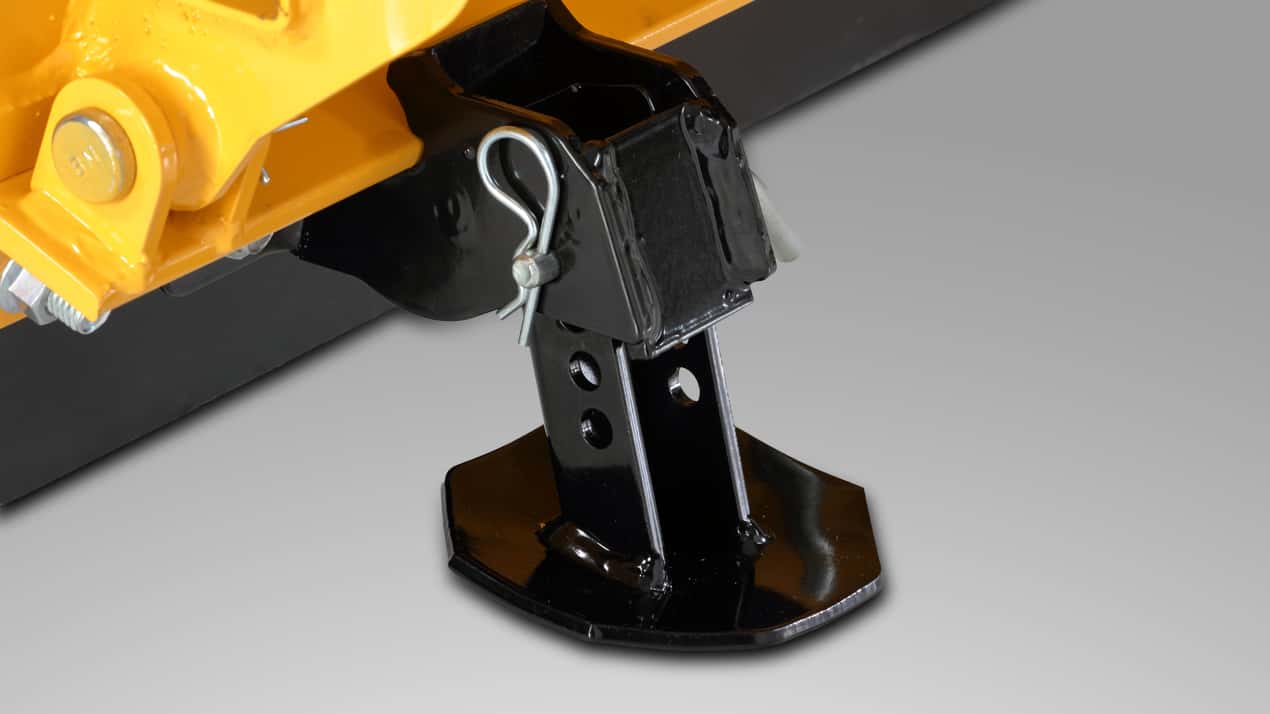

SHOE KIT

Ideal for dirt or crushed stone surfaces, a shoe kit will provide you with the ability to adjust the scraping height of the blade. Genuine FISHER^® shoes are made of abrasion-resistant steel for maximum longevity and durability. Shoe kits include two shoes and all mounting hardware for easy installation.

EXTREME WEAR SHOE KIT

Equip your half-ton v-plow for long roads, parking lots, and abrasive surfaces with the Extreme Wear shoe kit, reducing cutting edge wear and maintenance costs.

CUTTING EDGE – 1/2" STEEL

Keep your blade at the top of its game by installing a genuine FISHER^® cutting edge. Made of tough high carbon steel, a cutting edge will increase wear resistance and restore your worn base angle to the proper geometry which is vital to protect you and your equipment. Hardware and center edges included.

CUTTING EDGE - POLY

Sensitive surfaces found in many residential and commercial applications require a more forgiving approach. Reduce the risk of property damage with poly cutting edge kits.

BLADE STOP KIT

Beef up your blade and prepare for extreme plowing conditions with genuine FISHER^® Blade Stops, designed to transfer extreme impacts throughout the blade's structure and reduce stress on the hydraulic rams. This kit comes with all of the necessary hardware and instructions for easy installation.

BACK DRAG EDGE KIT

Achieve cleaner results and increased efficiency with a genuine back drag edge from FISHER. Made from 1/4 inch abrasion-resistant steel and custom fit to your blade, this back drag edge will improve results by providing a clean scrape while back dragging.

LED SECURITY KIT

Thwart opportunistic theft of LED plow lights with the Security Kit featuring tamper-resistant hardware, mounting bracket, and installation tool.

GRILLE PLATE

Create clean and professional looking snowplow installations using the new stainless steel grille plate kits. Customizable 11-pin and 14-pin kits create harness storage locations for any application.

COMMERCIAL BLADE GUIDE KITS

Commercial Blade Guides are made from durable and highly visible fluorescent orange material and feature FISHER^® branded reflective tape. Available in 24" or 36" lengths, these blade guides provide improved visibility and enhance your ability see the position of your blade.

PLOW PARKA

This heavy-duty FISHER^® branded nylon cover protects electrical and hydraulic systems and includes elastic sewn into the bottom for a tight, weather-resistant fit.

CONTROL CUP HOLDER MOUNT

The Control Cup Holder Mount is designed to fit firmly in most vehicle cup holders. It's a genuine, factory-tough accessory specifically engineered to securely hold FISHER^® hand-held or joystick controls and all types of smart phone devices (not included with mount). This flexible gooseneck mount has a 360-degree rotation and ensures optimal, customizable positioning.

DIELECTRIC GREASE

Keep your FISHER^® plow running strong. Apply our specially formulated dielectric grease after each use to prevent corrosion caused by electrolysis and highly corrosive de-icing agents.

FREEZE GUARD™ GREASE

Specially formulated to protect moving components in arctic mining conditions, this grease is ideal for bearings, hinges and pivot bolts on snow and ice control equipment. The custom formula maintains viscosity from -40 up to 300 degrees, and military-grade, corrosion-prevention additives protect equipment from corrosion without harmful environmental impact. FREEZE GUARD^™ Grease is available in cartridges, pails, totes and drums.

Specifications

Models	7' 6" SS	7' 6" PC
Blade Width	7' 6"	7' 6"
Blade Width	2.29 m	2.29 m
Blade Height	27" at Center 33" at End	27" at Center 33" at End
Blade Height	68.58 cm at Center 83.82 cm at End	68.58 cm at Center 83.82 cm at End
Blade Gauge	14 ga	14 ga
Blade Gauge	1.98 mm	1.98 mm
Trip Springs	2	2
Trip Springs	2	2
Ribs	6 Vertical 2 Horizontal	6 Vertical
Ribs	6 Vertical 2 Horizontal	6 Vertical
Lift Cylinder	1 ¼" x 8 ⅝"	1 ¼" x 8 ⅝"
Lift Cylinder	3.18 cm x 21.91 cm	3.18 cm x 21.91 cm
Angling Rams	1 ½" x 12"	1 ½" x 12"
Angling Rams	3.81 cm x 30.48 cm	3.81 cm x 30.48 cm
Plowing Width	6' 7" Full Angle 6' 5" Scoop 6' 9" Full V	6' 7" Full Angle 6' 5" Scoop 6' 9" Full V
Plowing Width	2.01 m Full Angle 1.96 m Scoop 2.06 m Full V	2.01 m Full Angle 1.96 m Scoop 2.06 m Full V
Approx. Weight*	553 lb	508 lb
Approx. Weight*	250.84 kg
Cutting Edge	⅜" x 6"	⅜" x 6"
Cutting Edge	230.43 kg	230.43 kg
Mount Type	Minute Mount^® 2	Minute Mount^® 2
Mount Type	Minute Mount^® 2	Minute Mount^® 2
