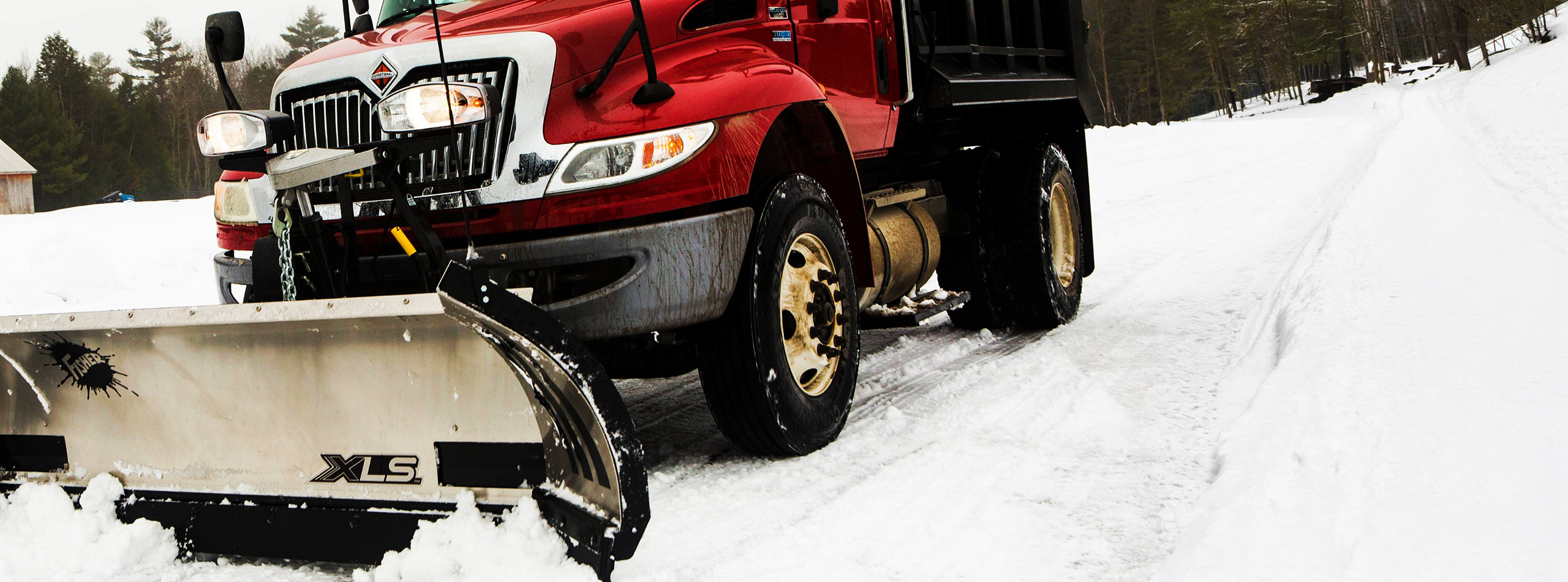

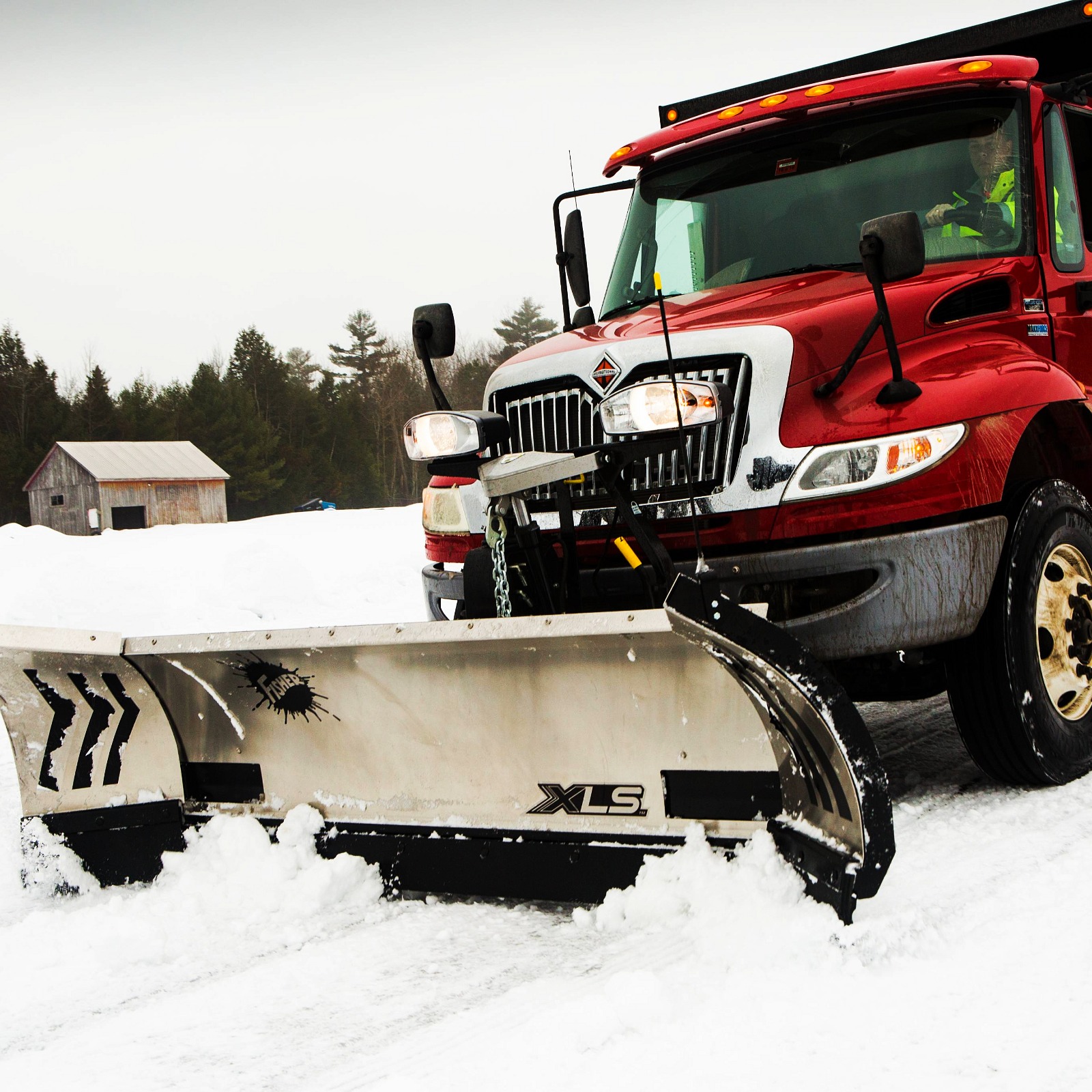

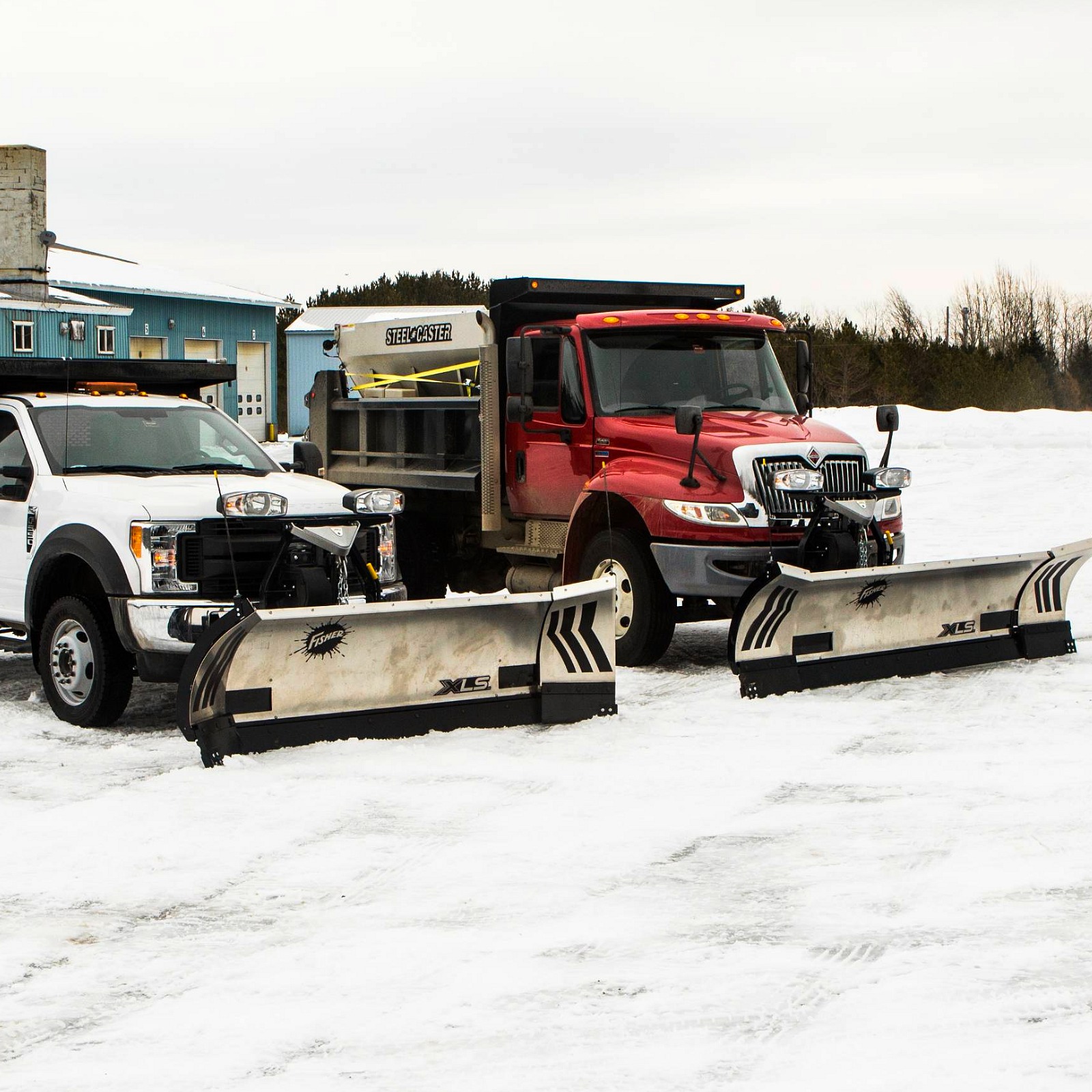

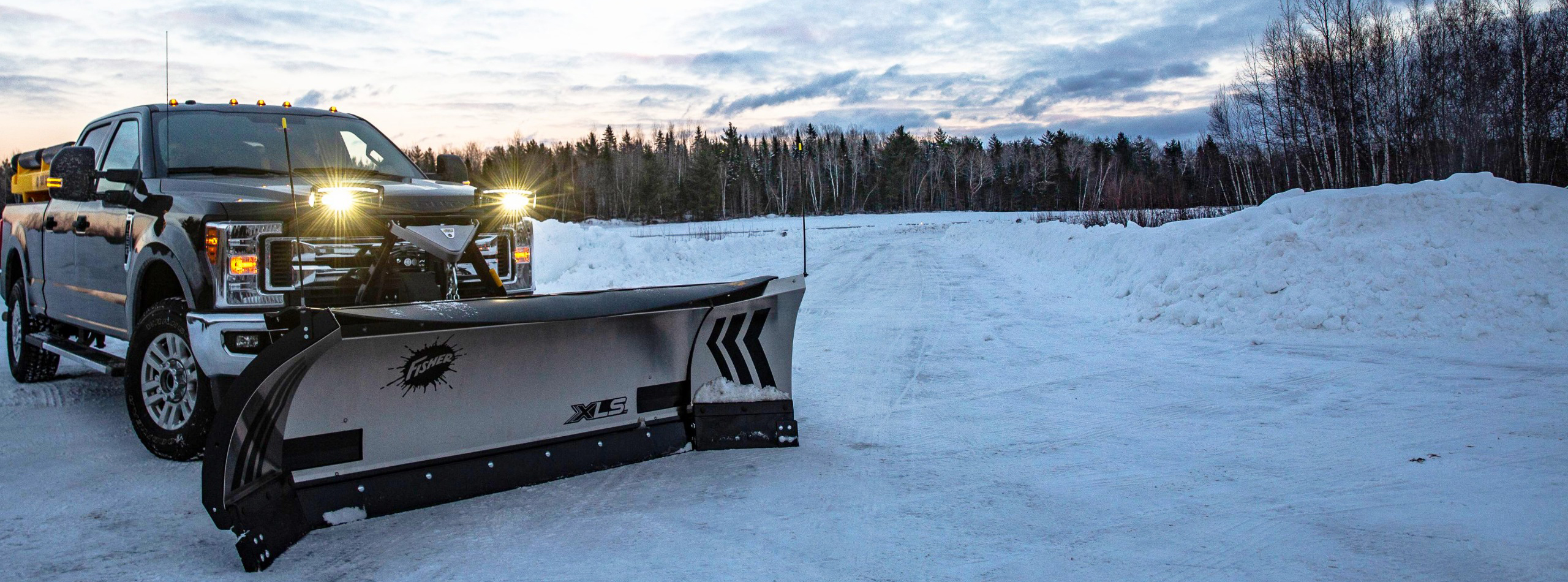

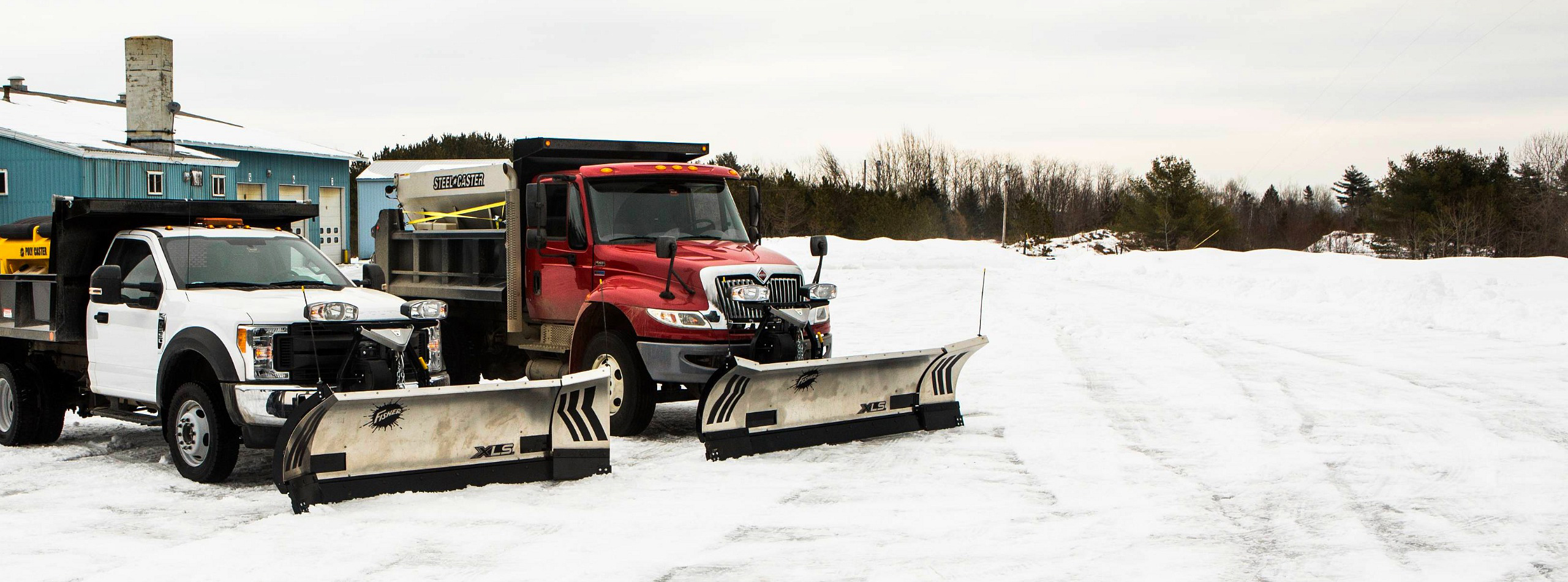

Winged Snowplow

When Winter Attacks, Fight Back in a Big Way

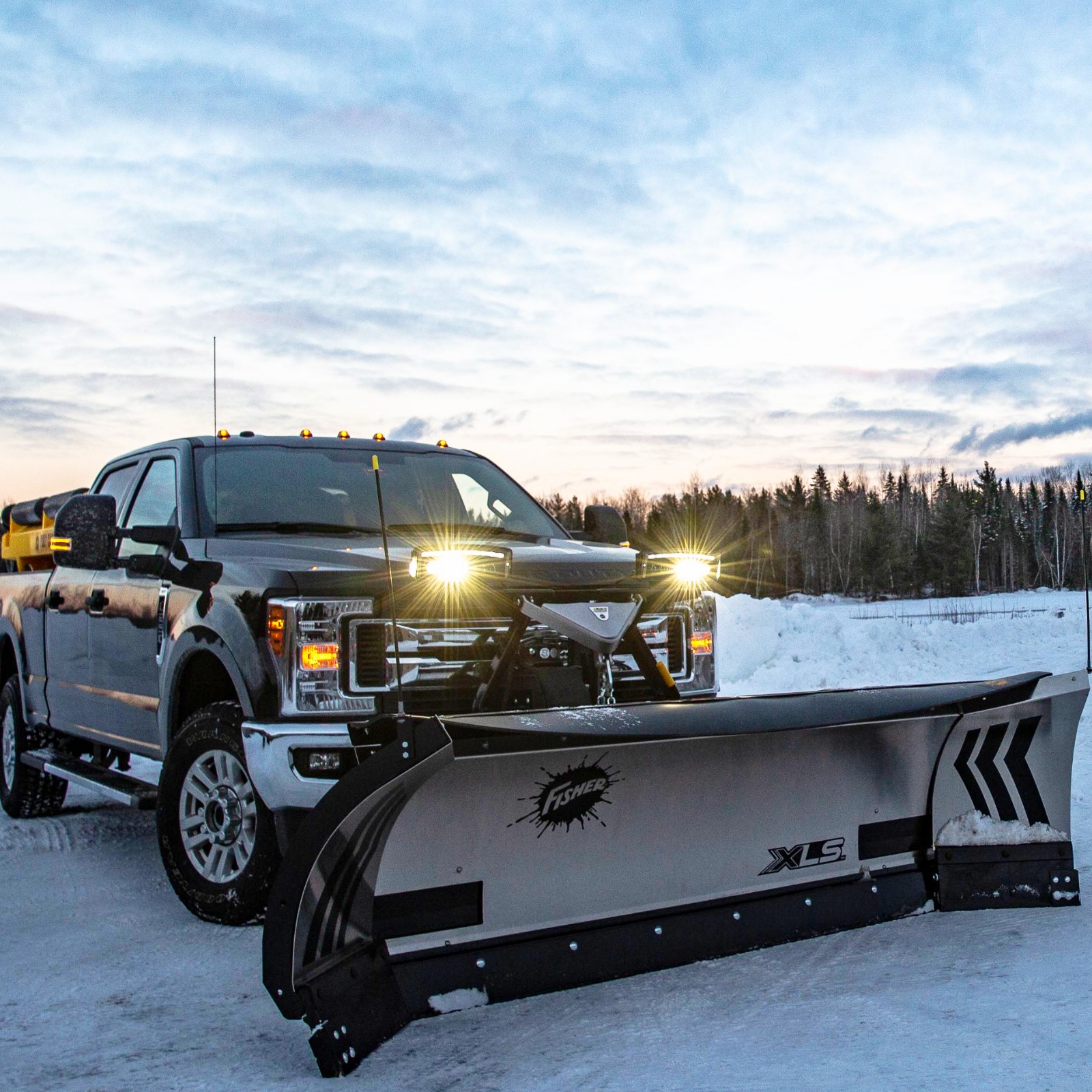

When winter attacks, fight back in a big way. The next generation of the XLS^™* expandable wing snowplows delivers a whole new level of versatility, efficiency and performance. The only expandable plow with independent wing control and trip-edge protection, the XLS plows come with flared wings and are available in two blade sizes: 8’–10′ and 8’6″–11′. They are built bigger and stronger to carry more snow and accommodate larger trucks. Maximize handling and capacity with unmatched windrowing productivity so you can continue doing what you do, more efficiently and profitably.

Type of Snowplow

Winged

Unique Features

Plow Blade Construction
Expandable to 11'
Structural Reinforcement
Heavy-Duty Slide Box
Flared Wings for Efficiency
Reliable Hydraulics
Trip Protection
Tractor Compatible Mount

Plow Blade Construction

Available in powder coat or stainless steel, the XLS snow plow is available in two blade widths.

The 31" tall, 14-gauge moldboard features independent wing control and comes standard with a 6" high-carbon steel cutting edge, increasing wear resistance, and the poly wing cutting edges feature trip protection. The blade is also pre punched for easy accessory installation.

Expandable to 11'

The 8' XLS retracted blade extends to 10'. Angle the 35" flared wings forward for an 8' 10" scoop position. The 8' 6" XLS retracted blade extends to 11'. You can also angle the 36" flared wings forward for a 9' 10" scoop position.

Structural Reinforcement

The next generation XLS™ snow plow features a heavy-duty torque tube and ten vertical ribs for substantial structural support. The tough construction of this channel provides rigidity and blade strength to eliminate buckling under extremely heavy forces.

Heavy-Duty Slide Box

Hydraulic wing extensions slide laterally across the structurally reinforced slide box, constructed with 3/16" heavy-grade steel to maximize snow removal capacity without buckling.

Flared Wings for Efficiency

The XLS plows feature flared wings as tall as 36" to maximize snow plowing efficiency at the touch of a button with Retracted Straight, Expanded Straight, Windrow and Scoop modes. The flared-wing design can aggressively cast snow further while windrowing, making it the ultimate windrowing machine. The wings expand forming an even larger plow to move more snow and can retract for transport. The flared wings can be controlled independently, quickly changing the plow configuration from retracted to expanded, to scoop and to windrow.

Learn more

Reliable Hydraulics

We design and manufacture our own hydraulics to ensure the highest standards of performance, quality, and durability—giving you a plow that is fast, responsive, and built to last. This allows plow drivers to change the blade position quickly and easily for efficient plowing.

All critical hydraulic components are fully enclosed for protection from the elements.

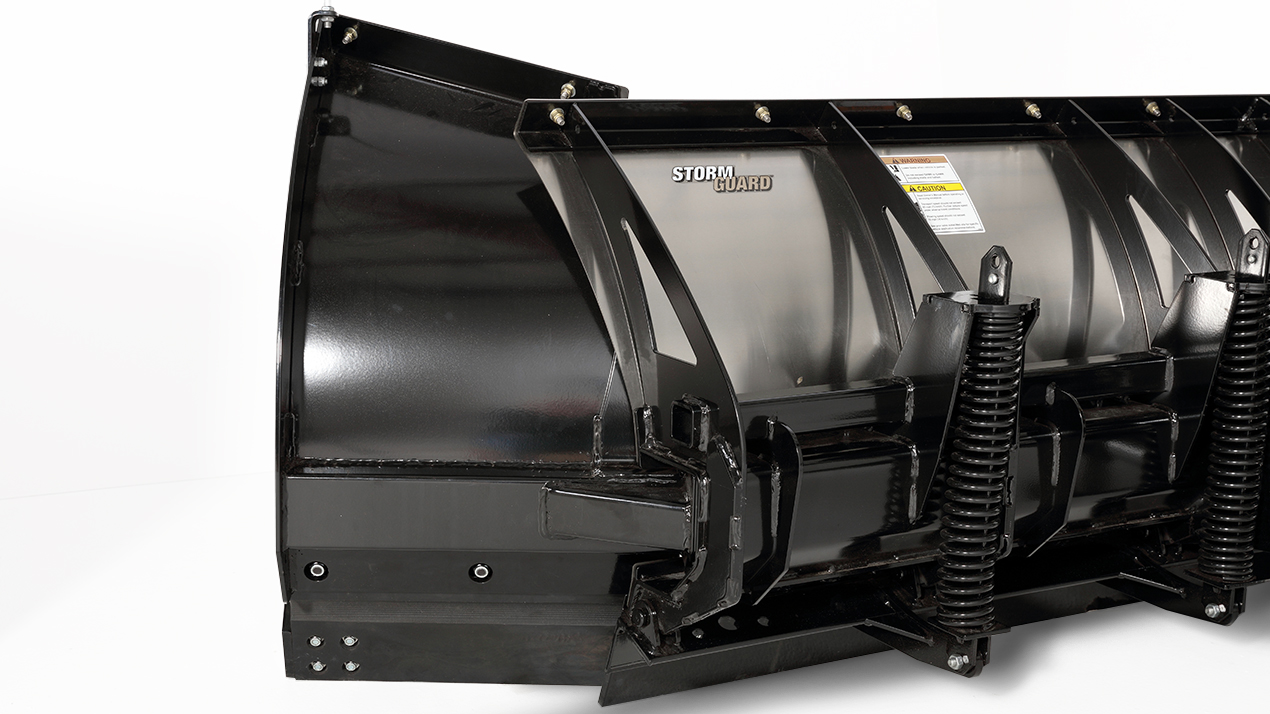

Trip Protection

Our industry-leading trip-edge design protects you and your equipment when encountering hidden obstacles. For improved efficiency and less cleanup, only the bottom edge trips, keeping the blade upright and plowed snow in front of the blade.

The FISHER® trip edge uses compression-type springs that never require adjustment and will not wear out like extension springs.

The XLS™ wings feature polyurethane cutting edges designed specifically to provide added trip protection.

Tractor Compatible Mount

Designed for easy installation onto a wide range of tractor models, these mount kits make it possible for the XLS™ winged plow to fit on a compact tractor. They are flared both vertically and horizontally to ensure proper alignment and make the drive-in connection easier. The push beam, which makes up the front portion of the mount, can be quickly detached to allow for a loader attachment.

Universal Features

Featured Accessories

10" RUBBER DEFLECTOR

Dress up your blade and improve functionality with a genuine FISHER^® rubber deflector. Made from 2-ply, heavy-duty rubber and accented with the FISHER logo, this easy-to-install Rubber Deflector Kit will provide improved visibility by deflecting snow forward instead of onto your windshield.

SHOE KIT

Ideal for dirt or crushed stone road surfaces, a shoe kit will provide you with the ability to adjust the scraping height of the blade. Genuine FISHER^® shoes are made of cast iron for maximum longevity and durability. Shoe kits include two shoes and all mounting hardware for easy installation. (The shoe kit is not compatible with the use of a back drag edge.)

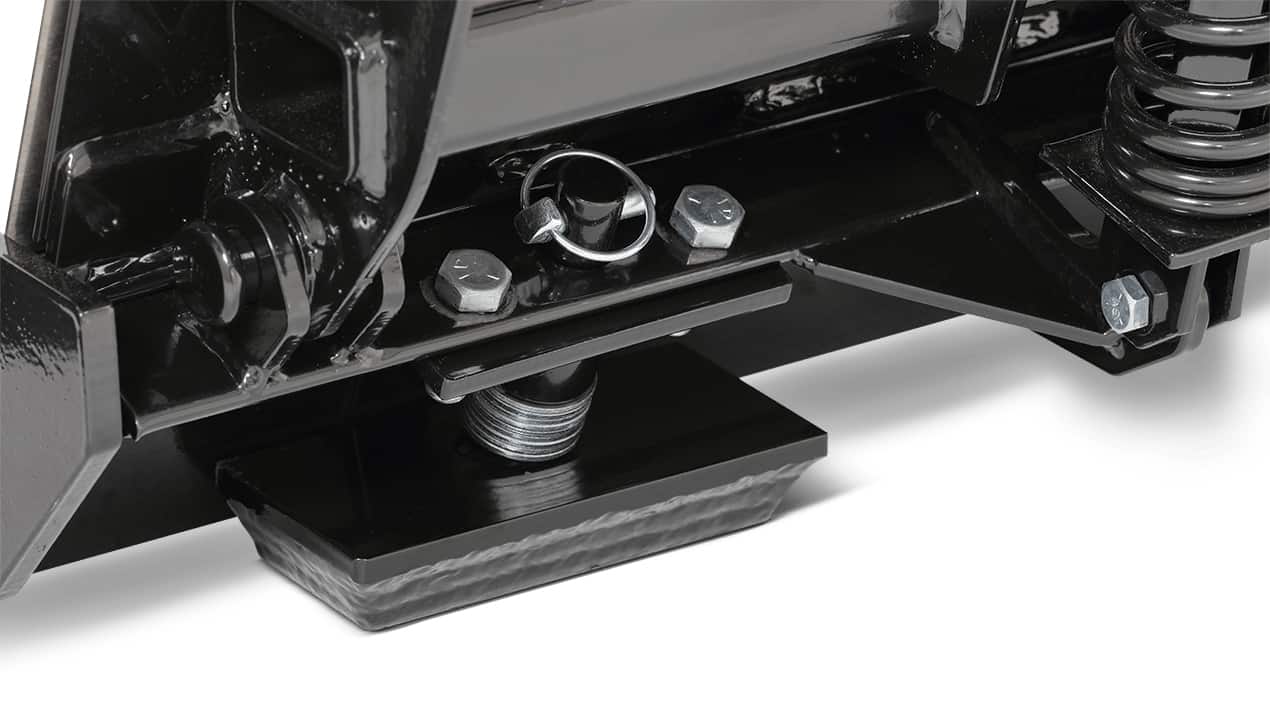

HIGH WEAR SHOE KIT

Improve blade float or reduce cutting edge wear rates with the new High Wear Shoe Kit. Composed of wear resistant AR400 material, these kits are less brittle, offer better wear rates than cast iron and are designed with aggressive municipal and commercial plowing applications in mind.

CUTTING EDGE - 5/8" STEEL

Keep your blade at the top of its game by installing a genuine FISHER^® cutting edge. Made of tough, high-carbon steel, a cutting edge will increase wear resistance and restore your worn base angle to the proper geometry which is vital to protect you and your equipment.

CUTTING EDGE - CARBIDE

Looking for a cutting edge with extreme wear resistance? You need to experience one of these genuine FISHER^® carbide cutting edges. Made from 3/4" high-carbon steel with a carbide insert, this cutting edge can provide up to 15 times the service life of other cutting edges, keeping you out plowing and improving your bottom line.

POLY MOLDBOARD CUTTING EDGE

The 1” resilient compound poly edges on the XLS snow plow moldboard help protect decorative concrete, driveways, and other delicate surfaces.

BACK DRAG EDGE

Achieve cleaner results and increased efficiency with a genuine back drag edge from FISHER^®. Made from 1/4" abrasion-resistant steel and custom fit to your blade, this back drag edge will improve results by providing a clean scrape while back dragging.

COMMERCIAL BLADE GUIDE KITS

Commercial Blade Guides are made from durable and highly visible fluorescent orange material and feature FISHER^® branded reflective tape. Available in 24" or 36" lengths, these blade guides provide improved visibility and enhance your ability see the position of your blade.

GRILLE PLATE

Create clean and professional looking snowplow installations using the new stainless steel grille plate kits. Customizable 11-pin and 14-pin kits create harness storage locations for any application.

LED SECURITY KIT

Thwart opportunistic theft of LED plow lights with the Security Kit featuring tamper-resistant hardware, mounting bracket, and installation tool.

PLOW PARKA

This heavy-duty FISHER^® branded nylon cover protects electrical and hydraulic systems and includes elastic sewn into the bottom for a tight, weather-resistant fit.

CONTROL CUP HOLDER MOUNT

The Control Cup Holder Mount is designed to fit firmly in most vehicle cup holders. It's a genuine, factory-tough accessory specifically engineered to securely hold FISHER^® hand-held or joystick controls and all types of smart phone devices (not included with mount). This flexible gooseneck mount has a 360-degree rotation and ensures optimal, customizable positioning.

FREEZE GUARD™ GREASE

Specially formulated to protect moving components in arctic mining conditions, this grease is ideal for bearings, hinges and pivot bolts on snow and ice control equipment. The custom formula maintains viscosity from -40 up to 300 degrees, and military-grade, corrosion-prevention additives protect equipment from corrosion without harmful environmental impact. FREEZE GUARD^™ Grease is available in cartridges, pails, totes and drums.

Specifications

Models	8'-10' (180209-lower)	8'-10' (180210-higher)	8' 6"-11'
Blade Width	8' Retracted 10' Expanded 8' 10" Scoop	8' Retracted 10' Expanded 8' 10" Scoop	8' 6" Retracted 11' Expanded 9' 10" Scoop
Blade Width	2.44 m Retracted 3.05 m Extended 2.69 m Scoop	2.44 m Retracted 3.05 m Extended 2.69 m Scoop	2.59 m Retracted 3.35 m Extended 3 m Scoop
Blade Height	29"	31" at Center 35" at End	31" at Center 36" at End
Blade Height	73.66 cm	78.74 cm at Center 88.9 cm at End	78.74 cm at Center 91.44 cm at End
Blade Gauge	12	14	14
Blade Gauge	2.66 mm	2.1 mm	2.1 mm
Trip Springs	4	4	4
Trip Springs	4	4	4
Vertical Ribs	10	10	10
Vertical Ribs	10	10	10
Lift Cylinder	1 ½" x 10"	1 ¾" x 10"	1 ¾" x 10"
Lift Cylinder	3.81 cm x 25.40 cm	4.45 cm x 25.40 cm	4.45 cm x 25.40 cm
Angling Rams	1 ½" x 10"	1 ½" x 10"	1 ½" x 10"
Angling Rams	3.81 cm x 25.40 cm	3.81 cm x 25.40 cm	3.81 cm x 25.40 cm
Plowing Width	7' 2" Retracted 9' Expanded 7' 11" Scoop	7' 2" Retracted 9' Expanded 7' 11" Scoop	7' 11" Retracted 10' 6" Expanded 9' 6" Scoop
Plowing Width	2.18 m Retracted 2.74 m Expanded 2.41 m Scoop	2.18 m Retracted 2.74 m Expanded 2.41 m Scoop	2.41 m Retracted 3.20 m Expanded 2.90 m Scoop
Approx. Weight*	985 lb	1,107 lb	1,140 lb
Approx. Weight*	446.79 kg	502.13 kg	517.10 kg
Blade Cutting Edge	Optional	½" x 6" Steel	½" x 6" Steel
Blade Cutting Edge	Optional	1.27 cm x 15.24 cm Steel	1.27 cm x 15.24 cm Steel
Wing Cutting Edge	1 ½" x 9" Polyurethane	1 ½" x 9" Polyurethane	1 ½" x 9" Polyurethane
Wing Cutting Edge	3.81 cm x 22.86 cm Polyurethane	3.81 cm x 22.86 cm Polyurethane	3.81 cm x 22.86 cm Polyurethane
Mount Type	Minute Mount^® 2	Minute Mount^® 2	Minute Mount^® 2
Mount Type	Minute Mount^® 2	Minute Mount^® 2	Minute Mount^® 2
