TRAILBLAZER^™ Mid-Duty

UTV STRAIGHT BLADE PLOWS

PUT YOUR UTV TO WORK

TRAILBLAZER^™ Mid-Duty

UTV STRAIGHT BLADE PLOWS

PUT YOUR UTV TO WORK

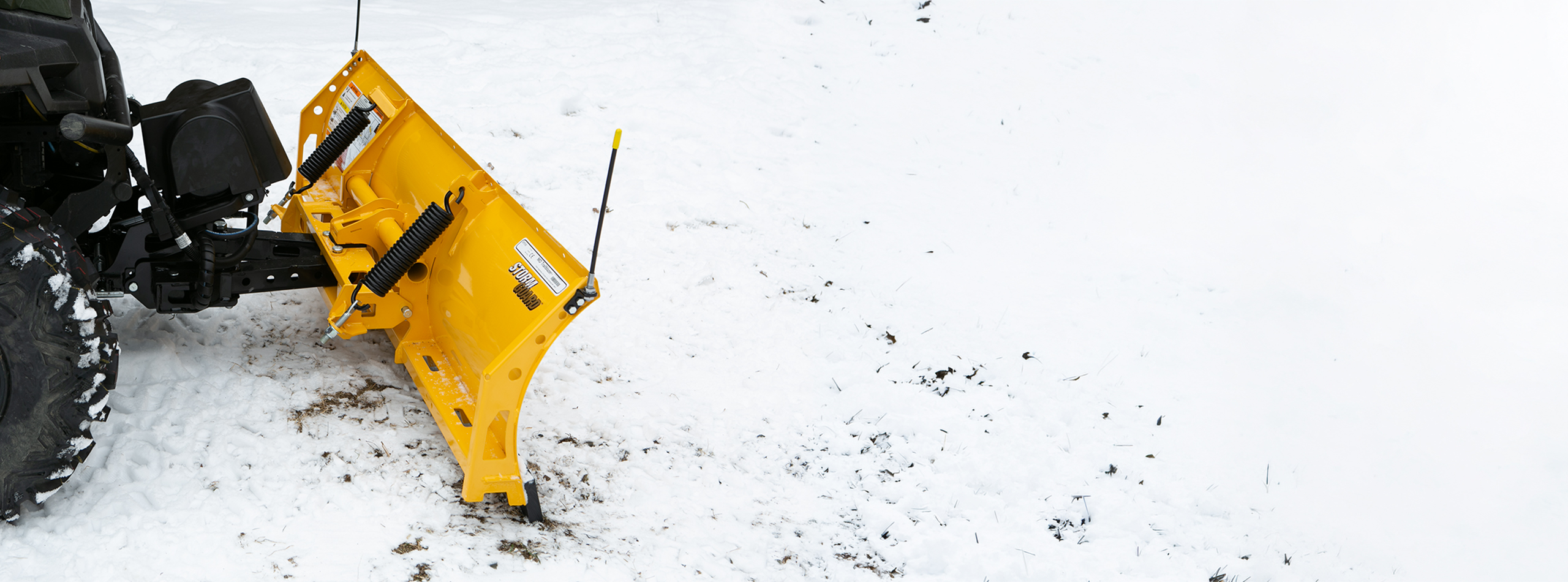

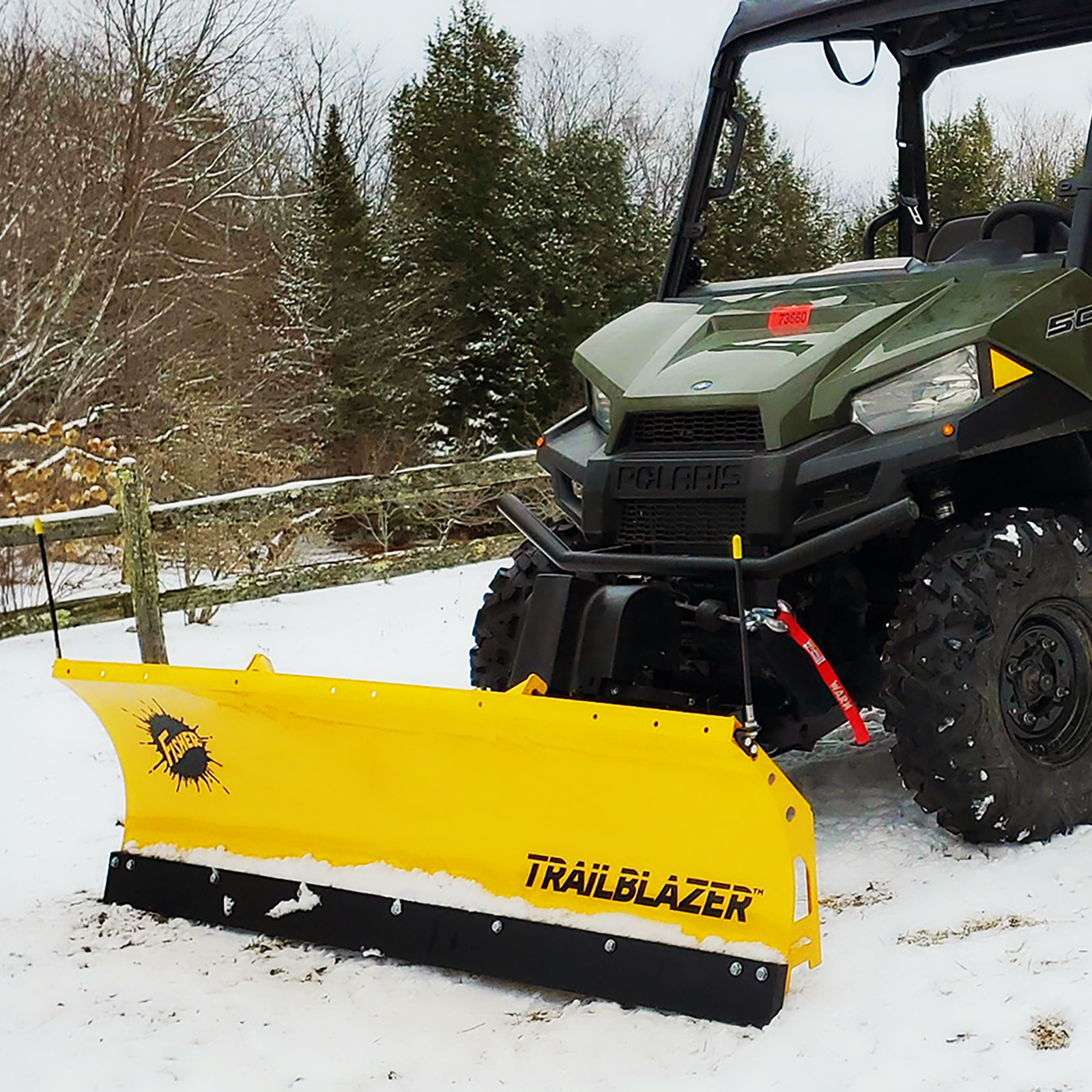

UTV Snowplow

Maximize the Performance of Your UTV

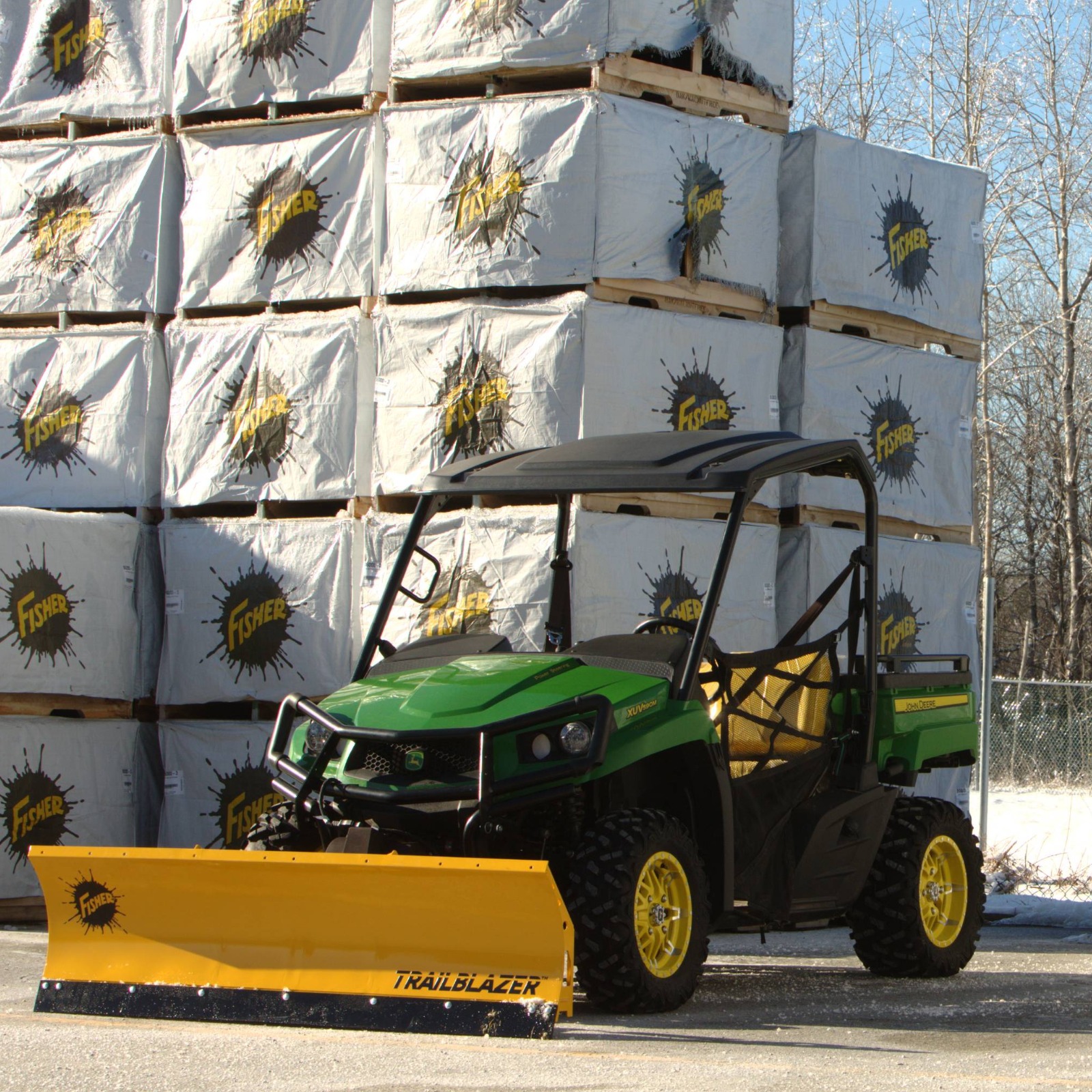

Make short work of sidewalk, driveway, and pathway clean-up with the FISHER^® TRAILBLAZER™ mid-duty UTV straight blade plows. Packages available in either full hydraulic lift and angle or winch lift manual angle versions. The blade is available in two widths, 5’6″ or 6’0”—the 5’6″ blade widths are perfect for sidewalks and 6’0″ blades are ideal for wider areas/driveways. Constructed of high-strength, low-alloy steel components that are both stronger and lighter than traditional steel, these plows are purpose-built with professional grade features for your mid-duty sport or recreational utility vehicle.

Type of Snowplow

UTV

Unique Features

Winch Lift Operation
Sway-Frame™ Design
Reliable Hydraulics*
Lightweight Quick Mounting System
Ground Clearance
Blade Construction
Structural Reinforcement
Trip Protection
Weatherproof Plow Control*

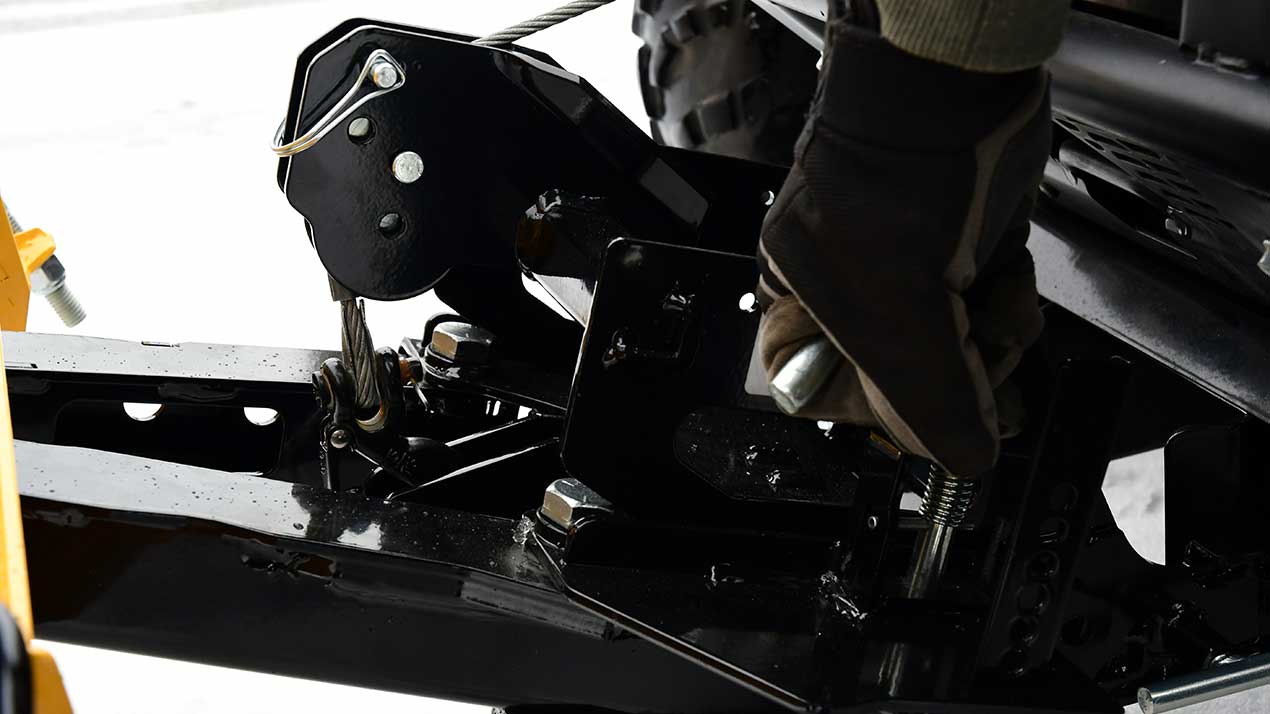

Winch Lift Operation

The winch lift version comes with many of the features that the hydraulic lift version offers, including the unique Sway-Frame™ design and with two blade widths: 66 and 72 inches. The ultra-light winch system comes with a unique bail design to reduce side stress on the winch assembly equipped on the vehicle and provides a more vertical lift.

Angling the plow is as easy as unpinning an assembly, manually moving the blade to your desired point, and pinning it back in just a few seconds. The mounting system is easy to install and use, as it is identical to the powered version. Its design optimizes ground clearance and is built tough to withstand harsh winter environments year after year.

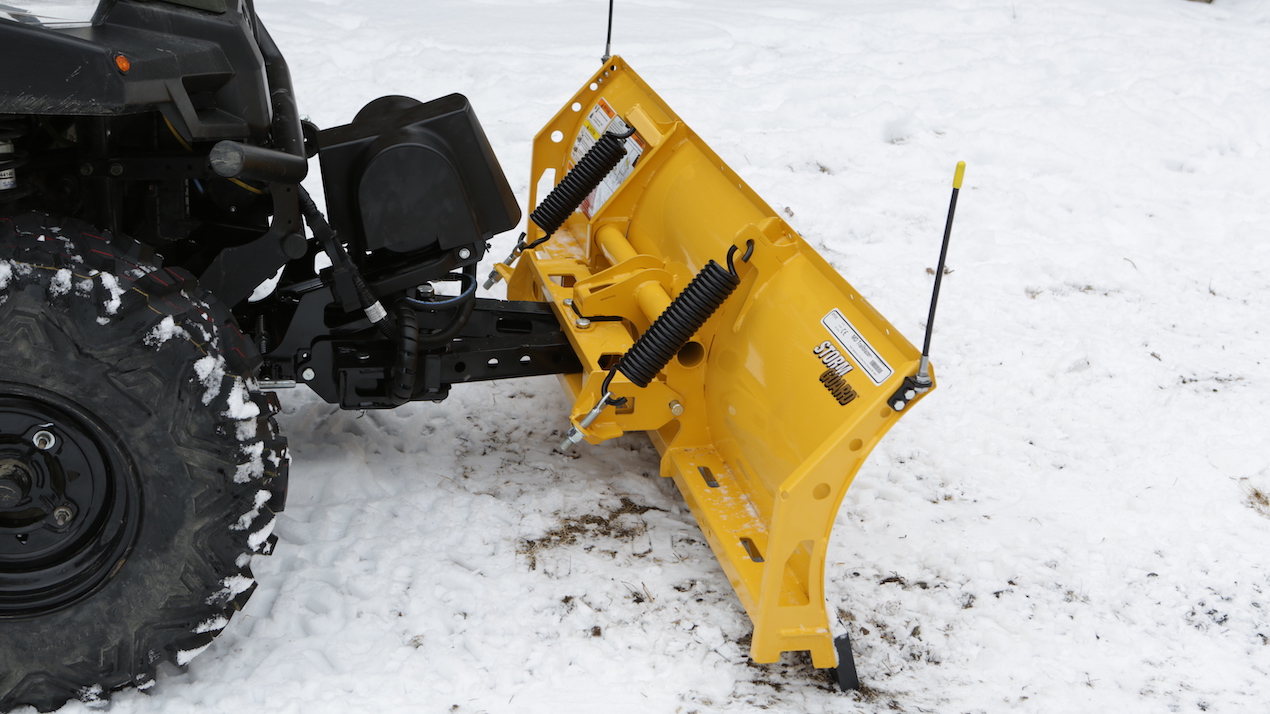

Sway-Frame™ Design

The exclusive patent-pending Sway-Frame design lets the blade shift side-to-side aligning the blade with the wheel track. This keeps the blade in the best position to ensure optimal cleanup and helps to prevent the UTV wheels from packing down missed snow.

Reliable Hydraulics*

We design and manufacture our own hydraulics to ensure the highest standards of performance, quality, and durability—giving you a plow that is fast, responsive, and built to last. This allows plow drivers to change the blade position quickly and easily for efficient plowing from inside the cab. Designed to operate on mid-duty UTV plows, the hydraulic system minimizes amperage draw and weight for seamless operation. All critical hydraulic components are fully enclosed for protection from the elements.

*Available for hydraulic models only.

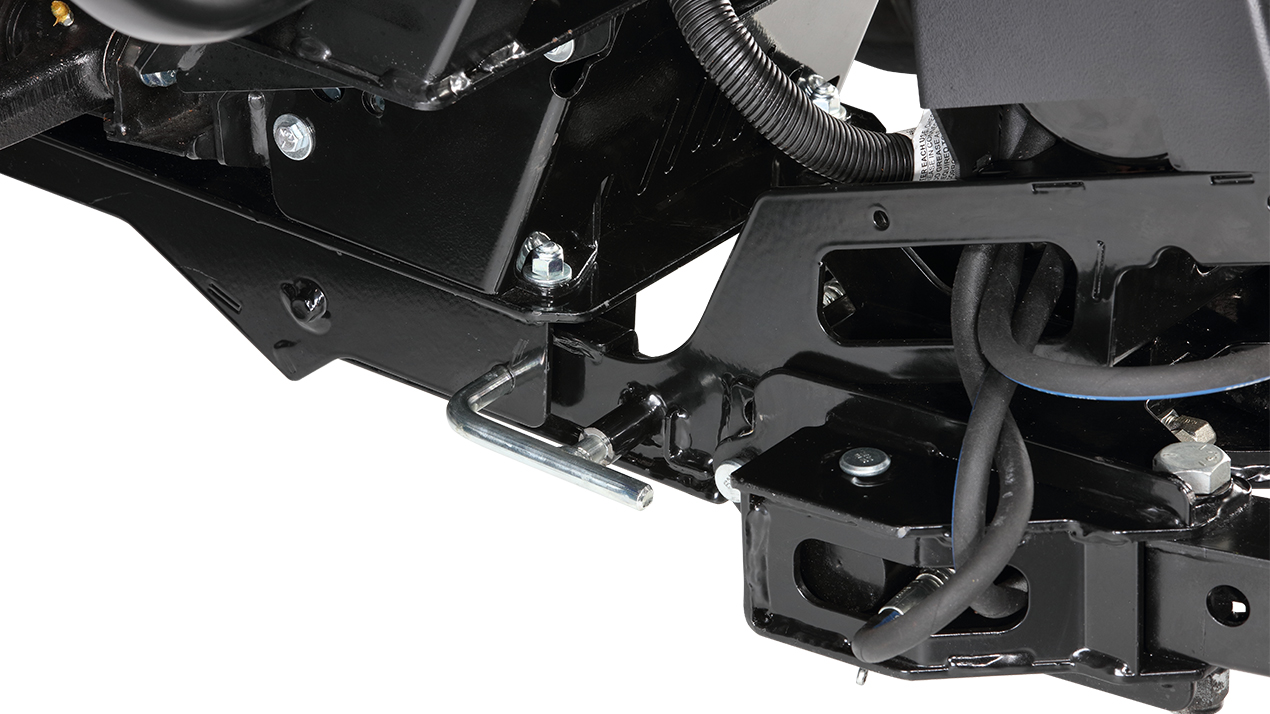

Lightweight Quick Mounting System

To make operation smoother, the easy-to-use mounting system optimizes ground clearance when installed. Durable construction allows the mounting system to withstand the toughest conditions year after year.

Ground Clearance

Receiver brackets can be easily removed, restoring your vehicle back to its original ground clearance when the plow is not in use.

*Not applicable to some mounts

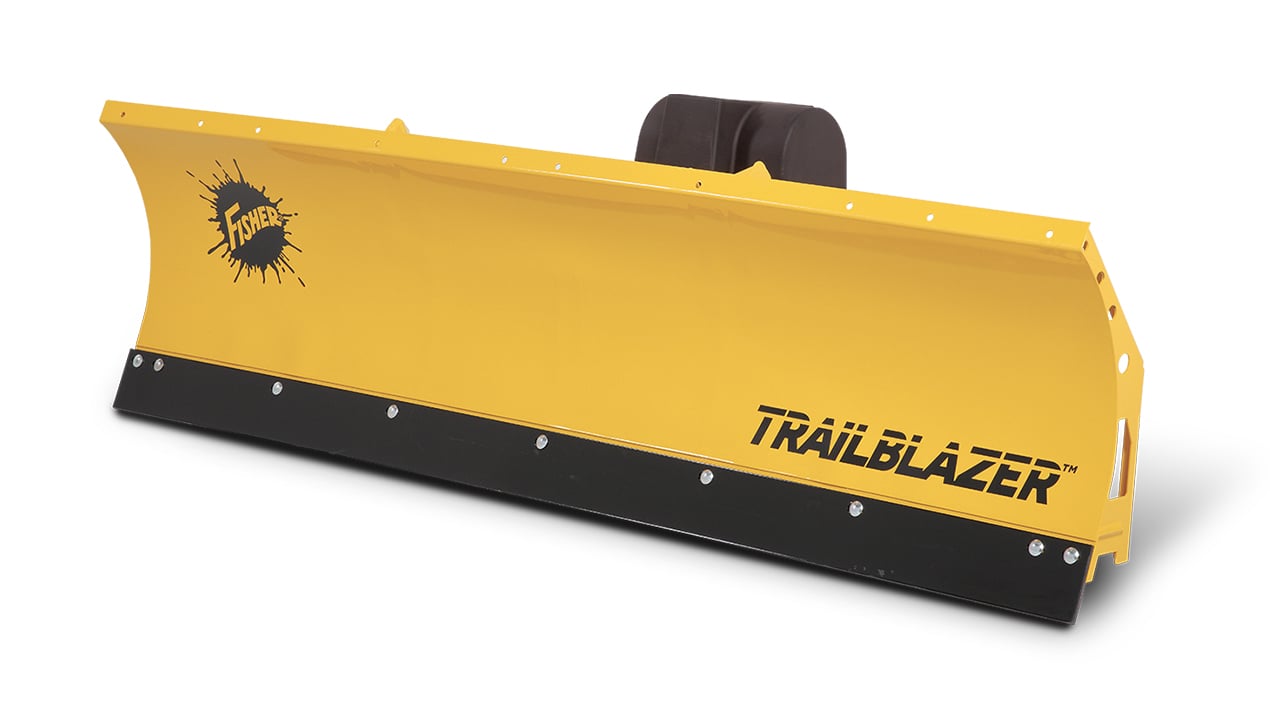

Blade Construction

The TRAILBLAZER™ Mid-Duty straight blade snow plow features a 14-gauge powder coated steel moldboard that is 5' 6" or 6' 0" wide with a standard 5" steel cutting edge.

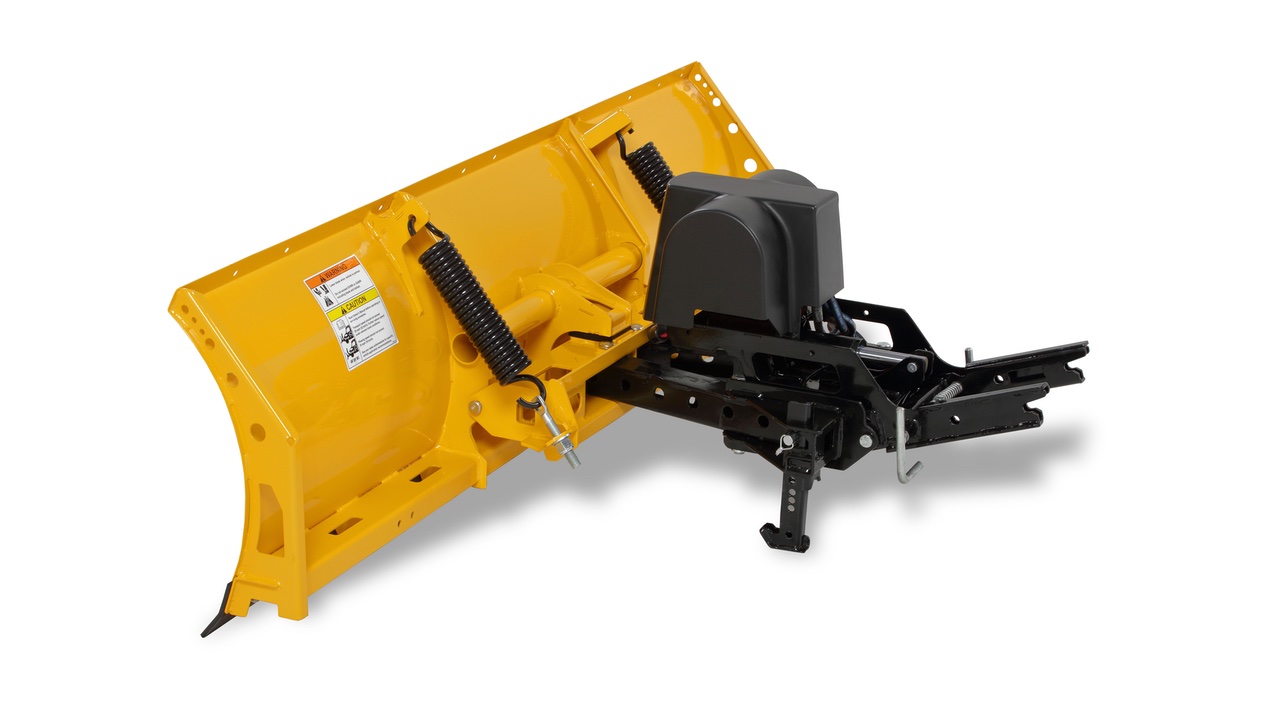

Structural Reinforcement

With four vertical ribs and high-strength, low alloy steel construction, the mid-duty straight blade is strong enough for commercial operation yet light enough to fit most mid-duty UTVs.

Trip Protection

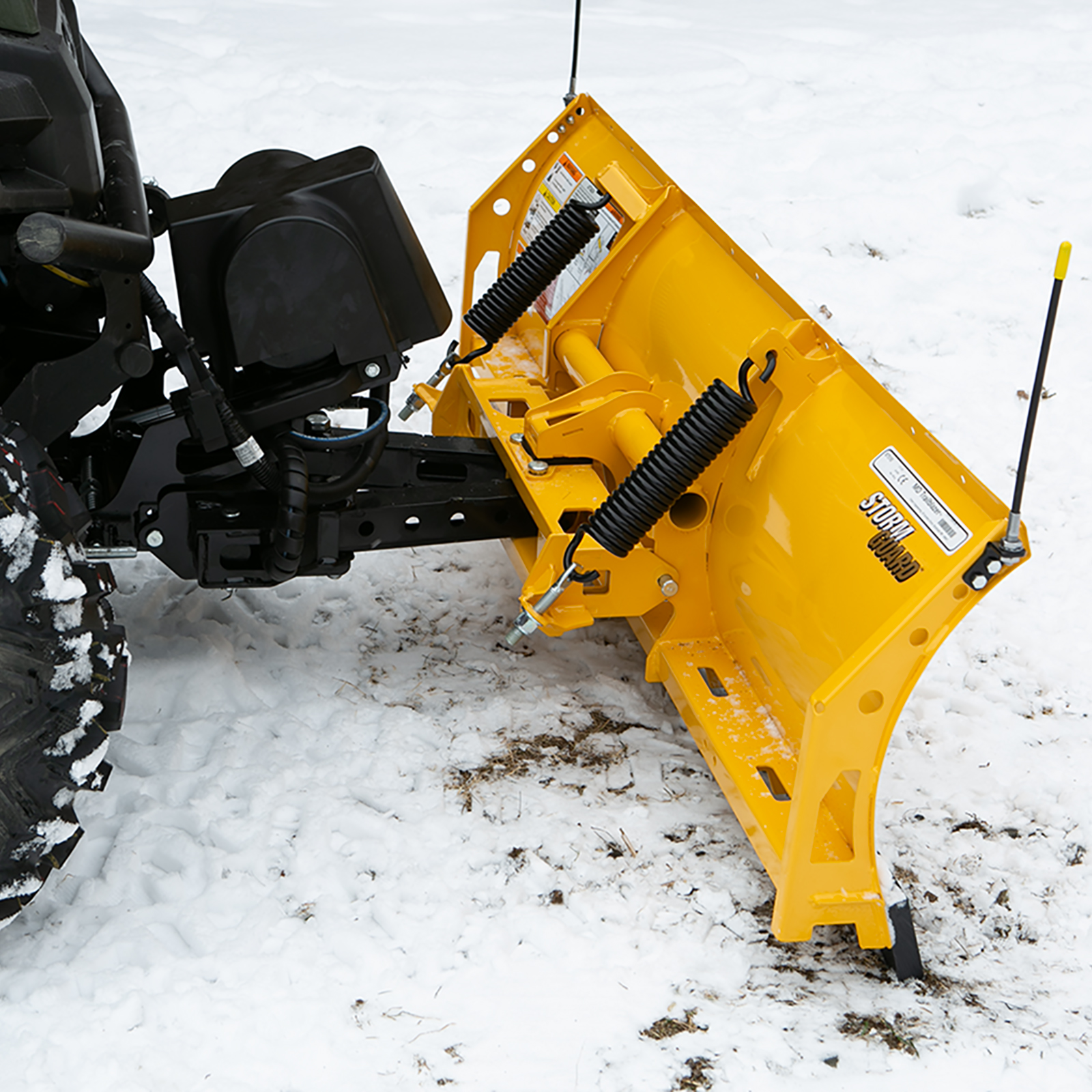

Two heavy-duty coil springs protect your plow and UTV by allowing the whole blade to trip when striking obstacles.

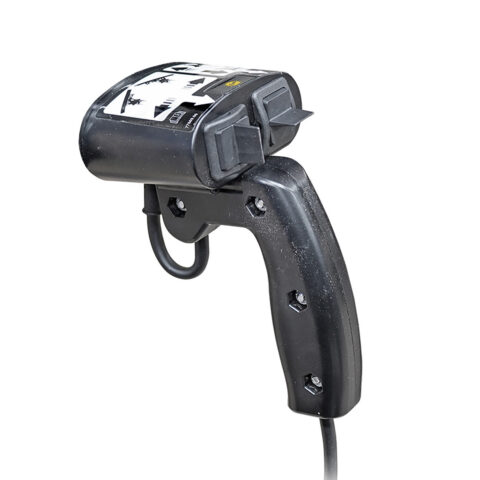

Weatherproof Plow Control*

The deluxe plow control is IP66-rated against moisture and offers hand-held or dash-mounted operation for added versatility. The weather-resistant control features large, durable switches which are easy to use-even with heavy gloves on.

*Available for hydraulic models only.

Universal Features

Featured Accessories

10" RUBBER DEFLECTOR

Dress up your blade and improve functionality with a genuine FISHER^® rubber deflector. Made from 2-ply, heavy-duty rubber and accented with the FISHER logo, this easy-to-install rubber deflector kit will provide improved visibility by deflecting snow forward instead of onto your windshield.

CUTTING EDGE - POLY

If the job requires a more gentle approach, we have you covered. Designed to be light weight yet extremely durable, this high-density polymer cutting edge is ideal for sensitive road surfaces such as pea stone and cobblestone.

HIGH-WEAR CUTTING EDGE

Keep your blade at the top of its game by installing a 3/8" cutting edge, fitting the same hole pattern as the standard 1/4" cutting edge. Made of tough, high-carbon steel, that will increase wear resistance and contact with the surface area.

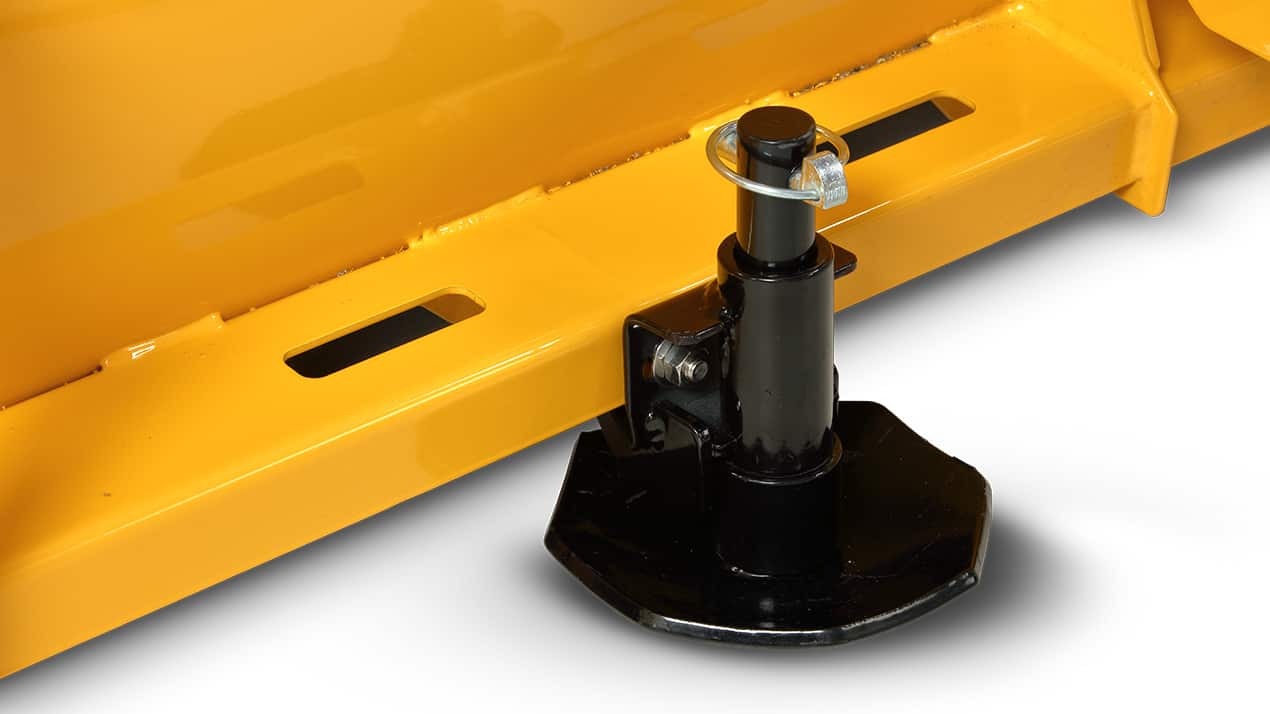

SHOE KIT

Ideal for dirt or crushed-stone surfaces, a shoe kit will provide you with the ability to adjust the scraping height of the blade. Genuine FISHER^® shoes are made of abrasion-resistant steel for maximum longevity and durability. Shoe kits include two shoes and all mounting hardware for easy installation.

CONTROL CUP HOLDER MOUNT

The Control Cup Holder Mount is designed to fit firmly in most vehicle cup holders. It's a genuine, factory-tough accessory specifically engineered to securely hold FISHER^® hand-held or joystick controls and all types of smart phone devices (not included with mount). This flexible gooseneck mount has a 360-degree rotation and ensures optimal, customizable positioning.

ROOFTOP STROBE LIGHTS

Outfit your plow truck with these top-of-the-line revolving lights! Manufactured by Whelen Engineering to strict FISHER^® specifications. Choose from full size strobe, mini bar, and mini strobe.

FREEZE GUARD™ GREASE

Specially formulated to protect moving components in arctic mining conditions, this grease is ideal for bearings, hinges and pivot bolts on snow and ice control equipment. The custom formula maintains viscosity from -40 up to 300 degrees, and military-grade, corrosion-prevention additives protect equipment from corrosion without harmful environmental impact. FREEZE GUARD^™ Grease is available in cartridges, pails, totes and drums.

Specifications

Models	5' 6"	6' 0"
Blade Width	5' 6"	6' 0"
Blade Width	1.68 m	1.83 m
Blade Height	19.67"	19.67"
Blade Height	50 cm	50 cm
Blade Gauge	16	16
Blade Gauge	0.15 cm	0.15 cm
Trip Springs	2	2
Trip Springs	2	2
Vertical Ribs	4	4
Vertical Ribs	4	4
Lift Cylinder* (Single Acting)	Hydraulic: 1.5" x 3" (one) Winch: N/A	Hydraulic: 1.5" x 3" (one) Winch: N/A
Lift Cylinder* (Single Acting)	Hydraulic: 3.8 cm x 7.6 cm Winch: N/A	Hydraulic: 3.8 cm x 7.6 cm Winch: N/A
Angling Rams* (Double Acting)	Hydraulic: 1.5" x 4" Winch: N/A	Hydraulic: 1.5" x 4" Winch: N/A
Angling Rams* (Double Acting)	Hydraulic: 3.8 cm x 10.2 cm Winch: N/A	Hydraulic: 3.8 cm x 10.2 cm Winch: N/A
Plowing Width	4' 11"	5' 4"
Plowing Width	1.50 m	1.63 m
Approx. Weight**	Hydraulic: 190 lb Winch: 175 lb	Hydraulic: 195 lb Winch: 180 lb
Approx. Weight**	Hydraulic: 86.2 kg Winch: 79.4 kg	Hydraulic: 88.5 kg Winch: 81.7 kg
Cutting Edge	¼" x 4"	¼" x 4"
Cutting Edge	0.6 cm x 10.2 cm	0.6 cm x 10.2 cm
Mount Type	Mid-Duty UTV Mounting System	Mid-Duty UTV Mounting System
Mount Type	Mid-Duty UTV Mounting System	Mid-Duty UTV Mounting System

*Lift Cylinder & Angling Ram only available for hydraulic models.
**Does not include vehicle mount weight. Please refer to the Quick Match program for specific vehicle applications.
