STEEL-CASTER^™

1.5 - 6.0 CU YD STAINLESS STEEL HOPPER SPREADER

ENGINEERED TO OWN THE ICE

STEEL-CASTER^™

1.5 - 6.0 CU YD STAINLESS STEEL HOPPER SPREADER

ENGINEERED TO OWN THE ICE

Truck Bed Spreader

The Proof to Back It Up

The FISHER^® STEEL-CASTER^™ stainless steel hopper spreaders were designed for efficiency and engineered for durability. Built with the experience of more than six decades of battling tough New England storms, the STEEL-CASTER hopper spreaders are available in six sizes, with more standard features and the latest advancements in technology, resulting in maximum material control and minimal waste.

Type of Spreader

Truck Bed

Unique Features

Dual Electric Motors
Power Options
Controls
Innovative Chute Design
Corrosion-Resistant Hopper
Shutter Deflector
Material Delivery
Spinner
Accessory Integration
Dump & Work Light Switches
Dual Swing Chute
Chute Assembly
Adjustable Feed Gate
Inverted V / Vibrator
Top Screen
Ratchet Straps
Additional Standard Features
FLEET FLEX

Dual Electric Motors

The two high-torque 12-volt electric motors provide quiet, reliable and independent control over the conveyor and spinner mechanisms. The spinner motor is sealed inside a weather-resistant housing, protecting it from corrosion, while the conveyor motor is completely sealed from the elements.

*Gas and hydraulic options also available

Power Options

In addition to the standard dual electric motors, the STEEL-CASTER™ stainless steel hopper spreader is available with the following gas and hydraulic power options:

Two Gas Powered Options: 10½ HP I/C Briggs & Stratton® motor or the 11 HP I/C Honda® motor.
Hydraulic Powered Option: With the most available power in its class, the hydraulic powered motor option offers dual variable speed control and reliable operation.

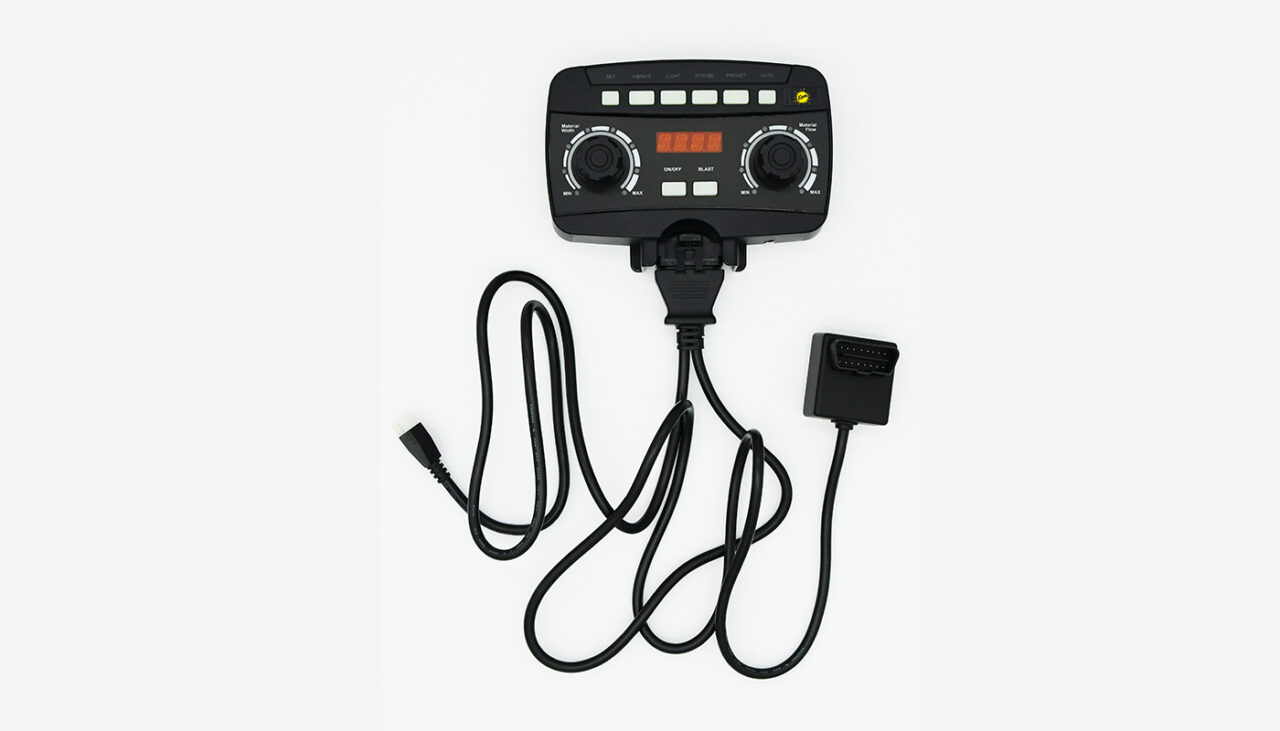

Controls

Dual Electric Motor Control
Enhanced dual variable-speed control allows you to precisely match material delivery and spread patterns to conditions.

Four standard accessory buttons and a dedicated blast button provide optimum in-cab efficiency.

Easy-to-understand, digital self-diagnostics alert the operator when the spreader is empty or when adjustments are needed, and LEDs make the control easy to read.

Its compact size compared to traditional controls fits easily into today’s modern truck cab designs.

Learn about Gas and Hydraulic Motor controls

Innovative Chute Design

Baffles within the chute deliver a consistent spread pattern that reduces material waste. By directing material to precise points on the spinner, it helps to cast it away from the truck rather than onto the back of your bumper.

Learn More

Corrosion-Resistant Hopper

Constructed from maintenance-free, corrosion-resistant stainless steel, the hopper is reinforced with welded joints, which wrap around for long-life and protection against stress.

Shutter Deflector

The easy-to-adjust circular shutter deflector allows directional spreading, providing optimal material control, while maintaining even coverage.

Learn More

Material Delivery

One of the widest in the industry, the 15 ½" pintle chain conveyor moves more material consistently and smoothly to help reduce bridging. Corrosion-resistant stainless steel guides provides extra protection and durability.

Spinner

An extra large 15 ½" polyurethane spinner delivers a spread pattern of up to 40' and provides long-lasting, corrosion-free performance.

Accessory Integration

Conveniently connect accessories directly into the hub mounted in the back of the hopper. Accessories automatically integrate with the hopper control without having to run additional wires from the front of the truck.

*Feature available on dual electric motor models only.

Dump & Work Light Switches

Operators can safely offload material or fill walk-behind spreaders by using the rear mounted conveyor dump switches. A third switch is also provided so that an accessory work light my be conveniently controled from not only the cab but also the rear of the hopper.

*Feature available on dual electric motor models only.

Dual Swing Chute

The dual swing chute design opens from either side to provide easy access for maintenance or material unloading.

Chute Assembly

For precise material application, the chute assembly can be configured for either pickup truck or flatbed and dump body applications, ensuring you're always spreading at the optimum height. An extended chute is standard on 9' and 10' models. An extension kit is available as an accessory only on 7' and 8' models.

For convenient access to the hitch, the chute assembly can be removed.

Adjustable Feed Gate

An adjustable feed gate provides additional control of material flow regardless of material type, reducing waste when traveling between sites.

Inverted V / Vibrator

An inverted V comes standard and helps keep sufficient material weight off of the conveyor, ensuring smooth startup and flow of material.

A vibrator kit is available as an accessory to help reduce bridging and keep material moving smoothly to the conveyor.

Top Screen

A steel top screen comes standard, which helps break up large chunks of de-icing material during the loading process to prevent clogging and bridging during spreader operation.

Ratchet Straps

Ratchet straps are provided standard for additional spreader stability. A chain tie-down kit is available as an accessory

Additional Standard Features

Tie-down points are included for strapping the hopper to the truck. For additional safety, bolting bars are also provided to attach the hopper to the vehicle and a Center High-Mounted Stop Light (CHMSL) is standard.

FLEET FLEX

The STEEL-CASTER™ hopper spreader is designed with FLEET FLEX technology for easy interchangeability between electric hopper spreaders without having to change the wiring or the controls.

It provides easy operation, increased reliability, simple wiring and easy installation. Additionally, accessories automatically integrate into the control for easy plug and play.

*Feature available on dual electric motor models only.

Featured Accessories

PRE-WET SYSTEM

The pre-wet system accessory allows the operator to activate deicing material by applying a liquid deicing agent directly on the material prior to leaving the hopper, providing you with increased material efficiency and superior ice control.

*Additional tank kits are not compatible with a vibrator

Learn More

POLY LID KIT

Shields de-icing material from the elements, locks out moisture to prevent material bridging and protects against material overflow while loading. Not compatible with side extension accessory.

SPILL GUARD KIT

Available in 50" and 70" widths to cover the full range of STEEL-CASTER^™ hopper spreaders, the Spill Guard Kit provides the loader with an improved line of sight to the hopper edges, while preventing material from overflowing into the bed of the truck from off-center loading. Spill Guards not compatible with 6” Side Extensions or Poly Lid Kit.

LICENSE PLATE KIT

Stay legal with our quality illuminated License Plate Kit. This genuine FISHER^® license plate kit has been specifically designed for your hopper and allows you to move your license plate to a spot that is visible and legally compliant.

STROBE LIGHT KIT

Make sure you're seen, day or night, with our complete hopper Strobe Light system. Constructed from high impact plastic, and rated beyond -20º F, this yellow LED strobe system has been designed to last and will ensure that you're seen in even the worst of conditions.

VIBRATOR KIT

Designed to help move stubborn material and prevent bridging, a genuine FISHER^® Vibrator system will ensure that less-than-ideal material, which is prone to bridging and clogging, will not hold you up when you need to be on the move.

WORK LIGHT KIT

A genuine FISHER^® Work Light system will grant you increased visibility at the rear of your spreader. Encased in anodized aluminum, and rated beyond -20º F, this LED Work Light system projects over 1000 lumens to help you monitor material distribution and illuminate potential hazards while backing up.

SECONDARY WORK LIGHT KIT

Take it up a notch with a genuine FISHER^® secondary work light kit. Designed to integrate with our work light kit (99505-1), this accessory kit will provide an addition 1000 lumens of light on the opposite side of your FISHER spreader.

6" SIDE EXTENSIONS

Increase the capacity of your STEEL-CASTER™ hopper spreader with this 6" Side Extensions Kit. The increase in capacity will vary depending on the size of your spreader; increased material capacity will vary from .5 to 1 yard. Each kit contains the corner brackets, hardware and installation instructions, but does not provide the side board material.

CENTRAL POINT GREASE KIT

The Central Point Grease Kit provides easy access to grease points, simplifying preventative maintenance greasing that is essential to maximize bearing life.

TIE-DOWN CHAIN KIT

A Tie-Down Chain Kit provides additional in-bed stability and security. 72 inches of high-strength steel chain and binder allow you to add an extra measure of safety as you move tons of material down the road. Each kit contains four chain binder assemblies. (Hoppers require bolting to the truck frame for proper operator safety.)

MASTER ACCESSORY HARNESS

Integrate all your accessories with this convenient kit. Includes all the wiring needed to go from cab to spreader, an in-cab control panel, and rear of hopper storage for accessory fuses and relays, allowing total integration of our plug and play accessories. Hydraulic model master accessory harness kit shown.

VEHICLE-SIDE HARNESS KIT

The Vehicle-Side Harness Kit contains components to replace harnessing on the truck or wire a second truck to operate the spreader.

SPREADER CONTROL ADAPTER PLATE

Gain the flexibility and easy installation benefits of the cup holder control mount with every spreader installation using the new Spreader Control Adapter Plate Kit. Kit contains a durable metal mounting plate and hardware.

Control Cup Holder Mount not included, order separately (#82006).

CONTROL CUP HOLDER MOUNT

The Control Cup Holder Mount is designed to fit firmly in most vehicle cup holders (plow control featured in image). It's a genuine, factory-tough accessory specifically engineered to securely hold FISHER^® hand-held or joystick controls and all types of smart phone devices (not included with mount). This flexible gooseneck mount has a 360-degree rotation and ensures optimal, customizable positioning. Now compatible with spreader controls using a Spreader Control Adapter Plate, order separately (#82018).

DIELECTRIC GREASE

Keep your FISHER^® plow running strong. Apply our specially formulated dielectric grease after each use to prevent corrosion caused by electrolysis and highly corrosive de-icing agents.

FREEZE GUARD™ GREASE

Specially formulated to protect moving components in arctic mining conditions, this grease is ideal for bearings, hinges and pivot bolts on snow and ice control equipment. The custom formula maintains viscosity from -40 up to 300 degrees, and military-grade, corrosion-prevention additives protect equipment from corrosion without harmful environmental impact. FREEZE GUARD^™ Grease is available in cartridges, pails, totes and drums.

Specifications

Models	1.5 cu yd	2.0 cu yd	3.0 cu yd	4.5 cu yd	4.5 cu yd	6.0 cu yd
Body Side Length	7'	8'	9'	9'	10'	10'
Body Side Length	2.13 m	2.44 m	2.74 m	2.74 m	3.05 m	3.05 m
Capacity	1.5 cu yd	2.0 cu yd	3.0 cu yd	4.5 cu yd	4.5 cu yd	6.0 cu yd
Capacity	1.15 cu m	1.53 cu m	2.29 cu m	3.44 cu m	3.44 cu m	4.59 cu m
Hopper Construction	16 ga SS	16 ga SS	16 ga SS	16 ga SS	16 ga SS	16 ga SS
Hopper Construction	1.5 mm SS	1.5 mm SS	1.5 mm SS	1.5 mm SS	1.5 mm SS	1.5 mm SS
Hopper Dimensions (LxWxH)	84" x 50" x 33 ¼"	96" x 50" x 33 ¼"	108" x 50" x 40 ¾"	108" x 70" x 45"	119" x 70" x 45"	119" x 70" x 52 ½"
Hopper Dimensions (LxWxH)	213.4 cm x 127 cm x 84.5 cm	243.8 cm x 127 cm x 84.5 cm	274.3 cm x 127 cm x 103.5 cm	274.3 cm x 177.8 cm x 114.3 cm	302.3 cm x 177.8 cm x 114.3 cm	302.3 cm x 177.8 cm x 133.4 cm
Dimensions Overall (LxWxH)	105" x 50" x 51"	117" x 50" x 51"	129" x 50" x 70 ½"	129" x 70" x 74 ¾"	141" x 70" x 74 ¾"	141" x 70" x 82 ¼"
Dimensions Overall (LxWxH)	266.7 cm x 127 cm x 129.5 cm	297.2 cm x 127 cm x 129.5 cm	327.7 cm x 127 cm x 179.1 cm	327.7 cm x 177.8 cm x 189.9 cm	358.1 cm x 177.8 cm x 189.9 cm	358.1 cm x 177.8 cm x 208.9 cm
Min. Bed Length	62 ½"	74 ½"	91"	91"	102"	102"
Min. Bed Length	158.8 cm	189.2 cm	231.1 cm	231.1 cm	259.1 cm	259.1 cm
Approx. Weight (Empty) Dual 12V DC Sealed Motors	595 lb	615 lb	695 lb	815 lb	--	--
Approx. Weight (Empty) Dual 12V DC Sealed Motors	269.89 kg	278.96 kg	315.25 kg	369.68 kg	--	--
Approx. Weight (Empty) Gas 10.5 hp I/C Briggs & Stratton^®	--	740 lb	820 lb	940 lb	965 lb	1,010 lb
Approx. Weight (Empty) Gas 10.5 hp I/C Briggs & Stratton^®	--	335.66 kg	371.95 kg	426.38 kg	437.72 kg	458.13 kg
Approx. Weight (Empty) Gas 11 hp I/C Honda^®	--	740 lb	820 lb	940 lb	965 lb	1,010 lb
Approx. Weight (Empty) Gas 11 hp I/C Honda^®	--	335.66 kg	371.95 kg	426.38 kg	437.72 kg	458.13 kg
Approx. Weight (Empty) Dual Hydraulic Motors	--	615 lb	695 lb	815 lb	840 lb	885 lb
Approx. Weight (Empty) Dual Hydraulic Motors	--	278.96 kg	315.25 kg	369.68 kg	381.02 kg	401.43 kg
Conveyor Width	15 ½"	15 ½"	15 ½"	15 ½"	15 ½"	15 ½"
Conveyor Width	40 cm	40 cm	40 cm	40 cm	40 cm	40 cm
Spinner Size	15 ½"	15 ½"	15 ½"	15 ½"	15 ½"	15 ½"
Spinner Size	40 cm	40 cm	40 cm	40 cm	40 cm	40 cm
Spreading Width	Up to 40'	Up to 40'	Up to 40'	Up to 40'	Up to 40'	Up to 40'
Spreading Width	Up to 12.19 m	Up to 12.19 m	Up to 12.19 m	Up to 12.19 m	Up to 12.19 m	Up to 12.19 m
Materials	Salt, Sand, Salt/Sand Mix	Salt, Sand, Salt/Sand Mix	Salt, Sand, Salt/Sand Mix	Salt, Sand, Salt/Sand Mix	Salt, Sand, Salt/Sand Mix	Salt, Sand, Salt/Sand Mix
Materials	Salt, Sand, Salt/Sand Mix	Salt, Sand, Salt/Sand Mix	Salt, Sand, Salt/Sand Mix	Salt, Sand, Salt/Sand Mix	Salt, Sand, Salt/Sand Mix	Salt, Sand, Salt/Sand Mix
Vehicle Application	3/4- & 1-Ton Pickup Trucks	3/4- & 1-Ton Pickup Trucks	Dump Body or Flatbed Trucks (Over 15,000 lb GVWR)	Dump Body or Flatbed Trucks (Over 15,000 lb GVWR)	Dump Body or Flatbed Trucks (Over 15,000 lb GVWR)	Dump Body or Flatbed Trucks (Over 15,000 lb GVWR)
Vehicle Application	3/4- & 1-Ton Pickup Trucks	3/4- & 1-Ton Pickup Trucks	Dump Body or Flatbed Trucks (Over 15,000 lb GVWR)	Dump Body or Flatbed Trucks (Over 15,000 lb GVWR)	Dump Body or Flatbed Trucks (Over 15,000 lb GVWR)	Dump Body or Flatbed Trucks (Over 15,000 lb GVWR)
