STORM BOXX™ HX
TRACE™ Edge
Technology
Hydraulic-Wing Pusher Plows
Quick Specs
Select a model:
- 8' x 30" Blade Size
- 2,633 lb Approx. Weight
- 8' x 36" Blade Size
- 2,728 lb Approx. Weight
- 10' x 30" Blade Size
- 2,870 lb Approx. Weight
- 10' x 36" Blade Size
- 2,922 lb Approx. Weight
- 12' x 30" Blade Size
- 3,050 lb Approx. Weight
- 12' x 42" Blade Size
- 3,297 lb Approx. Weight
- 14' x 30" Blade Size
- 3,417 lb Approx. Weight
- 14' x 42" Blade Size
- 3,766 lb Approx. Weight
- 16' x 30" Blade Size
- 3,651 lb Approx. Weight
- 16' x 42" Blade Size
- 3,955 lb Approx. Weight
- Fits: Skid-Steers, Tractors & Wheel Loaders
Verify compatibility and part number information
ADAPT TO ANY ENVIRONMENT
From scooping and stacking, to windrowing and plowing along curbs or in wide open spaces, the FISHER® STORM BOXX™ HX hydraulic wing pusher plow gets it done. The advanced TRACE™ edge technology provides a cleaner scrape on even the most challenging surfaces through 2’ independent cutting edge sections that contour to the plowable surface. Gain total control with the exclusive, 3’ hydraulic wings that can be independently controlled to scoop, windrow, or push with precision.
Compatible with Skid-Steers, Tractors & Wheel Loaders
Unique Features
Pusher Construction
- 30″, 36″, and 42″ tall pushers available in 8′, 10′, 12′, 14′ & 16′ widths
- 12-gauge, powder-coated steel
- 2′ cutting edge sections made of high-carbon steel with carbide inserts (TRACE)
- Hydraulic wings with 180-degree placement (front and back)
- Aggressive 84-degree attack angle ensures a clean scrape and back drag
Structural Reinforcement
- 2 vertical ribs (per 2’ section) eliminate blade twisting and reduce stress on pusher assembly
- 2 reinforced horizontal tubes connect the ribs and provide exceptional torsional strength and rigidity
- 2’ cutting edge sections independently raise, oscillate, and trip
The terrain-response advanced cutting edge is comprised of independent, 2’ sections that raise, oscillate, and trip to accommodate contours and obstacles in the plowable surface. Working together, the sections remove more snow, reducing the amount of salt required.
3′ wing sections raise and oscillate to ensure the wing extensions provide a clean scrape similar to the main cutting edge. A ¾” carbide cutting edge provides the durability needed for tough, commercial plowing applications.

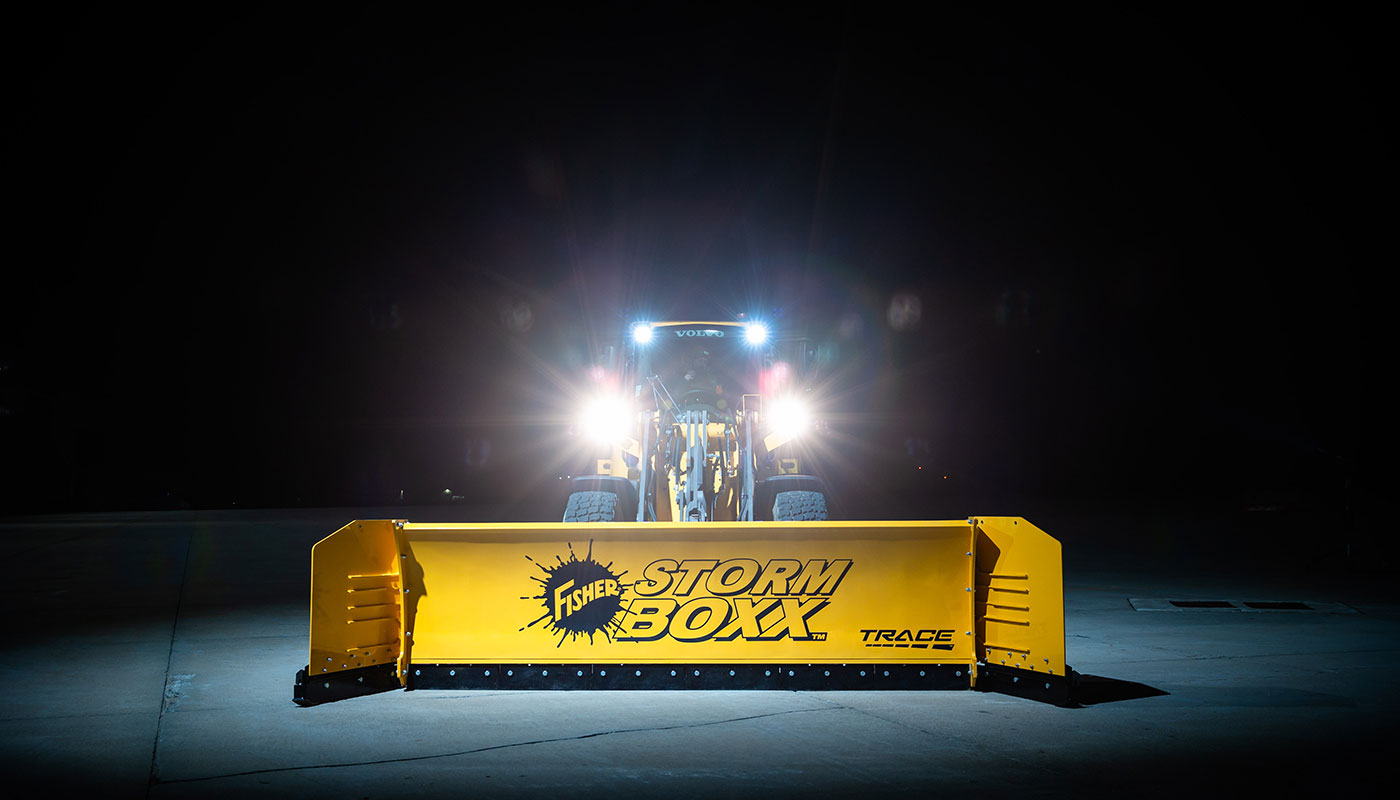

Hydraulically-actuated, 3′ wings can be moved into countless configurations within the 180 degree path of travel. Both wings move independently and can be placed into any configuration the operator needs. When both wings are fully open, 6′ is added to the overall plow width.
The level gauge helps to visually guide the operator to level the pusher plow properly from inside the machinery.
The STORM BOXX HX pusher plows perform in the most grueling commercial conditions. Each 2′ section comes standard with a ¾” cutting edge with carbide insert and uses the same part number for easy replacement. The 2′ sections are common across all STORM BOXX models, reducing complexity and increasing fleet interchangeability. And there’s no need to replace the full cutting edge, only the sections that show wear, saving you time and money.
Operation of the STORM BOXX HX pusher plow is conveniently tied into the equipment’s controls. Simply raise and lower the lift arm and angle the attachment plate to position the pusher in the correct orientation. Hydraulic wings are controlled through the vehicle’s auxiliary hydraulic functions.
Installation is made easy with a wide variety of equipment and machinery, including skid-steers, wheel loaders, and tractors. Vehicle-specific mounts are available from Fisher Engineering to ensure proper installation.

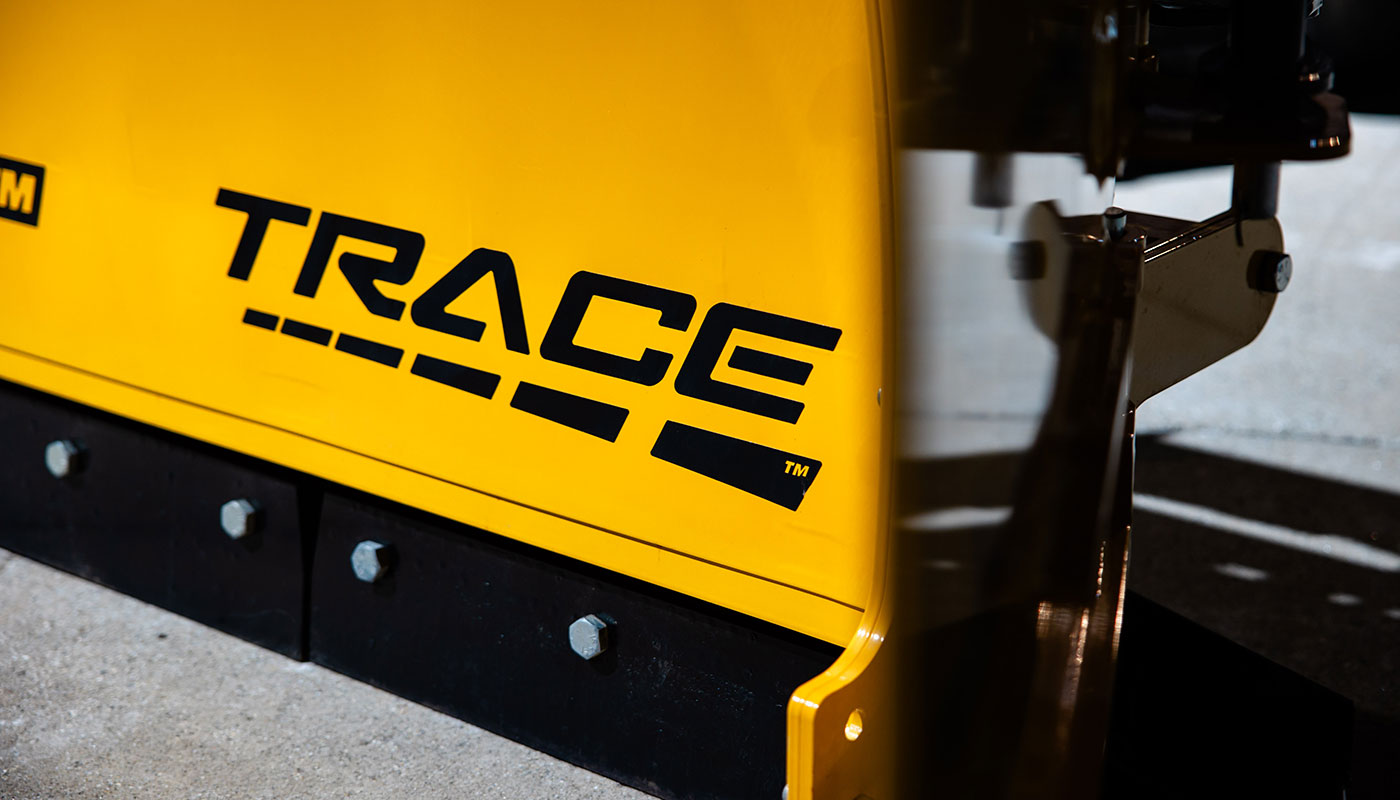

TRACE™ Edge Technology
The terrain-response advanced cutting edge is comprised of independent, 2’ sections that raise, oscillate, and trip to accommodate contours and obstacles in the plowable surface. Working together, the sections remove more snow, reducing the amount of salt required.

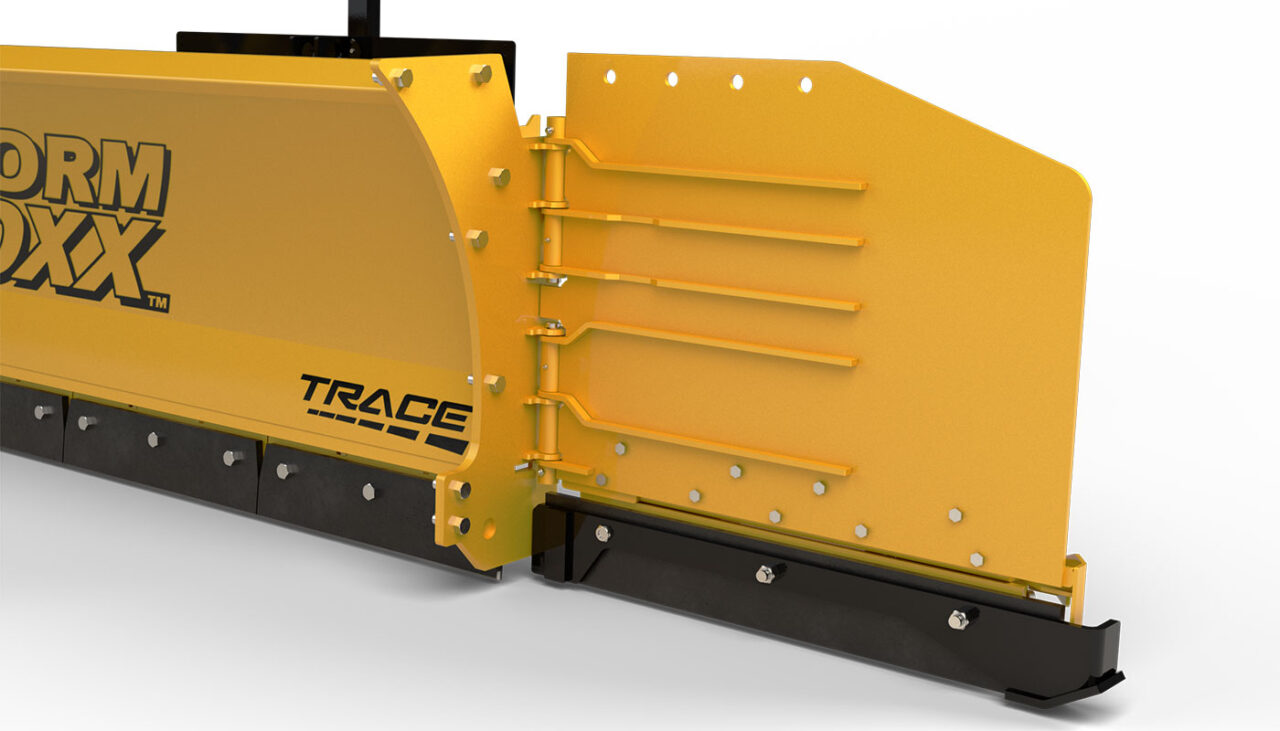

TRACE Wing Technology
3′ wing sections raise and oscillate to ensure the wing extensions provide a clean scrape similar to the main cutting edge. A ¾” carbide cutting edge provides the durability needed for tough, commercial plowing applications.

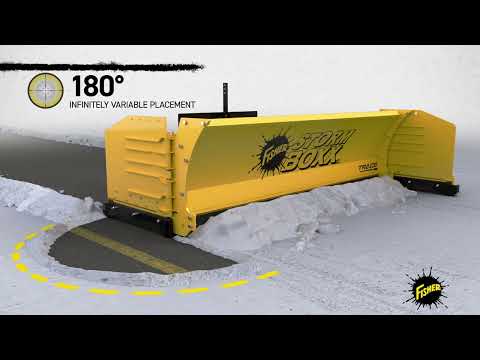

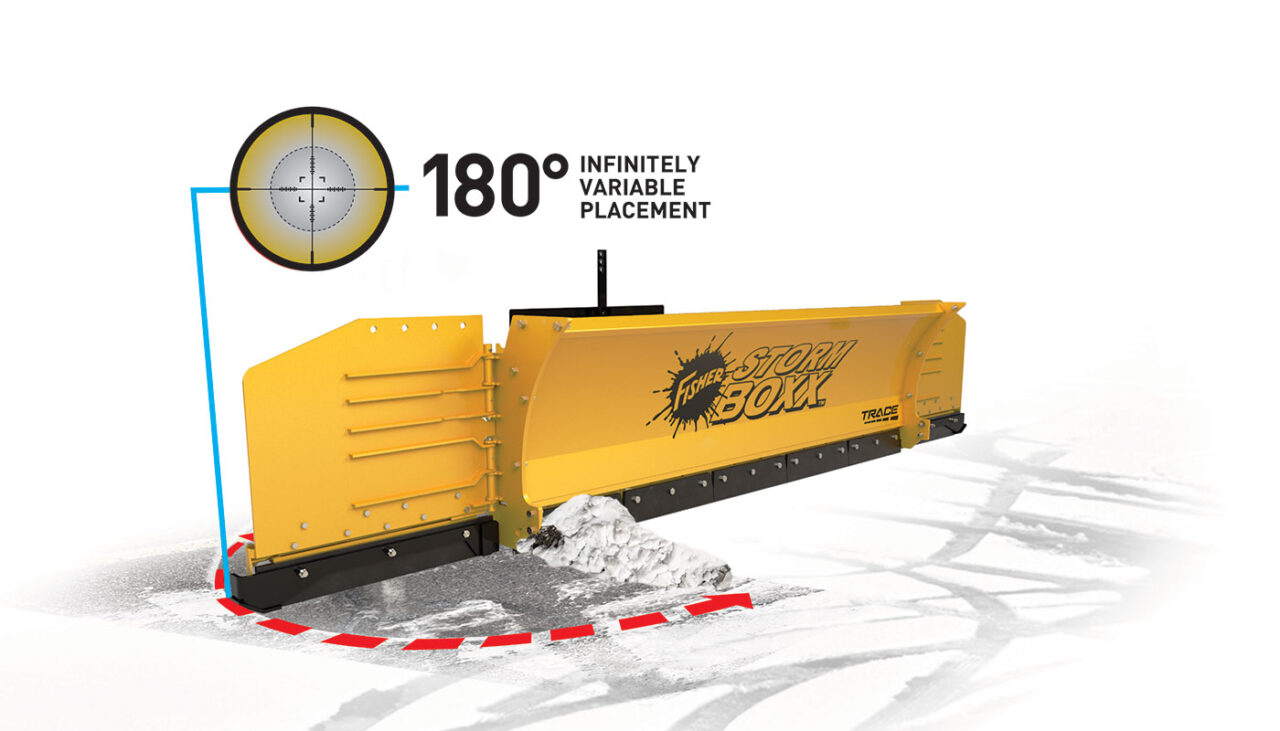

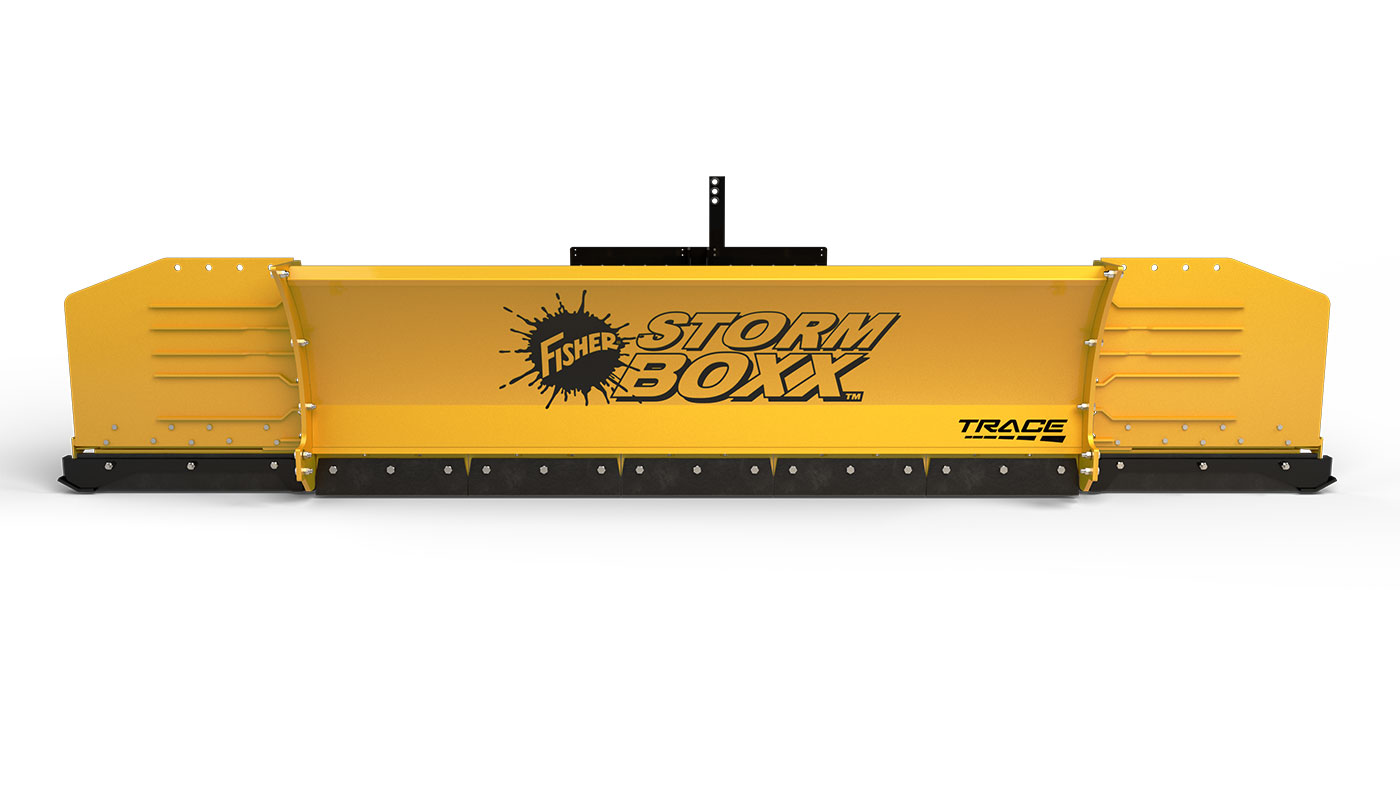

180 Degree Infinitely Variable Wing Placement
Hydraulically-actuated, 3′ wings can be moved into countless configurations within the 180 degree path of travel. Both wings move independently and can be placed into any configuration the operator needs. When both wings are fully open, 6′ is added to the overall plow width.
Level Gauge
The level gauge helps to visually guide the operator to level the pusher plow properly from inside the machinery.
3/4" Cutting Edge With Carbide Inserts
The STORM BOXX HX pusher plows perform in the most grueling commercial conditions. Each 2′ section comes standard with a ¾” cutting edge with carbide insert and uses the same part number for easy replacement. The 2′ sections are common across all STORM BOXX models, reducing complexity and increasing fleet interchangeability. And there’s no need to replace the full cutting edge, only the sections that show wear, saving you time and money.

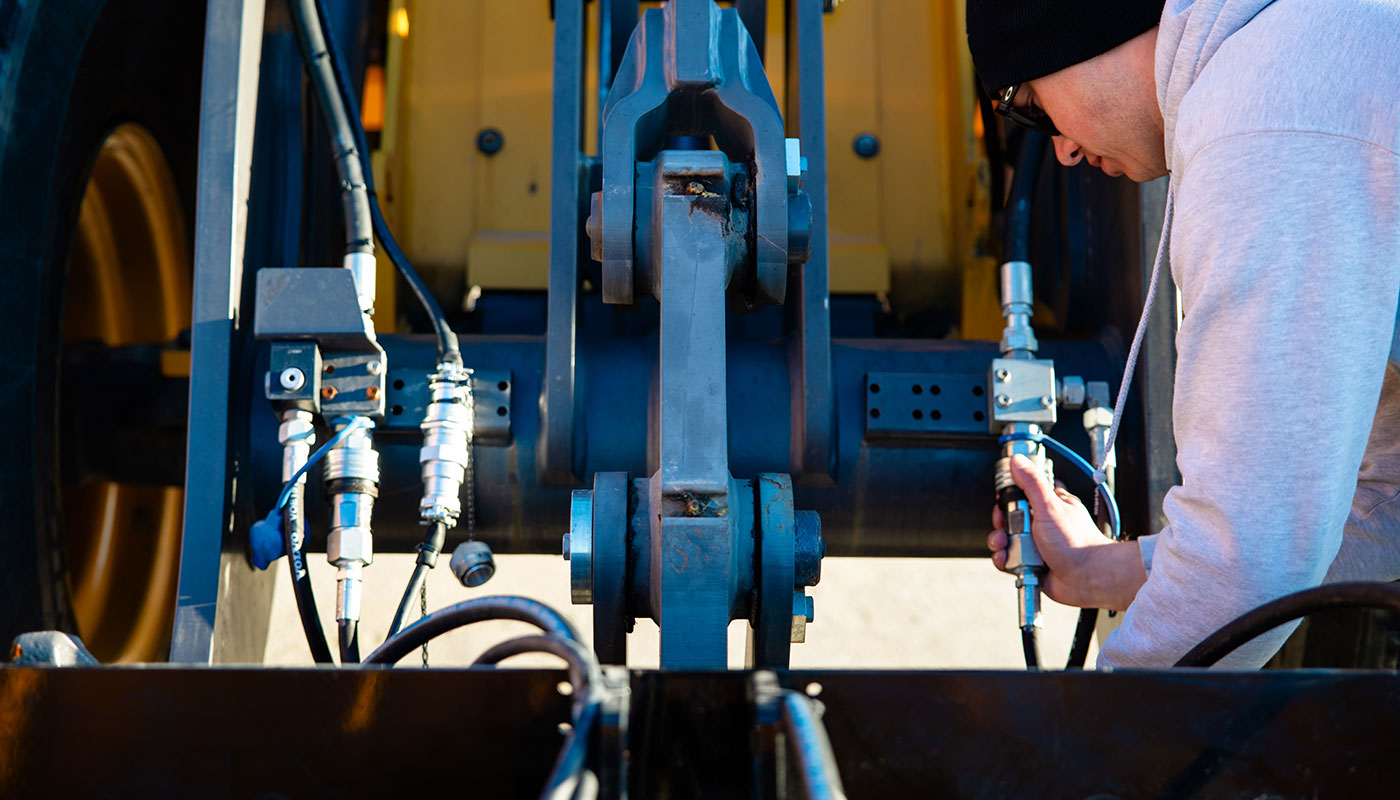

Easy Operation
Operation of the STORM BOXX HX pusher plow is conveniently tied into the equipment’s controls. Simply raise and lower the lift arm and angle the attachment plate to position the pusher in the correct orientation. Hydraulic wings are controlled through the vehicle’s auxiliary hydraulic functions.

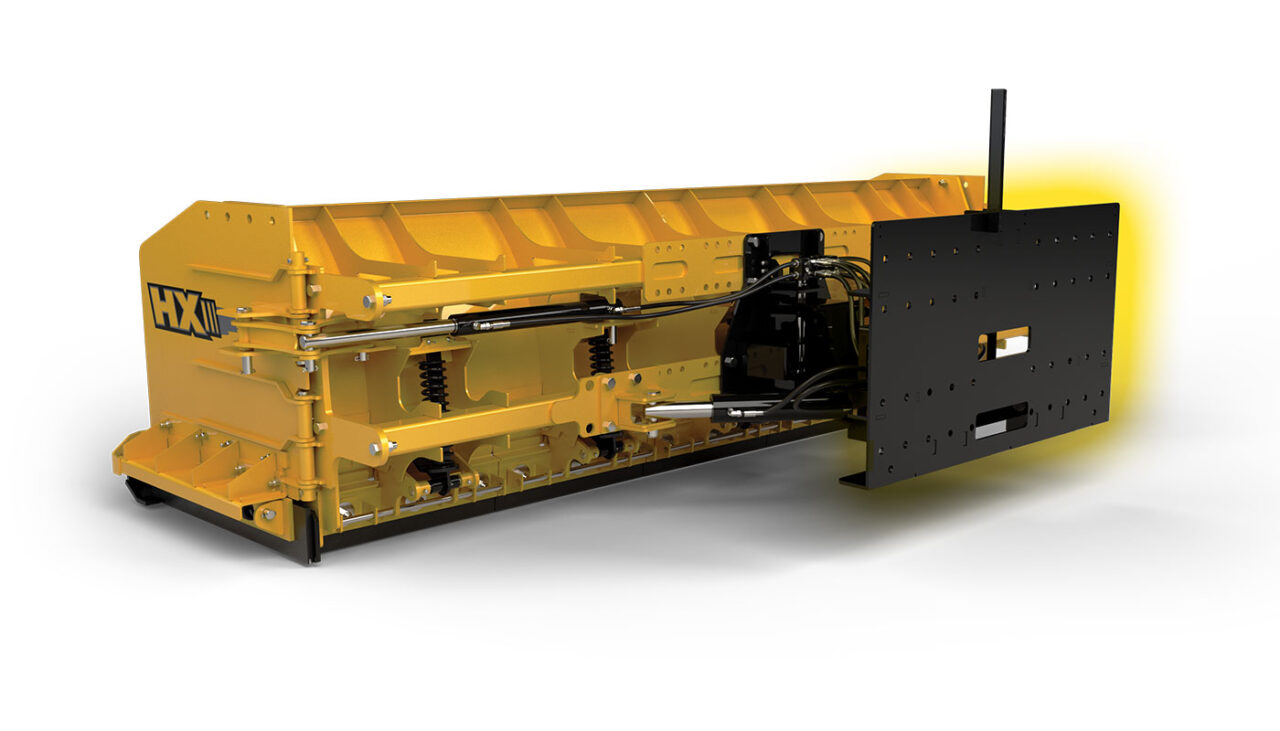

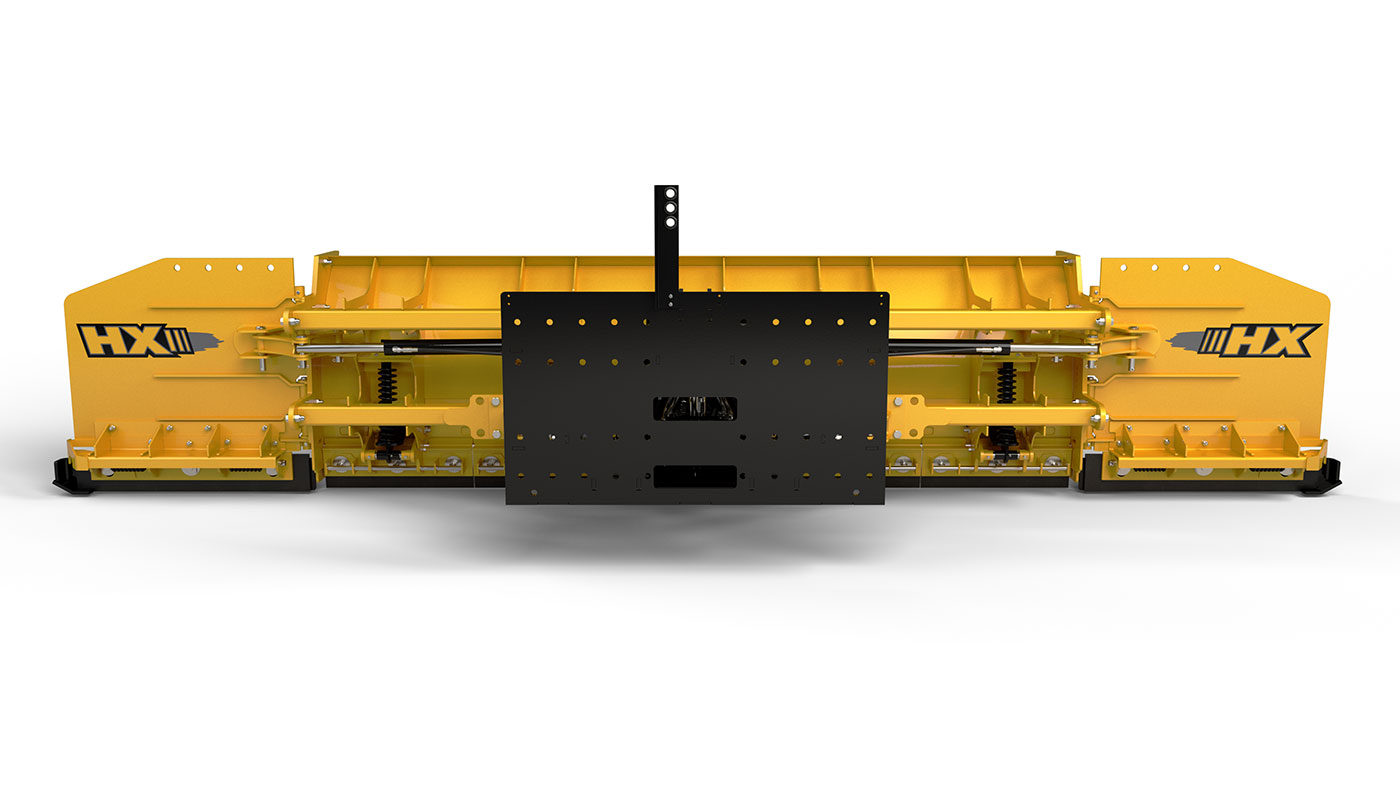

Common Attachment Plate
Installation is made easy with a wide variety of equipment and machinery, including skid-steers, wheel loaders, and tractors. Vehicle-specific mounts are available from Fisher Engineering to ensure proper installation.
Specifications
Selecting a model updates product features and specs below.
| Specification | 32708-3 | 32308-2 | 32710-3 | 32310-2 | 32614-3 | 32312-3 | 32594-3 | 32314-3 | 32596-3 | 32316-3 |
|---|---|---|---|---|---|---|---|---|---|---|
| Blade Size | 8' x 30" | 8' x 36" | 10' x 30" | 10' x 36" | 12' x 30" | 12' x 42" | 14' x 30" | 14' x 42" | 16' x 30" | 16' x 42" |
| Approx. Weight | 2,633 lb | 2,728 lb | 2,870 lb | 2,922 lb | 3,050 lb | 3,297 lb | 3,417 lb | 3,766 lb | 3,651 lb | 3,955 lb |
| Application Weight (Max Operating Weight) | 8,000 lb | 10,000 lb | 9,000 lb | 12,000 lb | 25,000 lb | 25,000 lb | 25,000 lb | 30,000 lb | 25,000 lb | 36,000 lb |
| Blade Width | 8' | 8' | 10' | 10' | 12' | 12' | 14' | 14' | 16' | 16' |
| Blade Height | 30" | 36" | 30" | 36" | 30" | 42" | 30" | 42" | 30" | 42" |
| Side Plate Width | 36" | 36" | 36" | 36" | 36" | 36" | 36" | 36" | 36" | 36" |
| Side Plate Height | 30" | 36" | 30" | 36" | 30" | 42" | 42" | 42" | 42" | 42" |
| Moldboard Radius | 27" | 27" | 27" | 27" | 27" | 46" | 27" | 46" | 27" | 46" |
| Approx. Snow Capacity | 75 cu ft | 108 cu ft | 94 cu ft | 135 cu ft | 113 cu ft | 219 cu ft | 132 cu ft | 250 cu ft | 151 cu ft | 280 cu ft |
| Specification | 32708-3 | 32308-2 | 32710-3 | 32310-2 | 32614-3 | 32312-3 | 32594-3 | 32314-3 | 32596-3 | 32316-3 |
|---|---|---|---|---|---|---|---|---|---|---|
| Moldboard Options | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel |
| Blade Type | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher |
| Vehicle Compatibility | Skid-Steer | Tractor / Wheel Loader | Skid-Steer | Tractor / Wheel Loader |
Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors |
Tractor / Wheel Loader |
Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors |
Wheel Loader |
Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors |
Wheel Loader |
| Horsepower Compatibility | 45+ hp (Skid-Steer) | 40+ hp (Tractor) & 60+ hp (Wheel Loader & Backhoe) | 60+ hp (Skid-Steer) | 50+ hp (Tractor) & 60+ hp (Wheel Loader & Backhoe) |
40+ hp (Tractor) 60+ hp (Wheel Loader) |
100+ hp (Wheel Loader & Backhoe) |
40+ hp (Tractor) 60+ hp (Wheel Loader) |
140+ hp (Wheel Loader & Backhoe) |
40+ hp (Tractor) 60+ hp (Wheel Loader) |
140+ hp (Wheel Loader & Backhoe) |
| Cutting Edge Technology | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge |
| Cutting Edge Material | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts |
| Mount Type | Skid-Steer Attach Plate | Skid-Steer Attach Plate / Coupler | Skid-Steer Attach Plate | Skid-Steer Attach Plate / Coupler | Coupler | Coupler | Coupler | Coupler | Coupler | Coupler |
