STORM BOXX^™

12', 14' & 16' PUSHER PLOWS

PUSHING THROUGH THE IMPOSSIBLE

STORM BOXX^™

12', 14' & 16' PUSHER PLOWS

PUSHING THROUGH THE IMPOSSIBLE

Snowplow Pusher

Put Winter In Its Place

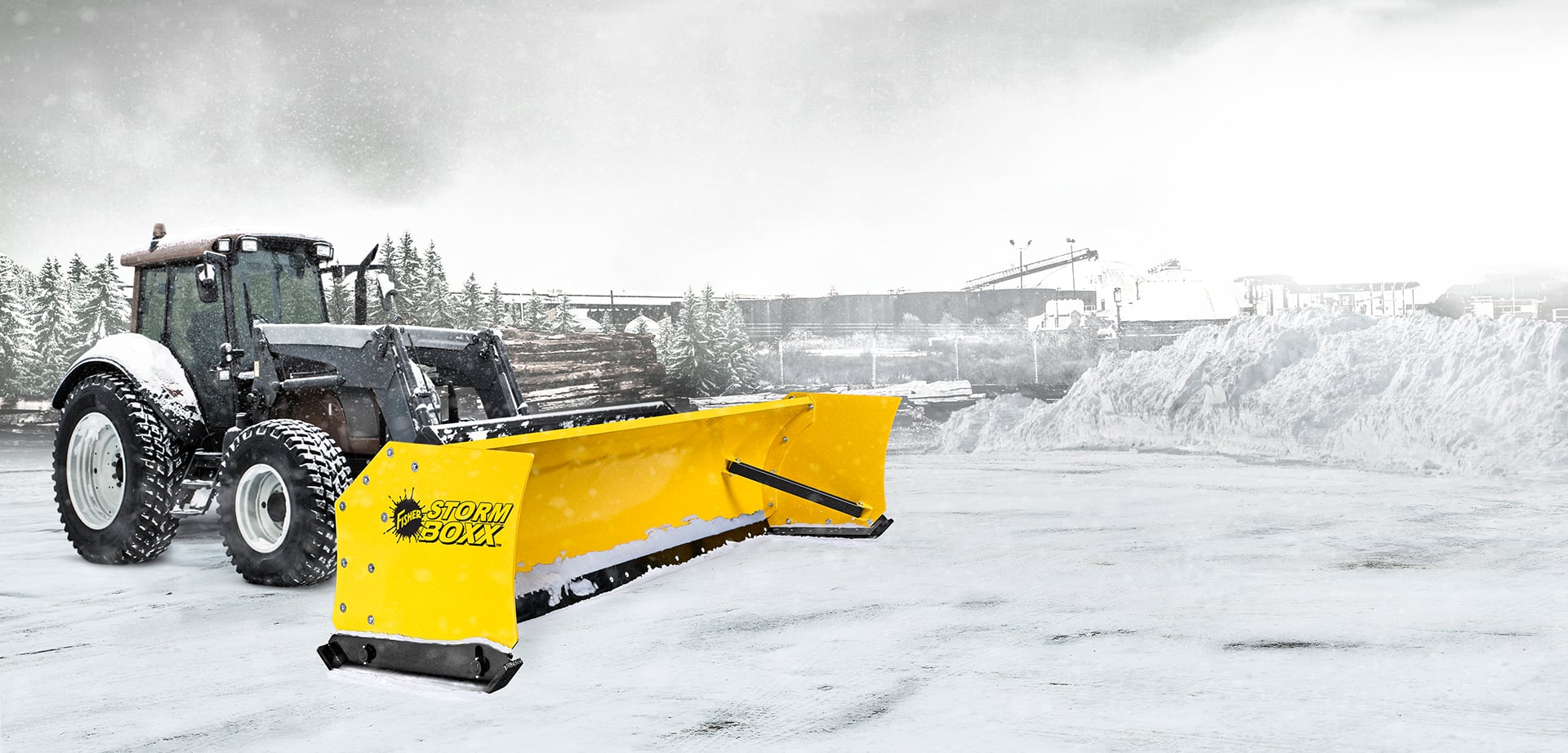

The FISHER^® 12′, 14′ and 16′ STORM BOXX^™ pusher box plows feature a two-piece, steel trip-edge design that delivers a cleaner scrape for hard-packed snow and ice—all while protecting operators and their equipment when encountering hidden obstacles. The containment plows attach quickly and easily to backhoes, wheel loaders or tractors by using bolt-on, interchangeable attachment plates. The STORM BOXX box plow goes the distance.

Type of Snowplow

Pusher

Unique Features

Plow Blade Construction
Structural Support
Two-Piece, Steel Trip-Edge
Interchangeable Attachments
Floating Attachment Plates
Floating Shoes

Plow Blade Construction

The 12', 14' and 16' STORM BOXX™ steel edge pusher plows come equipped with an enhanced, heavy-duty blade design. With 10-gauge steel moldboards for superior strength, the pusher plows measure 40 ½" tall, and feature an optimized 67-degree angle of attack. The premium, high-gloss paint helps resist corrosion.

Structural Support

The STORM BOXX™ pusher plows features multiple structural-steel channels that run across the length of the entire blade and is internally lined with stiffener ribs to provide structural integrity and bucket-impact strength.

Two-Piece, Steel Trip-Edge

The two-piece, steel trip-edge design provides a cleaner scrape for hard-packed snow while protecting you and your equipment from hidden obstacles. The steel trip-edge is constructed with eight or twelve extension springs, depending on the blade width, and is reinforced with additional ribs at the trip springs to handle large snow loads and stresses. The steel cutting edge is center-punched, which means it can be flipped, resulting in improved service life.

Interchangeable Attachments

Interchangeable attachments offer the flexibility to quickly and easily attach the pushers to various pieces of equipment within a fleet including tractors, backhoes and wheel loaders.

Floating Attachment Plates

The floating attachment plates allow side-to-side movement and smooth out bumps, keeping the pusher in contact with the surface at all times.

Floating Shoes

Designed to keep the cutting edge level on uneven surfaces to maintain a clean scrape and a more even cutting edge wear.

Specifications

Models	12'	14'	16'
Blade Width	12'	14'	16'
Blade Width	3.66 m	4.27 m	4.88 m
Blade Height	40 ½"	40 ½"	40 ½"
Blade Height	102.87 cm	102.87 cm	102.87 cm
Capacity	8 ½ cu yd	10 cu yd	11 ½ cu yd
Capacity	6.50 cu m	7.65 cu m	8.79 cu m
Machine Application	Wheel Loader, Backhoe, Tractor	Wheel Loader, Backhoe, Tractor	Wheel Loader, Backhoe, Tractor
Machine Application	Wheel Loader, Backhoe, Tractor	Wheel Loader, Backhoe, Tractor	Wheel Loader, Backhoe, Tractor
Steel Trip-Edge	Standard	Standard	Standard
Steel Trip-Edge	Standard	Standard	Standard
Approx. Weight	2,128 lb	2,275 lb	2,512 lb
Approx. Weight	965.24 kg	1,031.92 kg	1,139.42 kg
Mount Type	Interchangeable Attachments	Interchangeable Attachments	Interchangeable Attachments
Mount Type	Interchangeable Attachments	Interchangeable Attachments	Interchangeable Attachments
Horsepower Compatibility	70+ hp	85+ hp	100+ hp
Horsepower Compatibility	70+ hp	85+ hp	100+ hp
